80kva 3 Phase Step Up Power Transformers 415v to 11kv

With an input voltage of 415 volts and an output voltage of 11 kilovolts , 80kva 3 phase step up power transformers 415v to 11kv is a boost transformer. Wenzhou Xifa Electric Power Equipment Co., Ltd. manufacture it by employing advanced technology and high quality materials. The core thin layer rolled silicon steel sheet can reduce energy loss. The windings use large coil insulation copper wires, which ensures that it will have reliable performance and a long service life.

Send Inquiry

Product Description

80kva 3 phase step up power transformers 415v to 11kv receives the low-voltage alternating current of 415V by the primary winding.The magnetic field is concentrated and directed from the primary winding to the secondary winding through the laminated iron core, and a high voltage alternating current of 11kV is output with relatively low loss.

80kva 3 phase step up power transformers 415v to 11kv is mainly used for long distance power transmission, grid connection of photovoltaic/wind power, and industrial high voltage power supply. The common types include oil immersed, copper windings, and Dyn11 connection, which comply with IEC 60076/GB 1094 standards.

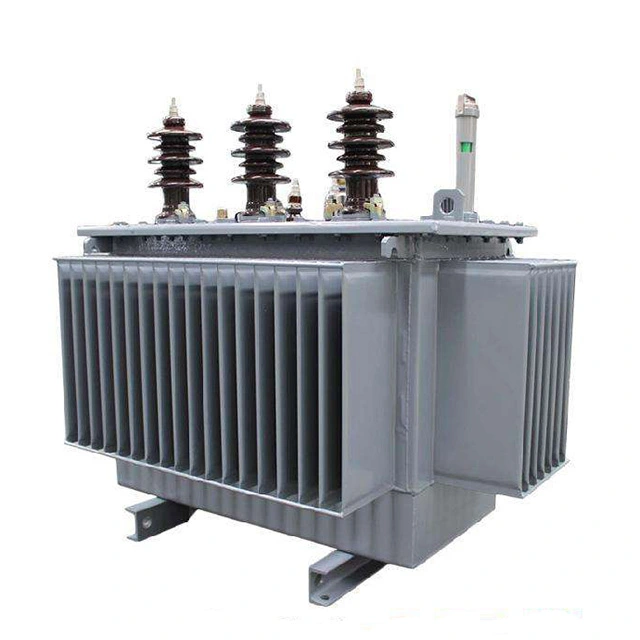

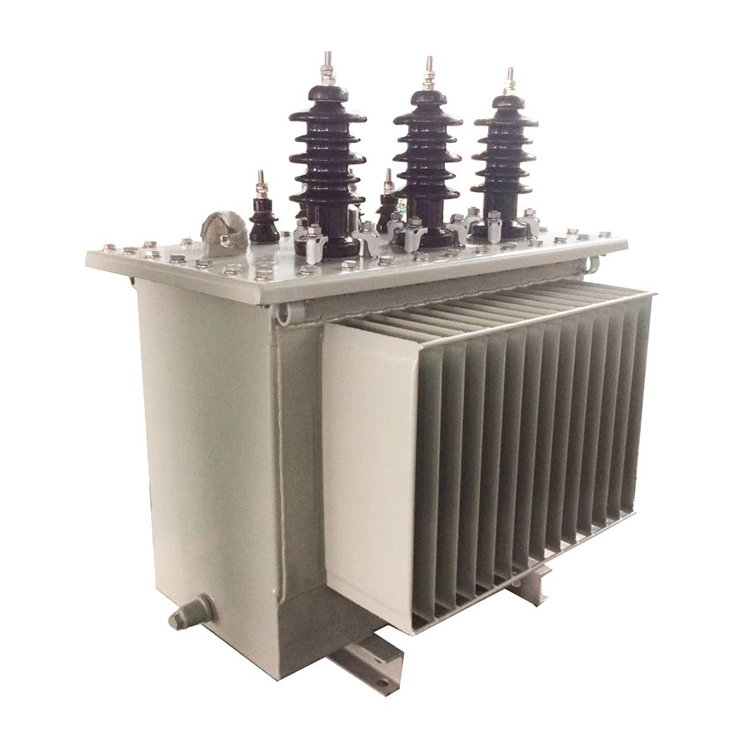

80kva 3 Phase Step Up Power Transformers 415v To 11kv

Technical parameter:

Product Name	80kva 3 phase step up power transformers 415v to 11kv
Low voltage	415 V
High voltage	11 kV
Uk	4%
System Frequency	50 Hz
Open-Circuit Loss	0.18 kW
Load Loss	1.25 kW
Tapping Range	±2×2.5%
Core Material	High quality cold rolled oriented silicon steel sheets
Connection Group	Dyn11 / Yy0

What kinds of tests should be conducted during the operation of a 80kva 3 phase step up power transformers 415v to 11kv?

To ensure that the transformer operates normally, the following tests should be carried out frequently:

(1)Temperature test. Whether the operating state of the transformer is normal and the temperature level are very important. According to the regulations, the upper layer oil temperature should not exceed 85°C (the temperature rise should not exceed 55°C). Generally, transformers are equipped with dedicated temperature measurement devices.

(2)Load test. To improve the utilization rate of the 80kva 3 phase step up power transformers 415v to 11kv and reduce power loss, it is necessary to determine the actual power supply capacity that the transformer can bear during operation. The measurement work is usually carried out during the peak electricity consumption period of each season, and is directly measured using a clamp on ammeter. The current value should be 70 to 80% of the transformer's rated current. If it exceeds this range, it indicates overloading and should be adjusted immediately.

(3)Voltage test. The voltage variation range should be within ±5% of the rated voltage. If it exceeds this range, the tap changer should be used for adjustment to bring the voltage within the specified range. Generally, the secondary winding terminal voltage and the terminal voltage of the end user are measured using a voltmeter.

(4)Insulation resistance test. To keep the 80kva 3 phase step up power transformers 415v to 11kv in a normal operating state, the insulation resistance test must be conducted to prevent insulation aging and accidents. During the test, try to stop the operation of the transformer and use a megohmmeter to measure the insulation resistance value of the transformer. The measured resistance should be no less than 70% of the previous measured value. When selecting a megohmmeter, the low voltage coil can use a 500v voltage level.
