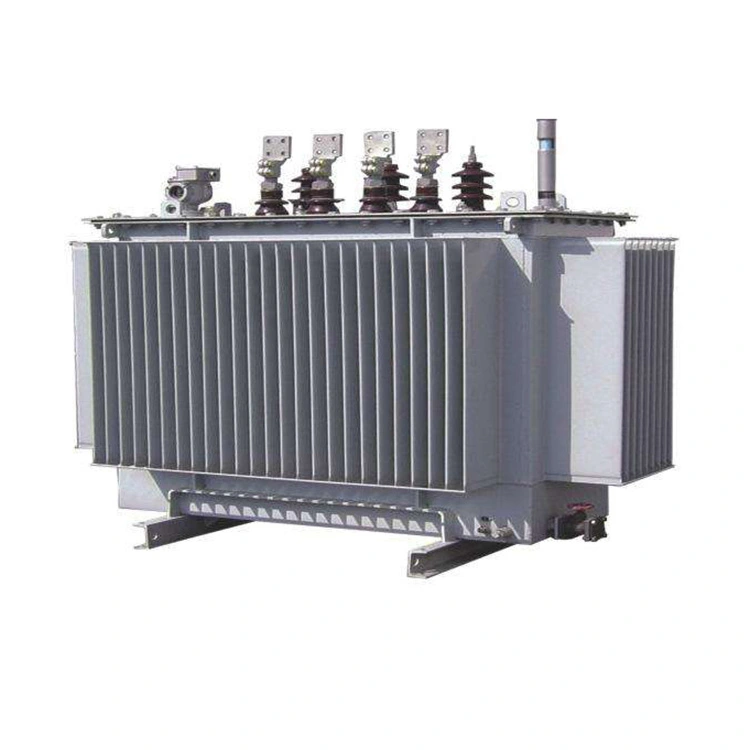

10kv 1600kva Oil Immersed Power Transformer

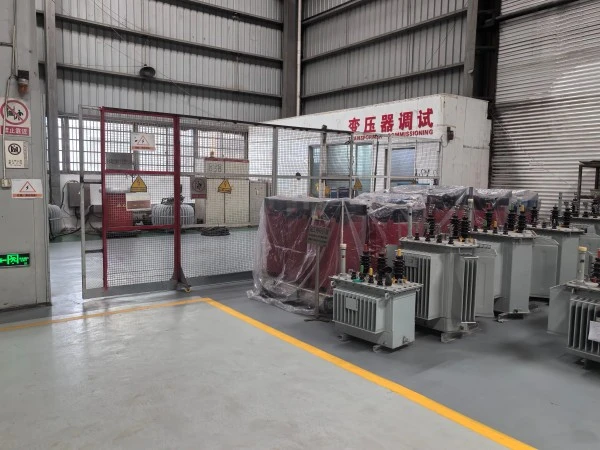

Wenzhou Xifa Electric Power Equipment Co., Ltd., based in Wenzhou, Zhejiang province, is a outstanding transformer manufacturer known for reliability. We've provided high quality and reasonable price transformers to governmental and personal projects worldwide for nearly 20 years, earning a reputation for excellence. The company has introduced advanced technologies from both domestic and international sources, used the latest materials, and optimized the design to produce 10kv 1600kva oil immersed power transformer. This has made the product structure more reasonable, significantly enhancing the electrical strength, mechanical strength and heat dissipation capacity of the product.

Send Inquiry

Product Description

The core of 10kv 1600kva oil immersed power transformer is made by stacking high quality cold rolled silicon steel sheets. This significantly reduces the no load loss and no load current. The core is bound together to ensure its tightness and minimize noise. Both the high voltage and low voltage windings are wound with oxygen free copper. The low voltage winding adopts a double spiral or four spiral structure, while the high voltage winding adopts a multi layer cylindrical structure.

The 10kv 1600kva oil immersed power transformer linkage adopts the Dyn11 technology, which reduces the impact of harmonics on the power grid and improves the power supply quality. It adopts a fully sealed structure, which extends the service life.

10kv 1600kva oil immersed power transformer is maintenance free and the actual measured noise is lower than the standard.Unlike ordinary oil immersed transformers, fully sealed transformers do not require an oil tank. Changes in oil volume can be automatically adjusted and compensated by the elasticity of the corrugated plates in the oil tank.

10kv 1600kva Oil Immersed Power Transformer

Technical parameter:

Product Name	10kv 1600kva oil immersed power transformer
High pressure(KV)	10 KV
High pressure tap range(%)	±5 / ±2 ×2 .5%
Low pressure(KV)	0.4 KV
Vector Group Symbol	Dyn11/Yyn0
NO load loss(W)	1640 W
Load loss(W)	14500 W
NO load current (%)	0.8 %
Short circuit impedance(%)	4.5 %

The features of the 10kv 1600kva oil immersed power transformer

1.Its core is made by stacking 0.18 to 0.3 millimeter thick oriented silicon steel sheets through stamping and shearing processes, which ensures good stability.

2.The coil is made of pure copper. For high voltage circuits, polyimide enameled wire is used; while for low voltage circuits, oxygen free copper wire or copper foil is adopted to improve short circuit resistance performance.

3."The use of the 'Dyn11' connection symbol can avoid the influence of high order harmonics. It effectively resists the impact of uncompensated loads and improves the quality of power supply."

4.The 10kv 1600kva oil immersed power transformer uses vacuum oil injection to remove air bubbles from the core, ensuring the stability of insulation performance.

5.The transformer undergoes strict inspections before leaving the factory, and fully complies with IEC and ISO standards.

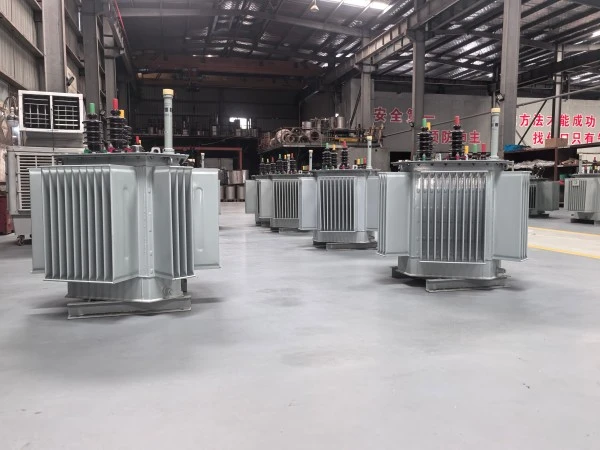

The manufacturing process and structure of fully sealed oil immersed transformers are different from those of ordinary oil immersed transformers.

(1)The body of the fully sealed oil immersed transformer is filled with oil under vacuum, which completely removes moisture and air from the insulation materials, ensuring the long term operational lifespan of the transformer.

(2) For the fully sealed 10kv 1600kva oil immersed power transformers, the oil tank adopts a corrugated type tank or a collapsible heat dissipation device, and the oil reservoir is eliminated. The change in oil volume is compensated by the elasticity of the oil tank.

Because the body of the fully sealed oil immersed transformer is isolated from the air, there is no contact between the oil and the air, so the insulation will not get damp and the aging rate will be greatly reduced. As a result, the reliability and service life of the transformer are improved. There is no need for inspection before operation, so users can save costs.
