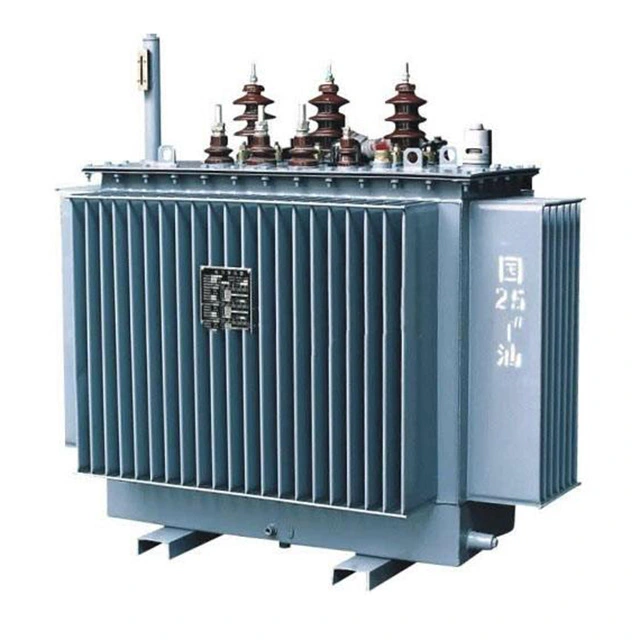

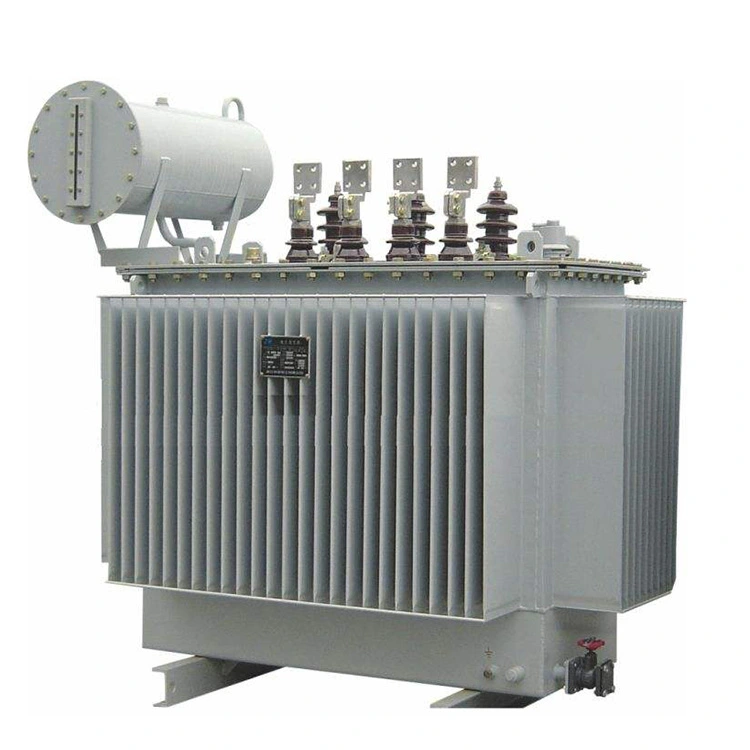

Electric 3 Phase 10kv 400kva Power Transformer

Electric 3 Phase 10kv 400kva Power Transformer is mainly composed of components such as the core, windings, oil tank, cooling device and protection device. The cores all adopt a core type structure, and usually the core type structure uses the overlapping assembly process. The windings are the circuit part of the three phase power transformer.

The high and low voltage bushings of 3 phase 10kv 400kva power transformer are porcelain insulated tubes containing conductors. They are used for fixing and insulating the connection and lead-out ends of the primary and secondary windings of the transformer.

The oil tank is composed of a tank body, a tank cover, a heat dissipation device and an oil discharge valve. Its main functions are to integrate the transformer into a whole and to provide heat dissipation. Inside are windings, a core and transformer oil.

The oil of 3 phase 10kv 400kva power transformer not only has the functions of circulating cooling and heat dissipation, but also has an insulating effect. There is a certain distance between the windings and the tank body (tank walls and tank bottom), which is isolated by the insulating layer of the oil in the tank.

Explosion proof pipe, its function is to prevent explosion accidents in the fuel tank. The tap changer is used to change the number of turns in the transformer's windings to adjust the output voltage of the transformer. The method by 3 phase 10kv 400kva power transformer regulates voltage is to set taps on one of its windings, to remove or add a portion of the turns in the winding, thereby changing the number of turns and achieving the purpose of changing the voltage ratio.

Technical parameter:

Q:How does the core of 3 phase 10kv 400kva power transformer dissipate heat?

A:During normal operation of a transformer, the core generates heat due to iron loss. The greater the weight and volume of the core, the more heat it produces. The transformer oil temperature above 95 degrees is prone to aging, so the surface temperature of the core should be kept below this temperature as much as possible. This requires the core's heat dissipation structure to quickly dissipate the core's heat. The heat dissipation structure is mainly to increase the heat dissipation surface of the core. The heat dissipation of the core mainly includes oil channel heat dissipation and air channel heat dissipation of the core.

In large capacity oil immersed transformers, oil channels are often set between the laminations of the core to enhance the heat dissipation effect. The oil channels are of two types: one is parallel to the silicon steel sheets, and the other is perpendicular to the steel sheets. The latter arrangement has better heat dissipation effect, but the structure is more complex.

In dry type transformers, the core is air cooled. To ensure that the core temperature does not exceed the allowable value, air channels are often installed in the iron core columns and yokes.
