100a Fused 3 Pole Isolator Switch

A 100a fused 3 pole isolator switch is a combined device that integrates a fuse, isolator, and switch in a single unit. It is primarily used to disconnect current in normal operation and interrupt current under short circuit and over load. This type of switch offers advantages such as low cost, stable operation, and ease of maintenance, while also providing circuit protection and remote monitoring capabilities through its fuse element.

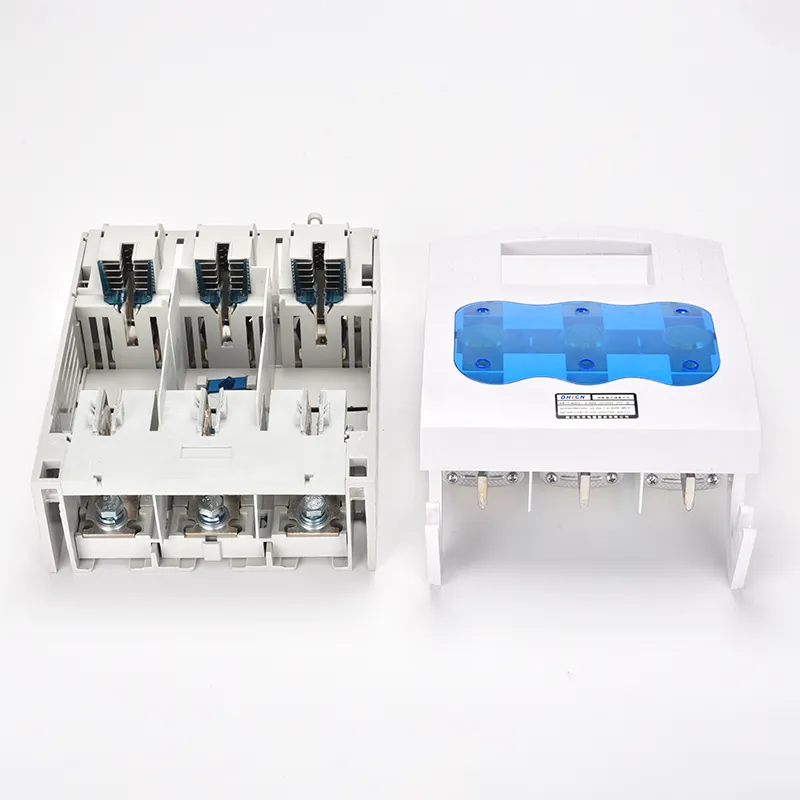

The 100a fused 3 pole isolator switch is constructed with a mounting base, fixed contacts, moving contacts, and a hinged blade. When closed, the blade contacts the fixed terminals to complete the electrical path. In existing designs, assembly and disassembly can be cumbersome, and fuse replacement often requires repeated adjustments due to limited compatibility with the operating lever mechanism.

The improved design replaces elastic adjustment bolts with U shaped retaining clips, ensuring full-surface contact between moving and fixed contacts. This enhances conductivity and stability during operation.

Thanks to its selective breaking capability and excellent current limiting properties, the device is well suited for use in factories, large buildings. Compared with 3P 100A circuit breakers, 100a fused 3 pole isolator switch has lower operating and maintenance costs, as faults typically require only fuse replacement.

Patented technology incorporates an arc prevention mechanism that enlarges the contact area and eliminates arcing during operation, addressing safety issues associated with loose contact in traditional designs. When designing a low voltage distribution system, proper selection of the switch should consider both the personnel management category and the intended application scenario.

Product Parameter:

Product FAQ:

Q: How do I maintain a 100a fused 3 pole isolator switch?

A: Regular inspection is recommended. This includes checking and cleaning contact surfaces, replacing fuses when blown, tightening terminal screws, and ensuring the operating mechanism moves freely. Proper maintenance extends service life and guarantees reliable performance.

Q: Can the 100a fused 3 pole isolator switch handle be padlocked?

A: Yes. Many models feature padlockable handles, which allow operators to lock the switch in the “OFF” position during maintenance, preventing accidental reenergization.

Q: What are the key benefits of choosing a fused isolator switch?

A: a 100a fused 3 pole isolator switch provides a clear disconnection point for safety, integrates circuit protection through fuses, saves installation space with a compact design, and is suitable for a wide range of low-voltage applications.
