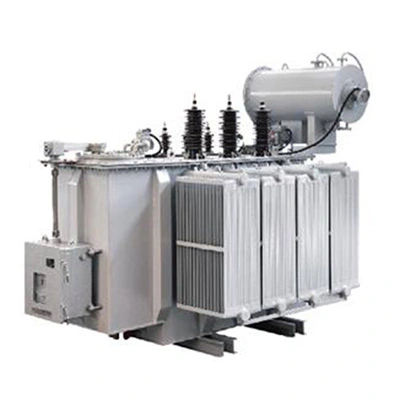

S9 12.5mva 33kv Electrical Power Transformer

Wenzhou Xifa Electric Power Equipment Co., Ltd.’s s9 12.5mva 33kv electrical power transformer has passed the short circuit bearing capacity and conventional type tests of the National Transformer Quality Supervision and Inspection Center. It features excellent stability, strong economy, high reliability and environmental friendliness. It is applicable for power plants, substations, large industrial and mining enterprises, as well as petrochemical enterprises. The s9 12.5mva 33kv electrical power transformer is produced in accordance with Chinese national GB standards and the international IEC standards.It is highly favored by both domestic and foreign purchasers.

Send Inquiry

Product Description

s9 12.5mva 33kv electrical power transformer adopts a fully sealed oil immersed structure. The core is made of high-permeability cold rolled oriented silicon steel sheets, and a stepped lamination process is used to effectively reduce hysteresis loss and no load current. The windings are wound with high strength oxygen free copper wires, featuring high insulation levels, strong current carrying capacity, and excellent performance in withstanding short term overloads and impulse loads. The entire s9 12.5mva 33kv electrical power transformer is designed with an integrated oil tank structure, which has good sealing performance, effectively preventing the insulation oil from getting damp and oxidized, delaying equipment aging, and significantly extending its service life.

Equipped with a no excitation voltage regulation structure, with a tap range of ±2×2.5%,s9 12.5mva 33kv electrical power transformer can adjust the output voltage in a power off state according to the fluctuation of grid voltage, meeting the voltage adaptation requirements of different working conditions. The standard connection group is Dyn11, which has a good ability to suppress zero sequence current and can effectively reduce voltage distortion caused by unbalanced three phase loads, improving power supply quality.

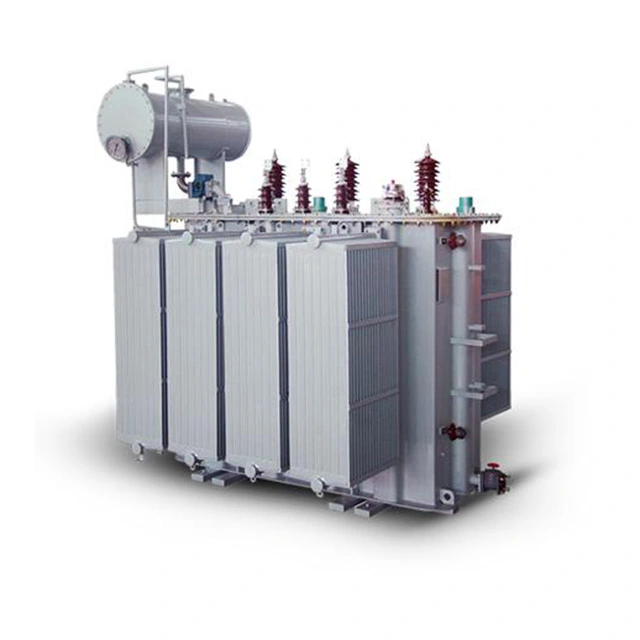

S9 12 5mva 33kv Electrical Power Transformer

Technical Parameter:

Product name：	s9 12.5mva 33kv electrical power transformer
Nominal capacity :	12.5 mva
Input:	33 kv
Output:	11 kv / 6.6 kv
Voltage regulating mode:	No excitation voltage regulation
Tapping range:	±2×2.5%
Open circuit losses:	≤14kW
Load losses:	≤78kW
Cooling method:	ONAN / ONAF

Core advantages:

1. Energy conservation and consumption reduction: The core optimization of the s9 12.5mva 33kv electrical power transformer is a low loss design, significantly reducing no load and load losses. Long-term operation can effectively reduce energy consumption losses in the power grid and lower users' electricity operation costs, meeting the requirements of industrial energy conservation and power grid loss reduction.

2. Stable and reliable operation: Copper core windings combined with high permeability iron cores result in low temperature rise and uniform heat distribution. They have strong overload and short circuit resistance, allowing for long term continuous full load operation with a low failure rate, making them suitable for uninterrupted power supply scenarios.

3. Strong adaptability: s9 12.5mva 33kv electrical power transformer supports both self-cooling and forced air cooling modes, and can be adapted to various installation environments such as outdoor open air, indoor substations, and industrial and mining factory areas. The voltage regulation range can accommodate voltage fluctuations in most regional power grids.

4. Convenient operation and maintenance: The fully sealed structure eliminates the need for frequent oil changes. Daily operation and maintenance only require routine inspections of oil temperature, oil level, and connection status, resulting in low maintenance costs and long maintenance intervals.
