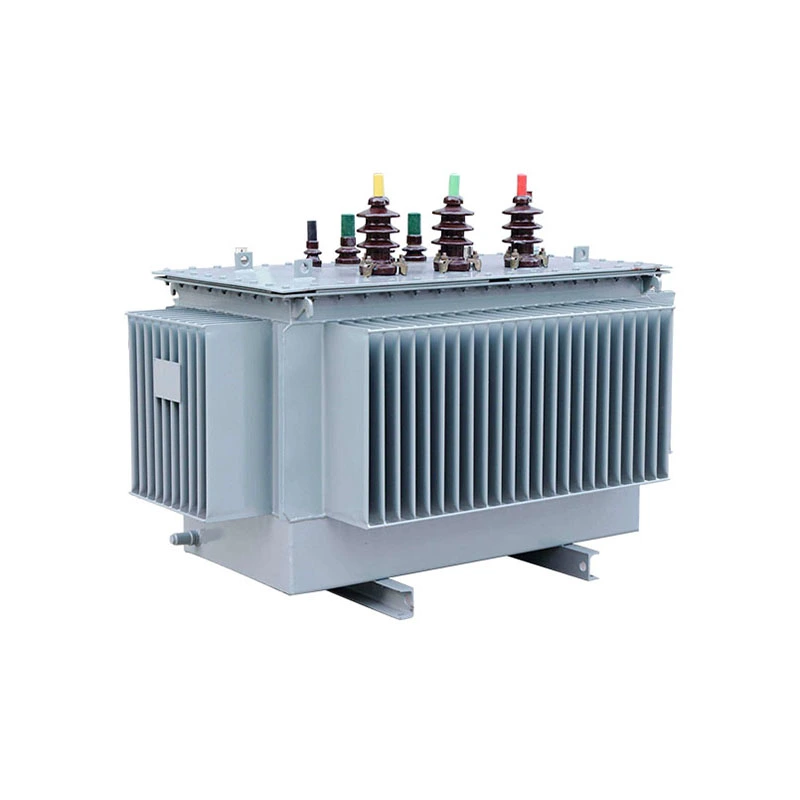

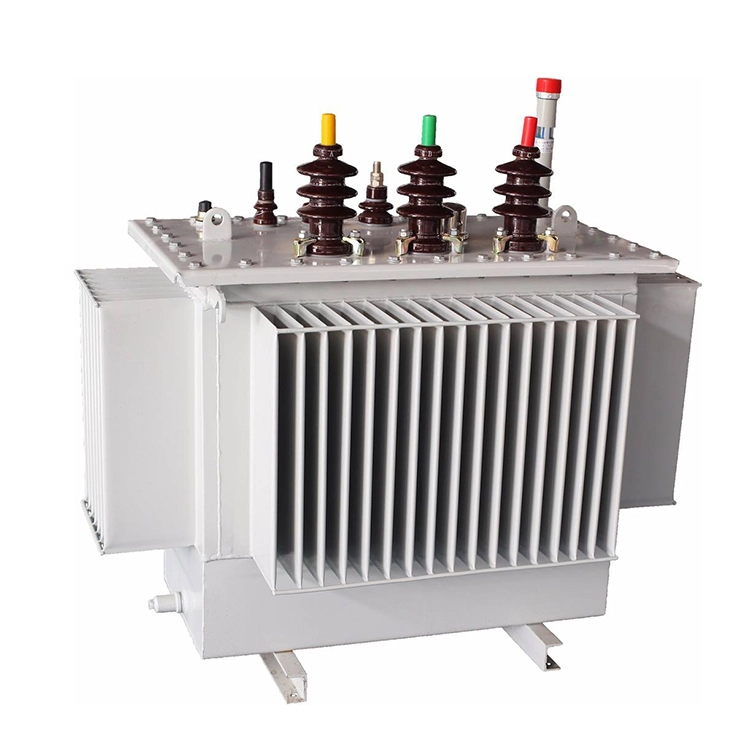

Onan Distribution 250kva 6 0.4kv Pole Mounted Transformer

The rated capacity of the onan distribution 250kva 6 0.4kv pole mounted transformer is 250 kVA, the rated high voltage voltage is 6 kV, and the rated low voltage voltage is 0.4 kV. It is conventionally designed with a three phase AC system, suitable for a power grid with a frequency of 50 Hz. It can reduce the 6 kV high voltage electrical energy to 0.4 kV low voltage electrical energy.

The whole is in an integrated compact structure, specially designed for installation on utility poles. Onan distribution 250kva 6 0.4kv pole mounted transformer is small in size, well organized in layout, and does not require a separate power distribution room. It can operate in outdoor open air conditions. The protective structure of the shell can resist the effects of outdoor sunlight, rain, dust, etc.

The mainstream insulation and cooling method is oil immersed, relying on the insulating oil to complete internal heat dissipation and insulation. It has low operating noise, moderate overload capacity, and stable and reliable operation.

Technical Parameter:

Test：

The manufacturing process testing ensures that the technical standards and quality requirements of onan distribution 250kva 6 0.4kv pole mounted transformer are met international certification standard during the production process.

The test contents include key items such as core loss test, winding resistance measurement, insulation resistance test, partial discharge test and transformation ratio test. During the core assembly stage, workers will test the magnetic flux density and core loss to ensure that the materials and processes meet the design requirements, thereby reducing no load loss of onan distribution 250kva 6 0.4kv pole mounted transformer. After the winding is completed, workers will conduct DC resistance test and inter winding insulation test to inspect the winding quality and prevent short circuits or inter winding failure.

Each key step in the production process is rigorously tested to ensure that the onan distribution 250kva 6 0.4kv pole mounted transformer complies with international standards (such as IEC, ANSI, IEEE or GB), and ultimately meets the technical specifications of the customers.

Advantages：

As a leading transformer manufacturer in China, we offer efficient and durable transformers. Our innovative design meets diverse needs and provides customized solutions along with dedicated support.

We offer transformers with cutting edge designs to meet various voltage and power requirements, ensuring optimal performance. Our onan distribution 250kva 6 0.4kv pole mounted transformer design focuses on maximum efficiency, minimizing energy loss during voltage conversion and distribution, thereby saving costs for customers. Through strict quality control measures and the use of excellent quality materials, our transformer design is durable, providing reliable and durable solutions for various applications. Moreover, we supply customization and support service. We prioritize customer satisfaction and offer customized solutions and specialized support to meet unique needs, ensuring the stable and efficient operation of onan distribution 250kva 6 0.4kv pole mounted transformer.

Main Parts of Pole Mounted Transformers

Front Mounting type LV DB

Pole Line Hardware

Pole Mounted Transformer

Side Mounting type LV DB

Producing Equipments

Foil Winding Machine

Oil Filling Unit

Transformer Oven and Casting Unit

Transformer Oven

Testing Center

Transformers In Processing

Transformer in drying

Transformer in Winding 2

Transformer in Winding

Transfromer is in assemble
