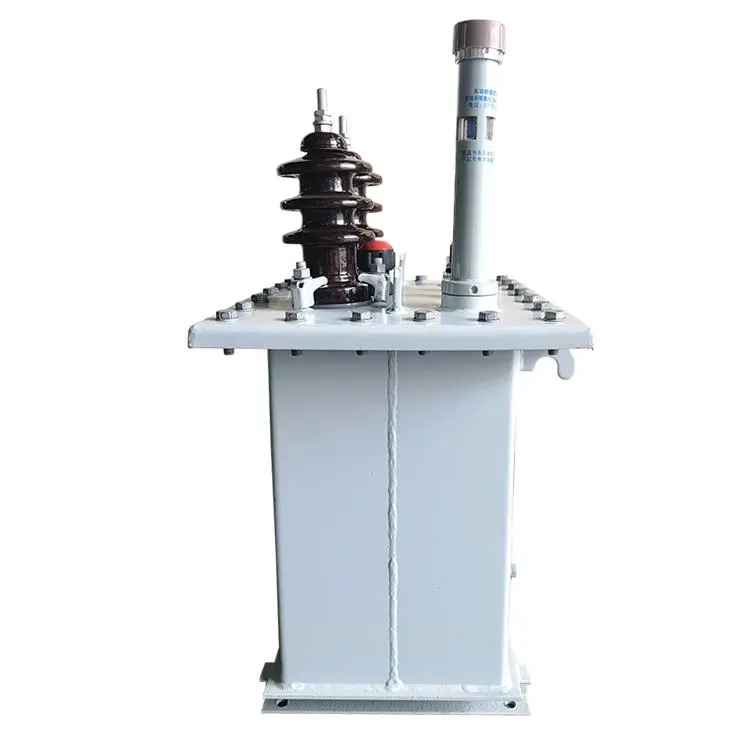

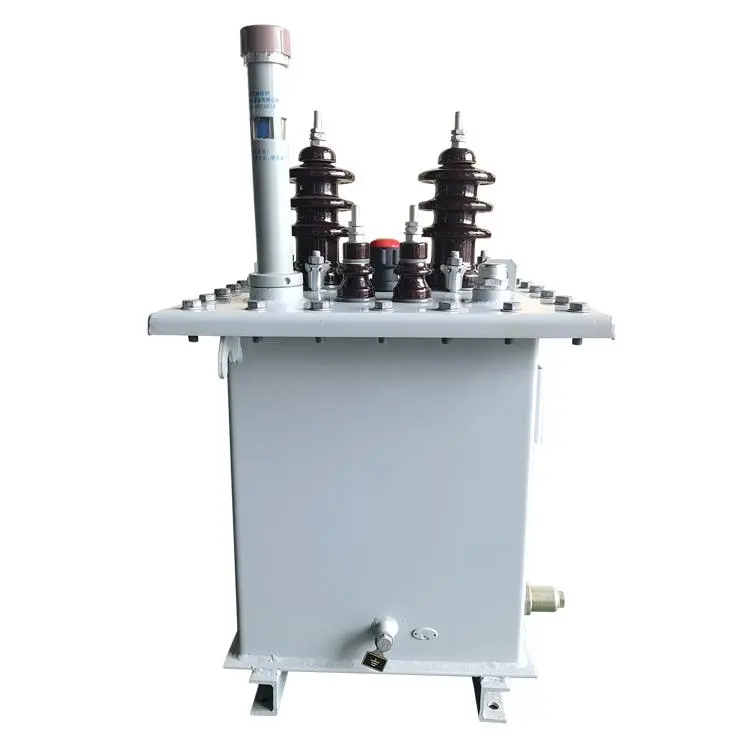

11 Kv Pole Mount Distribution Transformer Single Phase

11 kv pole mount distribution transformer single phase is a compact and high performance solution for overhead power distribution systems. It can reduce the primary voltage of 11kV to standard secondary voltages such as 220V or 415V, providing safe and reliable power to end users.

Using outstanding quality silicon steel cores and copper or aluminum windings, 11 kv pole mount distribution transformer single phase minimizing load losses and no load losses while complying with IEC 60076 and related IEEE/ANSI energy efficiency standards. The oil filled tank is naturally cooled by ONAN and can withstand a temperature rise of 55 to 65℃, ensuring reliable operation under different loads.

The 11 kv pole mount distribution transformer single phase features a sturdy bushing, pressure relief mechanism, and optional surge protection function, making it highly resistant to weather conditions, with low maintenance costs, and suitable for installation on exposed poles.

This transformer can provide stable and safe power and has excellent overload capacity, making it a good choice for users.

Technical parameter：

Q:Can a 11 kv pole mount distribution transformer single phase be customized?

A:Yes, this transformer can be extensively customized according to your specific grid requirements, ensuring safe operation and compliance with relevant regulations. The primary voltage of 11 kv pole mount distribution transformer single phase can be fixed at 11kV, or a dual tap configuration such as 10.5kV to 11.5kV can be adopted. To meet regional standards in Europe, Asia, or emerging markets, the secondary output gives multiple options including 230V, 240V, 220/440V, or 415V.

The selection range of winding materials covers everything from cost effective lightweight aluminum to high thermal conductivity copper, including both. Moreover, the high thermal conductivity copper can achieve higher efficiency and better heat dissipation performance under heavy loads. Frequency support is 50Hz or 60Hz.

To enhance the operational capability of 11 kv pole mount distribution transformer single phase in hot climates, the cooling method can be upgraded from the standard ONAN to forced cooling. ±2x2.5% or a wider range of off grid tap changers can optimize the voltage without power interruption. The impedance level can meet the requirements for 4 to 5% balance fault protection and regulation, and additional protection devices such as high voltage fuses, lightning arresters, or bird proof covers can be installed to enhance safety in rural or storm prone areas. The environmentally friendly ester based fluid replaces mineral oil, enhancing fire resistance and sustainability.These customized features enhance installation convenience, fault recovery abilities, and energy efficiency, creating a 11 kv pole mount distribution transformer single phase suitable for overhead lines in harsh environments.

Other optional configurations include reinforced fuel tanks for high wind or earthquake areas, and anti corrosion coatings for salt spray regions. The insulation level of the casing can reach up to 75kV BIL, which can handle system surges. The shell modification can reduce noise or improve ventilation. The capacity range can cover typical 16 to 200kVA ratings and the core design can reduce no load losses, thereby achieving excellent efficiency.

Whether for remote villages or suburban expansion projects, these customized solutions can ensure that 11 kv pole mount distribution transformer single phase meet precise requirements, provide reliable and standard power distribution, while minimizing operating costs and extending service life to the maximum extent.

Main Parts of Pole Mounted Transformers

Front Mounting type LV DB

Pole Line Hardware

Pole Mounted Transformer

Side Mounting type LV DB

Producing Equipments

Foil Winding Machine

Oil Filling Unit

Transformer Oven and Casting Unit

Transformer Oven

Testing Center

Transformers In Processing

Transformer in drying

Transformer in Winding 2

Transformer in Winding

Transfromer is in assemble
