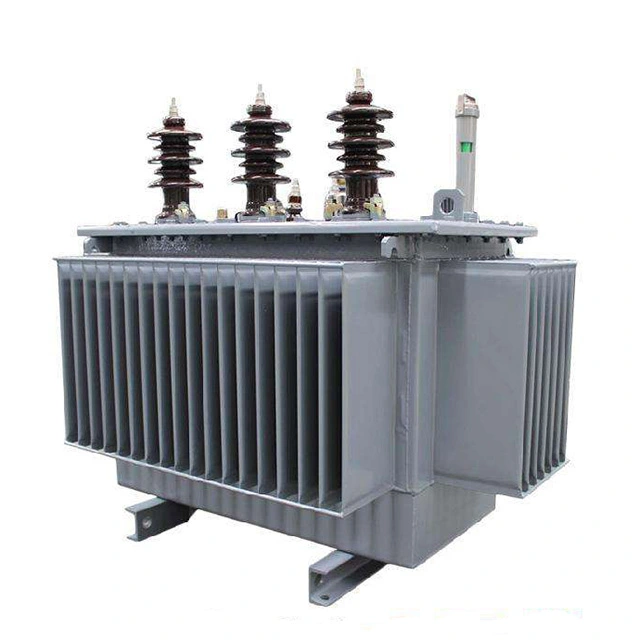

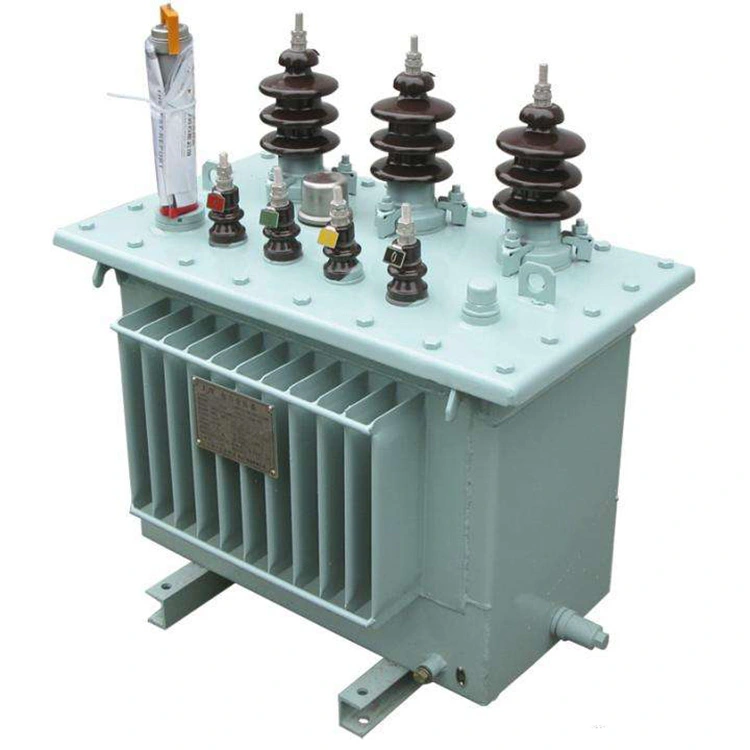

50 Kva Pole Mount Electrical Transformer

The 50 kva pole mount electrical transformer is an indispensable device in low-voltage power distribution systems. Its main functions include voltage conversion, electrical isolation, and system protection. It is widely used in industrial facilities, commercial buildings, residential projects, and infrastructure construction.

The 50 kva pole mount electrical transformer is manufactured with high quality silicon steel cores and high-conductivity copper or aluminum windings. It has a compact structure, low loss, low noise, and stable operation, and is designed to work reliably under various operating conditions.

All windings of 50 kva pole mount electrical transformer are manufactured with high quality materials to ensure excellent insulation performance and structural stability. The low voltage windings are covered with cable paper around the conductors, while the high voltage windings use polyurethane enameled round copper wires. The inter layer glue paper bonding firmly connects the coils into a single unit, which provides excellent insulation performance. This professional winding structure effectively prevents the coils from deforming or being damaged during long run operation and long distance transportation, thereby ensuring the stability and reliability of the 50 kva pole mount electrical transformer's overall structure.

Technical parameter：

Q:In a 10kV/0.4kV 50 kva pole mount electrical transformer, compared to the Yyn0 connection group, what specific advantages does the Dyn11 connection group have in terms of the secondary side single phase short circuit fault current level and the suppression ability of ferromagnetic resonance?

A:The zero sequence impedance of the Dyn11 connection is much lower than that of Yyn0, which significantly increases the single phase grounding fault current, facilitating the rapid and reliable detection and removal of faults by the protection device, and reducing the risks of electric shock and equipment damage.

At the same time, the primary side delta winding of 50 kva pole mount electrical transformer provides a closed path for the zero sequence current, effectively restraining the neutral point drift and preventing severe three phase voltage asymmetry. When the system experiences ferromagnetic resonance, this path can provide damping effects, which significantly reduces the amplitude and duration of the resonance over voltage. Moreover, Dyn11 can also block the injection of 3rd harmonic current into the upstream power grid, avoiding harmonic amplification and capacitor bank overload, and reducing the additional temperature rise of the 10kV/0.4kV 50 kva pole mount electrical transformer and the aging speed of the insulation.

Therefore, for scenarios where 50 kva pole mount electrical transformers serve areas with a large amount of single phase loads, non linear loads, or long rural power lines that are prone to resonance, Dyn11 has significant advantages in terms of safety, power quality, and equipment lifespan.
