With the increasing demand for reliable medium voltage power distribution, choosing the right circuit protection equipment has become essential for industrial facilities, substations, and power networks. XiFa provides advanced electrical solutions, including the Vs1 12 11 Kv Vacuum Circuit Breaker Vcb, designed to deliver stable switching performance, high operational safety, and long service life in 12kV power systems. This vacuum circuit breaker combines modern vacuum interruption technology with compact structural design, making it suitable for applications requiring efficient fault protection and dependable electrical control.
This article explains the working principle, technical advantages, application fields, and selection considerations of the Vs1 12 11 Kv Vacuum Circuit Breaker Vcb. It also highlights why this type of medium voltage VCB has become an important choice for industrial power distribution systems.

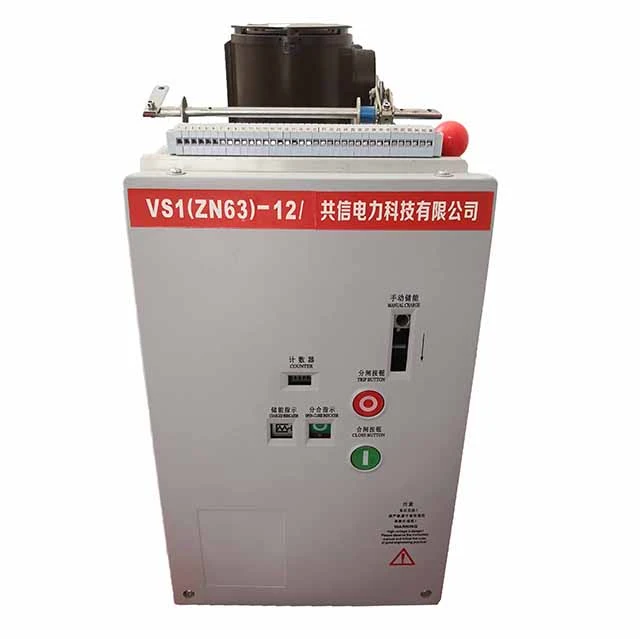

A Vs1 12 11 Kv Vacuum Circuit Breaker Vcb is a medium voltage switching device designed for controlling and protecting electrical circuits with rated voltages up to 12kV. It uses vacuum interrupter technology to extinguish electrical arcs generated during circuit breaking operations, ensuring fast and reliable interruption of abnormal current conditions.
Unlike traditional air circuit breakers or oil circuit breakers, vacuum circuit breakers operate inside sealed vacuum chambers, reducing maintenance requirements and improving operational stability. The compact structure and mechanical reliability make them widely used in power distribution systems, industrial plants, mining projects, infrastructure facilities, and commercial electrical networks.
The Vs1 series design usually adopts an integrated modular structure, which helps simplify installation and maintenance. It provides excellent insulation performance, strong short-circuit breaking capability, and long mechanical endurance, supporting frequent switching operations in demanding environments.
The core component of a vacuum circuit breaker is the vacuum interrupter. When a fault occurs, the circuit breaker separates its contacts and creates an arc. In a vacuum environment, there are very few gas molecules available to maintain the arc, allowing the arc to quickly disappear when the current reaches zero.
The basic operating process includes the following steps:
This advanced interruption method improves safety because there is no oil leakage risk and no requirement for arc-extinguishing gas replacement. As a result, vacuum circuit breakers provide a cleaner and more environmentally friendly solution for modern electrical systems.
The Vs1 12 11 Kv Vacuum Circuit Breaker Vcb offers multiple advantages that make it suitable for industrial and commercial medium voltage applications.
The vacuum interruption chamber provides rapid arc extinction, minimizing electrical damage during fault conditions. This helps protect transformers, motors, generators, and other critical electrical equipment.
The durable operating mechanism enables thousands of switching operations with stable performance. This reduces equipment replacement frequency and improves the overall reliability of power distribution systems.
Because the interrupter operates in a sealed vacuum environment, there is no need for regular oil replacement or complex maintenance procedures. This helps reduce operating costs for industrial users.
The optimized structure allows the breaker to be installed in different types of switchgear systems. Its compact dimensions make it suitable for projects where space efficiency is important.
The breaker is engineered to withstand high fault currents and quickly disconnect damaged sections of the electrical network, improving system stability.
Understanding the technical parameters is essential when selecting a medium voltage circuit breaker. The following table summarizes common specifications of the Vs1 12 11 Kv Vacuum Circuit Breaker Vcb.
| Parameter | Typical Value | Description |
|---|---|---|
| Rated Voltage | 12kV | Suitable for medium voltage distribution systems |
| Rated Frequency | 50/60Hz | Compatible with standard power networks |
| Vacuum Interruption Technology | Yes | Provides fast and reliable arc extinction |
| Installation Type | Indoor | Designed for indoor switchgear applications |
| Application | Power Distribution | Used for protection and control of electrical circuits |
| Operation | Motor/Spring Mechanism | Ensures stable switching performance |
| Maintenance Requirement | Low | Reduces long-term operation costs |
The Vs1 12 11 Kv Vacuum Circuit Breaker Vcb is widely applied in medium voltage electrical systems that require dependable protection, frequent switching capability, and long-term operational stability. Due to its excellent breaking performance and compact design, it has become an important component in various industries.
Typical application fields include:
For example, in a manufacturing facility with multiple production lines, a sudden short circuit may interrupt the entire operation. Installing a reliable Vs1 12 11 Kv Vacuum Circuit Breaker Vcb allows the damaged circuit section to be quickly isolated while keeping other systems running normally, reducing downtime and maintenance costs.
Selecting an appropriate vacuum circuit breaker requires careful consideration of electrical parameters, installation requirements, and operating conditions. A suitable VCB should match the characteristics of the power system to ensure safe and efficient operation.
Important selection factors include:
Working with an experienced China manufacturer or supplier can help customers obtain customized solutions according to project requirements. Professional technical support is especially important for large-scale industrial power projects where reliability and safety are priorities.
Compared with conventional circuit breakers, vacuum circuit breakers provide several improvements in safety, efficiency, and maintenance. The following comparison highlights the differences:
| Feature | Vacuum Circuit Breaker | Traditional Circuit Breaker |
|---|---|---|
| Arc Extinction Method | Vacuum interruption technology | Air or oil-based interruption |
| Maintenance Frequency | Low maintenance requirement | Usually requires more maintenance |
| Environmental Impact | No oil leakage risk | May involve insulating oil management |
| Service Life | Long mechanical and electrical endurance | Depends on structure and operating conditions |
| Operating Speed | Fast fault interruption | Varies according to design |
Because of these advantages, vacuum circuit breaker technology has become the preferred solution for many modern medium voltage power systems.
Although the Vs1 12 11 Kv Vacuum Circuit Breaker Vcb requires less maintenance compared with traditional breakers, regular inspection is still necessary to ensure long-term reliability.
A proper maintenance plan can significantly improve equipment reliability, reduce unexpected failures, and extend the service life of medium voltage distribution systems.
The main function of a Vs1 12 11 Kv Vacuum Circuit Breaker Vcb is to control and protect medium voltage electrical circuits. It disconnects faulty sections quickly during overloads or short circuits to prevent damage to electrical equipment.
Vacuum technology provides excellent arc extinction performance because the vacuum environment prevents continuous arc formation. It improves switching reliability, reduces maintenance requirements, and increases equipment safety.
Yes. This type of vacuum circuit breaker is suitable for industrial facilities, power distribution systems, substations, factories, and other applications requiring reliable medium voltage protection.
Maintenance frequency depends on operating conditions, switching frequency, and environmental factors. Compared with oil circuit breakers, vacuum circuit breakers generally require less maintenance because the interrupter is sealed and maintenance-free.
Buyers should evaluate rated voltage, breaking capacity, installation requirements, system compatibility, manufacturer reliability, and after-sales technical support before making a purchase decision.
The Vs1 12 11 Kv Vacuum Circuit Breaker Vcb represents a reliable solution for modern medium voltage electrical protection. With advanced vacuum interruption technology, strong fault-breaking capability, low maintenance requirements, and flexible installation advantages, it provides stable performance for industrial facilities, substations, and energy projects.
Choosing a professional manufacturer with engineering experience is essential for ensuring product quality and long-term system reliability. XiFa focuses on providing dependable electrical equipment solutions that meet the needs of different power distribution applications. If you are looking for a high-performance medium voltage circuit breaker solution or need technical assistance for your project, please contact us for professional support and customized recommendations.
