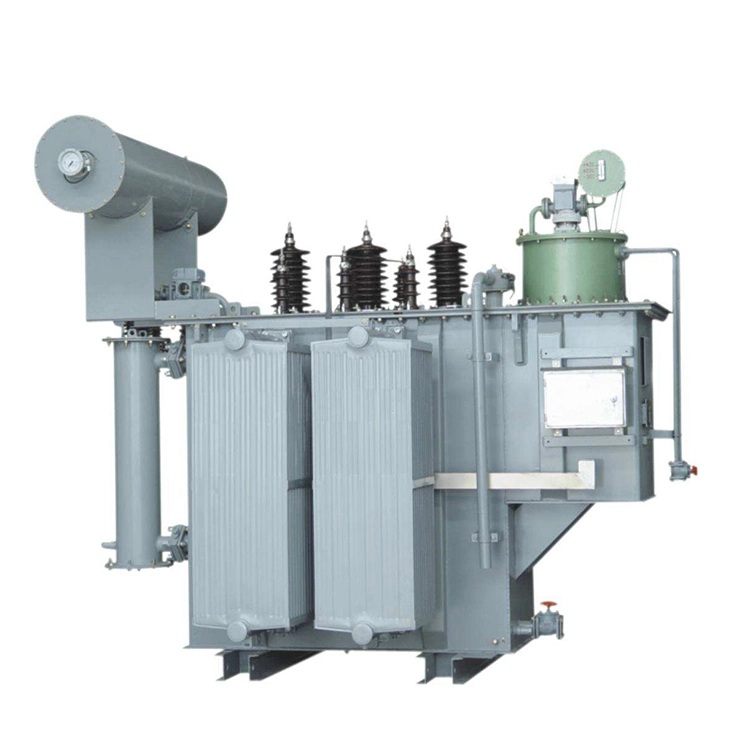

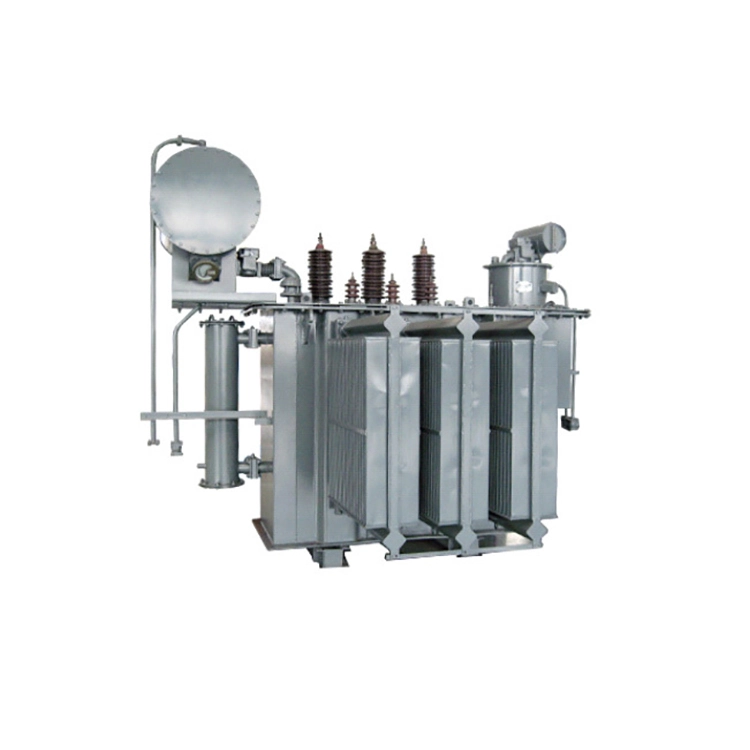

3 Phase 35kv 5000kva Oltc Power Transformer

3 phase 35kv 5000kva oltc power transformer,featuring an energy saving design, incorporates a high permeability silicon steel sheet core and pure copper high voltage and low voltage windings. Its insulation layout is standardized, the cooling oil circuit is unobstructed, and it has high mechanical strength and strong anti-short-circuit capability.

The 3 phase 35kv 5000kva oltc power transformer is equipped with an internal OLTC on load adjustable switch, allowing for voltage adjustment while the load is on, with a voltage adjustment range of±8×1.25%. The entire unit is of a fully sealed oil immersed structure, equipped with complete internal temperature measurement and gas protection devices.

3 phase 35kv 5000kva oltc power transformer has low operating losses, small temperature rise, stable performance, and is suitable for outdoor conditions. It is widely used in 35kV substations, industrial enterprises, and new energy power stations, reliably ensuring the stable transmission of grid voltage.

Technical parameter:

Advantages：

1.The internal structure of 3 phase 35kv 5000kva oltc power transformer is compact and well arranged, with low loss and energy consumption, making it an efficient and energy saving transformer.

2.The OLTC built in mechanism is stable and reliable, allowing for stable voltage without power outage, and has strong power supply continuity.

3.Pure copper windings and high   quality iron core combination, with low internal heat generation and strong overload operation capacity.

4. The fully enclosed internal protection design ensures that the 3 phase 35kv 5000kva oltc power trans for me requires no frequent maintenance, and it can operate stably for a long time in both outdoor and harsh environmental conditions.

5.The internal insulation configuration meets standards, with low partial discharge, high withstand voltage, and safe operation at high voltage without any hidden dangers.

Q:Could you please elaborate on the structure principle and operational advantages of the OLTC system?

A:3 phase 35kv 5000kva oltc power transformer is equipped with a high performance built in OLTC on-load tap-changing device. The voltage adjustment range covers ±8×1.25%, with an overall independent sealed oil chamber partitioned structure design.The voltage adjustment switching mechanism is equipped with a professional rapid arc extinguishing component.

3 phase 35kv 5000kva oltc power transformer can complete the voltage level switching adjustment while operating under full load without power interruption or shutdown, effectively avoiding power supply interruption losses caused by power off voltage adjustment. It can be operated electrically locally or be compatible with a remote automated voltage regulation control system.

Moreover, it can precisely correct the output voltage on the low voltage side according to the voltage fluctuations at the input end of the power grid, solving power supply problems such as line voltage drop and excessive voltage deviation in the power grid during peak and off peak periods, significantly improving the power supply quality of end electrical equipment.
