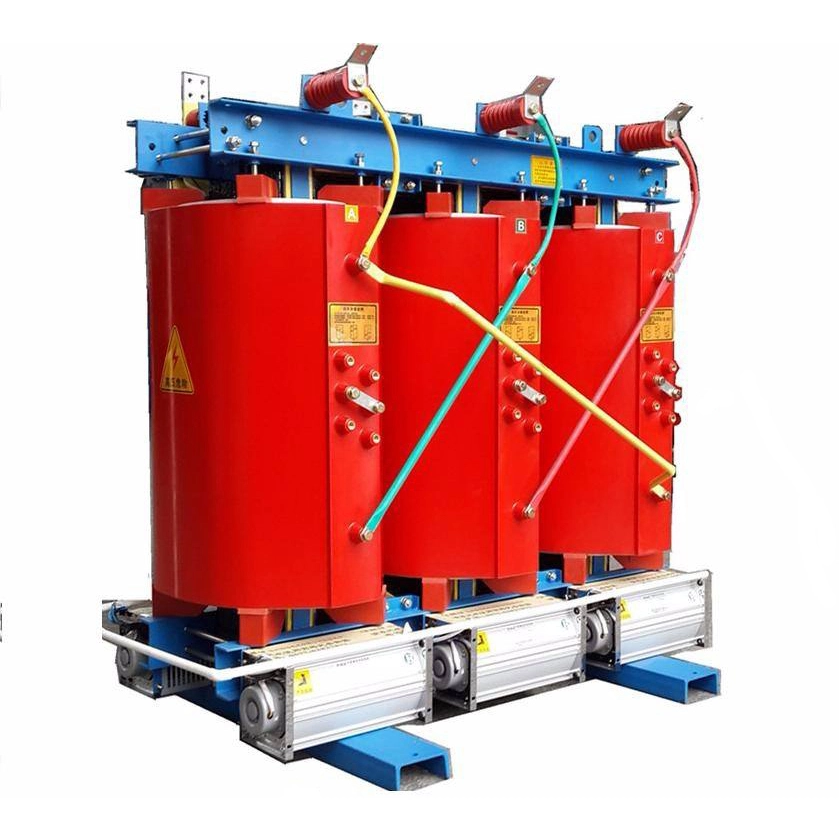

11kv 13.8kv 1000 Kva Power Dry Type Transformer

11kv 13.8kv 1000 kva power dry type transformer is made of high quality cold rolled oriented silicon steel sheets, featuring high magnetic permeability. By using the stepped 45°full cross jointing laminating method, the magnetic path becomes smoother, thereby reducing losses and noise. The core column of 11kv 13.8kv 1000 kva power dry type transformer is bound with adhesive tape, its surface is coated with insulating resin for rust prevention, and it is locked by a pull plate or pull band structure, which can effectively suppress the vibration and noise of the silicon steel sheets during operation.

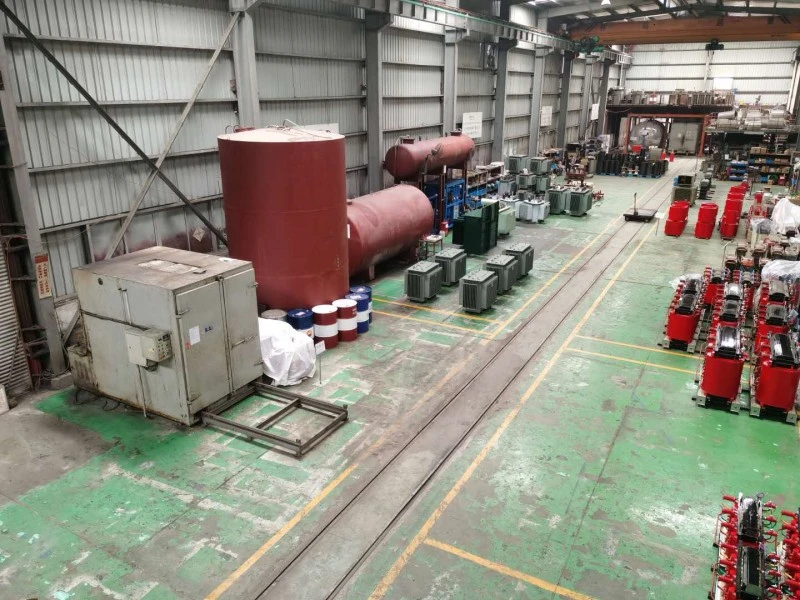

Transformer Workshop

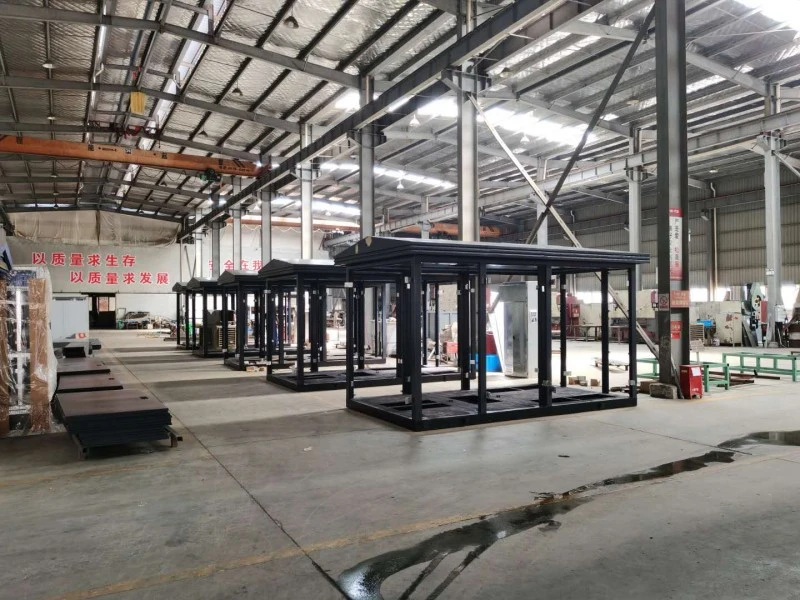

Substation Workshop

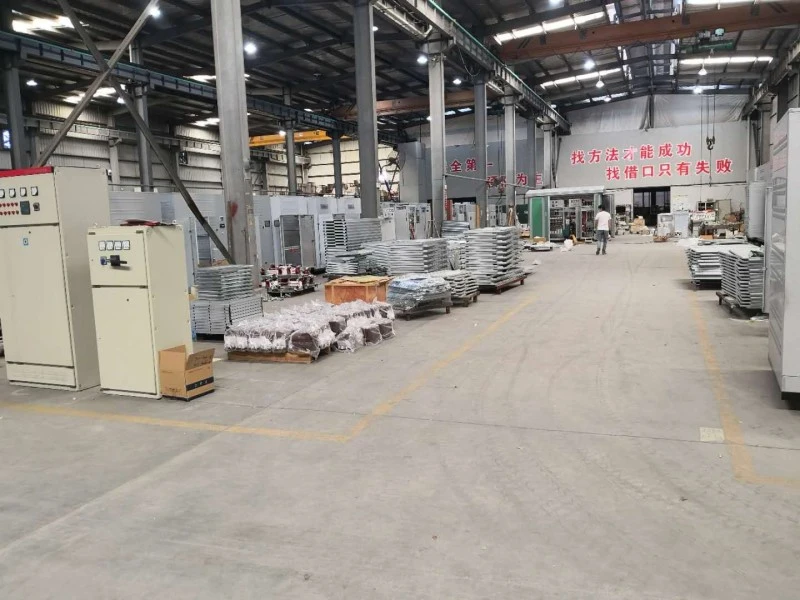

Assemble Workshop

This advanced manufacturing process and materials have reduced the no load and load losses of the 11kv 13.8kv 1000 kva power dry type transformer, which improves energy utilization efficiency. Moreover, it has excellent electrical performance and mechanical strength, capable of withstanding the impact of short circuit currents without damage. At the same time, it has good fire resistance and can effectively prevent the occurrence of fire accidents.

Technical parameter:

Semi Finished Products:

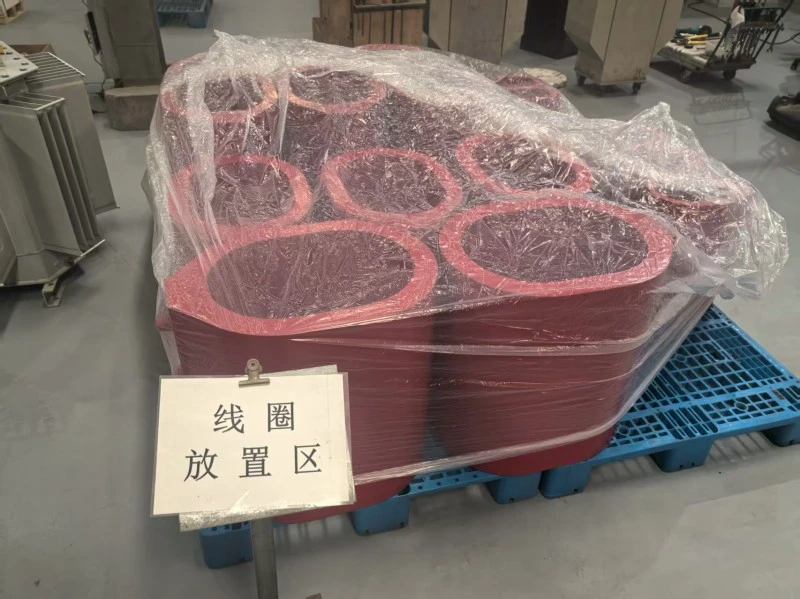

Casting Winding

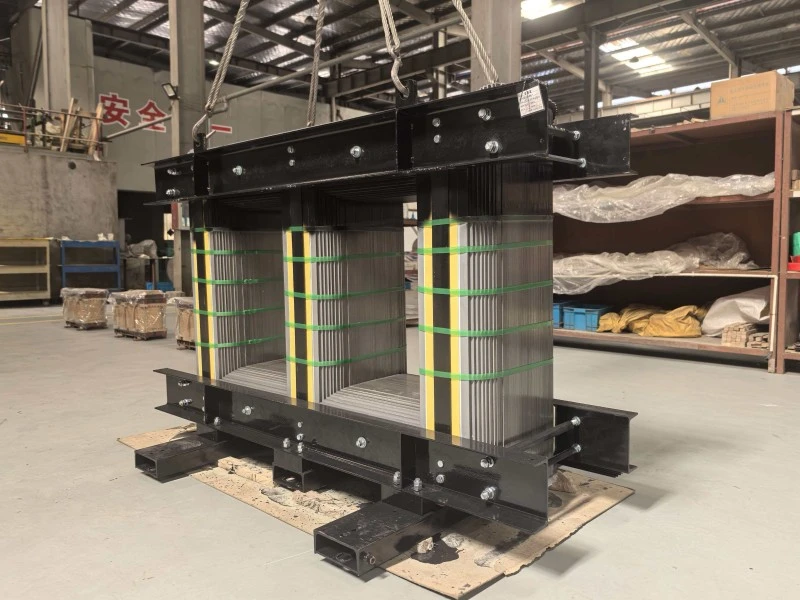

Transformer Core

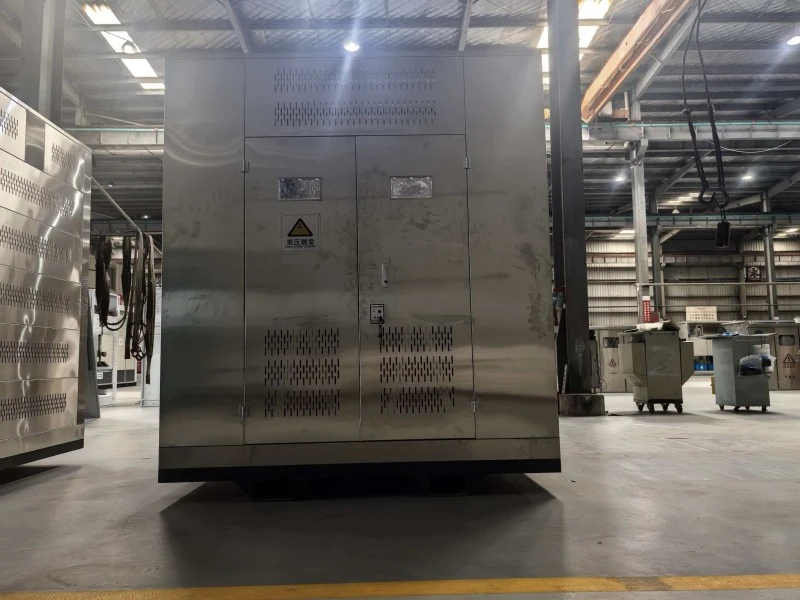

Protection Cover IP20

Wenzhou XiFa Electric Power Equipment Co., Ltd. not only manage the quality from the raw material such as silicon steel sheets, resin, and curing agent, but also would inspect the semi finished products to reach the requirements to assemble as a complete finished 11kv 13.8kv 1000 kva power dry type transformer. In the producing process, the casting winding would be inspected whether the bubble distributes on the surface of casting resin or close to the transformer core. Meanwhile, each 11kv 13.8kv 1000 kva power dry type transformer would equip a protection enclosure, of which the material and IP standard would be customized by the demand from terminal clients.

Testing Center:

To ensure each 11kv 13.8kv 1000 kva power dry type transformer is ready for use, Wenzhou XiFa electric would fully follow the requirement from IEC 60076-11 to inspect electrical and insulation performance on each cast resin transformers, and supply a factory test report in paper form with each cast resin transformers or in pdf form sending directly to clients. The result of tested dry type transformer is restore in computer which could dating back to the date of WenZhou XiFa founded.

Testing Center

Test Waiting Area

Transformer in Testing

Product Designing Feature:

In the 11kv 13.8kv 1000 kva power dry type transformer, the high voltage coils generally adopt the "segmented cylindrical" structure, while the low voltage coils generally use the "copper foil winding" structure.  the engineering reasons for such designs could be show as the below.

Foil Winding Machine

Winding Workshop

Transformer in Winding

From the perspective of material properties and current carrying capacity, the high voltage side of a 11kv 13.8kv 1000 kva power dry type transformer has a high voltage (11kV or 13.8kV) and a small current (approximately 50A), and the segmented cylindrical structure wound with round copper wires is conducive to achieving high insulation. while the low voltage side of a 11kv 13.8kv 1000 kva power dry type transformer has a low voltage (400V) and an extremely large current (approximately 1440A), the copper foil winding can provide sufficient current carrying cross section, and fundamentally eliminates the circulating loss caused by parallel connection of multiple strands of wires, ensuring uniform current distribution.

Casting Winding

Transformer Core

Protection Cover IP20

From the perspective of electromagnetic force distribution and short circuit resistance, during a short circuit, the inner low voltage coil mainly bears the radial compressive force, and the overall rigid structure wound with copper foil has extremely strong compressive resistance and is not prone to deformation. While the outer high voltage coil mainly bears the radial tensile force, the segmented cylindrical structure divides the axial height into multiple segments, effectively dispersing the axial force accumulation, significantly improving the 11kv 13.8kv 1000 kva power dry type transformer’s ability to withstand short circuit impact.
