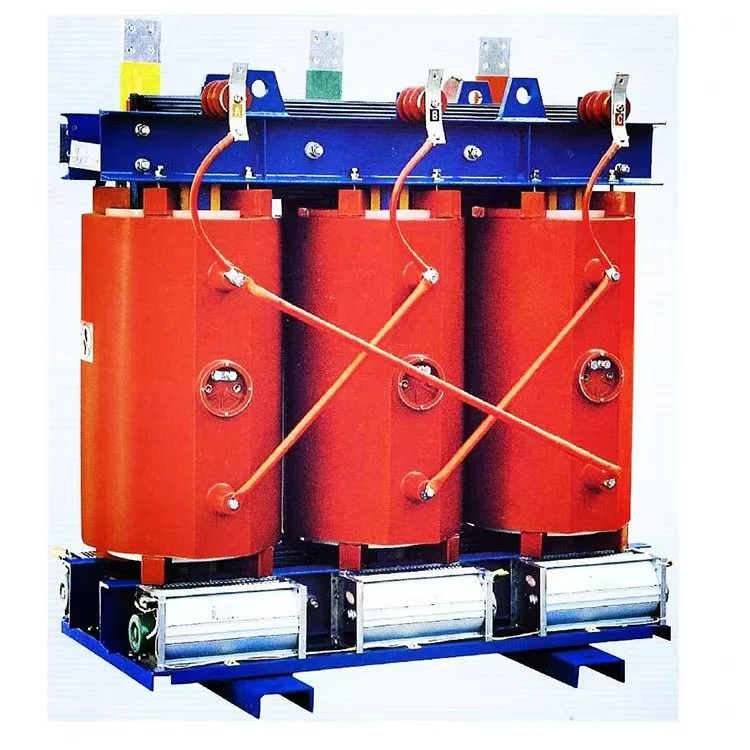

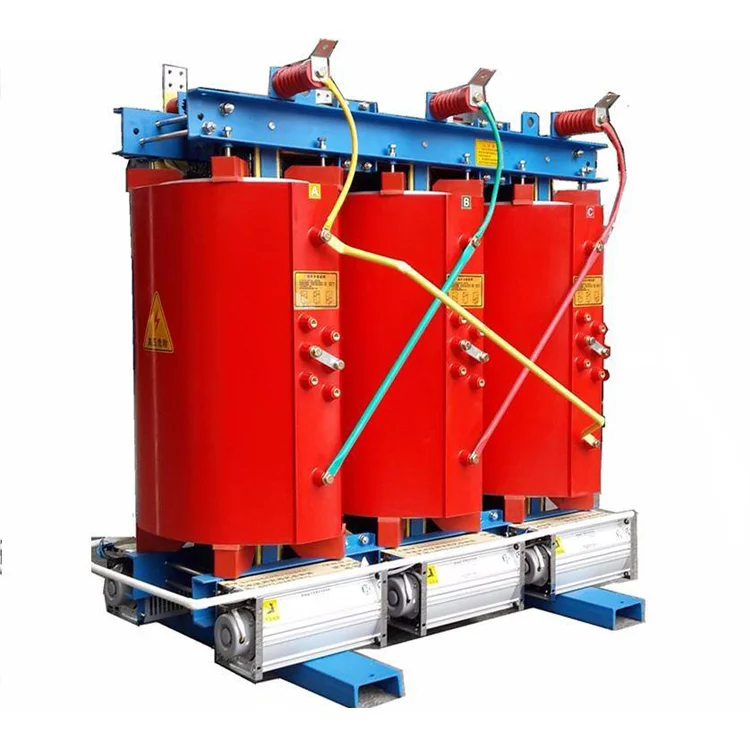

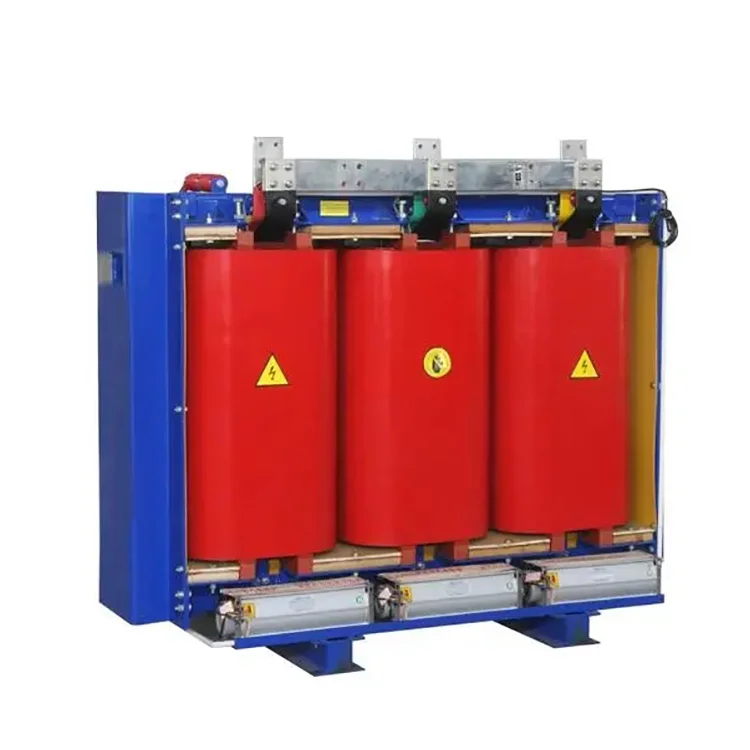

11kv 415v 1600 Kva Cast Resin Dry Type Transformer

11kv 415v 1600 kva cast resin dry type transformers do not use liquid cooling mediums such as mineral oil. Instead, the windings and core of a dry type transformers are either directly exposed to the air or encapsulated in solid insulating materials such as resin.

This design offers advantages like fire resistance, explosion safety, and environmental friendliness, which makes it especially suitable for locations with high safety requirements, such as high rise buildings, subways, hospitals, and data centers.

Key Features of a cast resin dry type transformer:

1. High Safety：With no flammable oil used, 11kv 415v 1600 kva cast resin dry type transformers perform well in fire prone environments and release no toxic gases.

2. Eco Friendly： a 11kv 415v 1600 kva cast resin dry type transformer does not need to dispose of used oil, which reduces environmental impact.

3. Low Maintenance： a dry type transformer does not need regular oil level checks or oil changes, which has a lower upkeep costs.

4. Adaptability：it is ideal for indoor use and substations; typically the protection level is rated IP20 for general indoor applications.

5. Flexible Cooling: Common methods include natural air cooling (AN) and forced air cooling (AF), which can switch automatically based on load.

Key Technical Parameters of a 11kv 415v 1600 kva cast resin dry type transformer：

Typical specifications include primary voltage, secondary voltage, no load loss, load loss, frequency, winding type, and number of phases. For instance, the 11kv 415v 1600 kva cast resin dry type transformer is a common model in distribution systems. Its no load and load losses directly affect operating efficiency and budgets. The selection considerations could be showed as the below:

1. Load Characteristics： Choose the right capacity and cooling method based on actual load demands.

2. Installation Environment： Ensure good ventilation and avoid high temperature or humidity that could affect performance.

3. Energy Efficiency Standards： Keep an eyes on no load and load losses, and options for models meeting efficiency standards to cut operating costs.

4. Protection Features： Devices like thermostats and temperature controllers help prevent overheating damage.

Product Parameters:

Producing Equipment

Semi Finished Product

Protection Enclosure IP21

Transformer Core

Transformer Winding

Test Center

Winding Workshop
