SCB9 1600 KVA 10kV Dry Type Power Transformer

In modern power distribution networks, selecting the right transformer is critical for safety, efficiency, and long term reliability. For commercial complexes, industrial plants, and high rise buildings, the SCB9 1600 kVA 10kV dry type power transformer has become an industry standard. At Wenzhou Xifa Electrical Equipment Co., Ltd., we specialize in manufacturing high performance dry type power transformer that meet the strict demands of today’s electrical grids.This transformer is designed for indoor installations where fire safety and environmental cleanliness are most important. Unlike oil immersed transformers, the SCB9 1600 kVA 10kV dry type power transformer contains no cooling oil, eliminating the risk of leakage, fire, or explosion.

Send Inquiry

Product Description

The working principle of a SCB9 1600 kVA 10kV dry type power transformer is based on the law of electromagnetic induction. When an alternating current flows through the primary winding of the transformer, it generates a changing magnetic field in the iron core. According to Faraday's law of electromagnetic induction, this changing magnetic field induces an electromotive force (EMF) in the secondary winding, thereby making voltage conversion. Specifically:

Primary winding current generates a magnetic field: As current flows through the primary winding, it produces an alternating magnetic field, which creates a magnetic flux within the iron core.

Magnetic flux induces voltage in the secondary winding: This magnetic flux is transferred to the secondary winding through the iron core, generating an electromotive force in the secondary winding, which in turn produces an output voltage.

Voltage conversion: By adjusting the turns ratio between the primary and secondary windings, different voltage conversions can be achieved. In a SCB9 1600 kVA 10kV dry type power transformer, the turns ratio is fixed, The designer will determine an appropriate turns ratio based on the capacity and the primary voltage.

Heat dissipation principle: Since SCB9 1600 kVA 10kV dry type power transformer do not use oil as a cooling medium, they rely on air circulation to dissipate heat from the windings and the iron core. For this reason, SCB9 1600 kVA 10kV dry type power transformer are generally designed with ventilation openings and cooling fins, allowing heat dissipation through natural air convection.

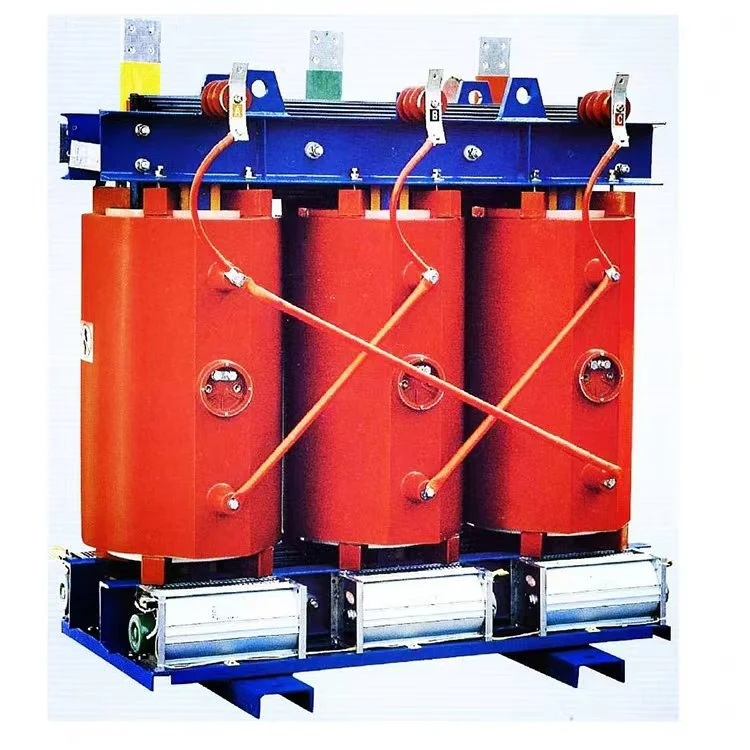

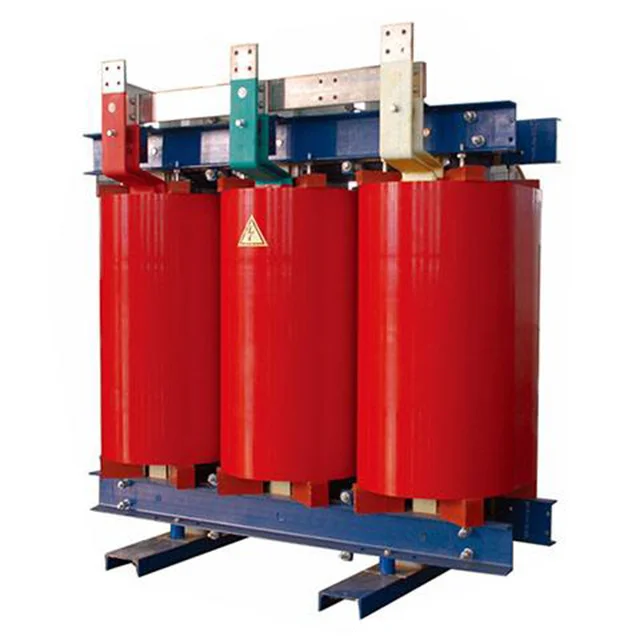

Scb9 1600 Kva 10kv Dry Type Power Transformer

Product Parameters:

Name	SCB9 1600 kVA 10kV dry type power transformer
Rated Capacity	1600kva
Primary voltage	10KV
Secondary voltage	0.4/0.415 kV
Insulation material	Cast resin
Vector Group	Dyn11 Yyn0
No-load Loss (P0)	1200±15%
Load Loss (Pk) @ 120°C	6200±15%
Impedance Voltage (Uk)	4%
Insulation Class	CLASS F or H
Cooling method	ONAF ONAF
Partial discharge	Less than 10pc
enclosure	With(IP20,Cold rolled steel or Stainless steel)/without

Product after sales service

In the 20 years of transformer manufacturing experience at Wenzhou Xifa Electrical Equipment Co., Ltd., we have not had a single after-sales case caused by quality issues.As long as the transformer operates under normal load conditions, its service life is 25 to 30 years

Under the condition of no long term overload, our SCB9 1600 kVA 10kV dry type power transformer has a warranty period of 2 years.If any abnormal situation occurs with the transformer, our engineers are also available 24/7 to provide online guidance services.
