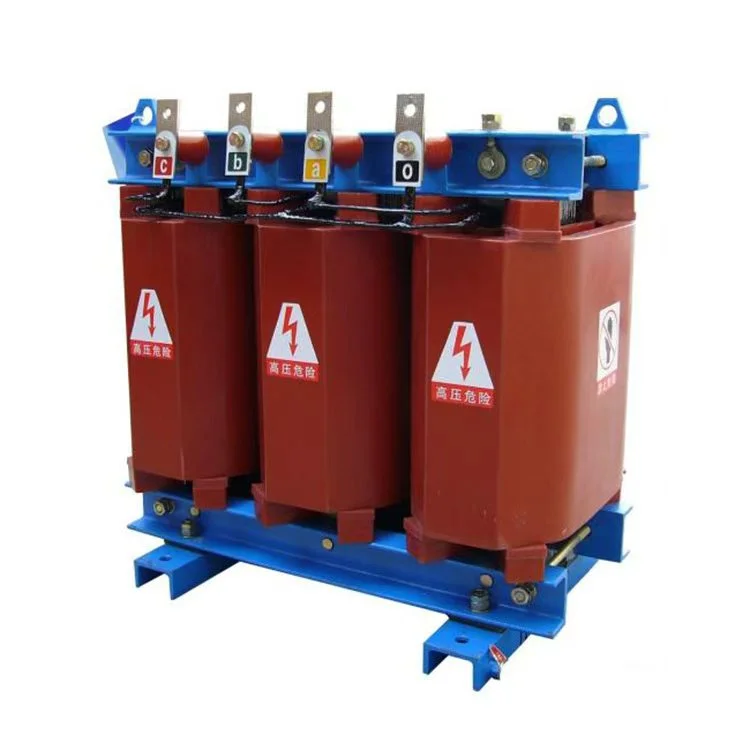

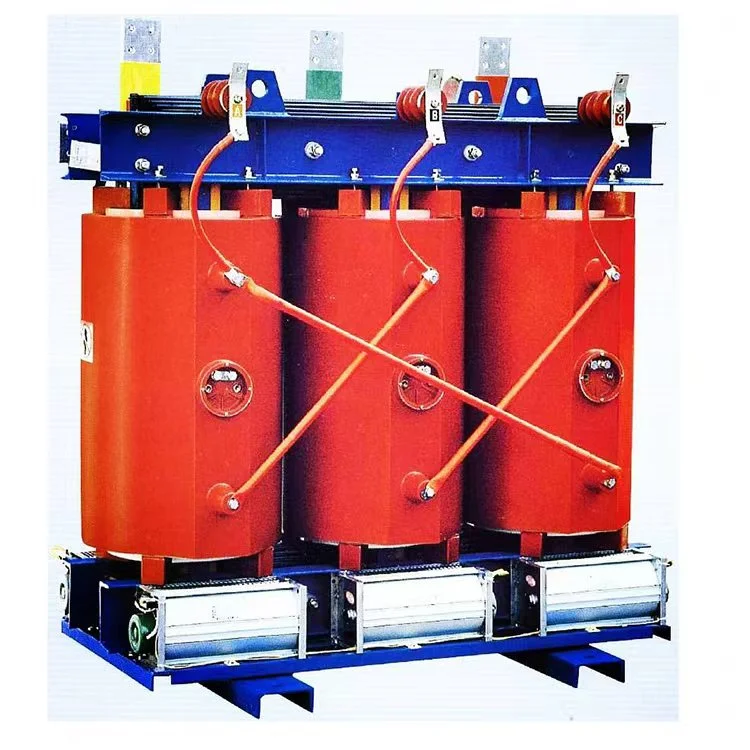

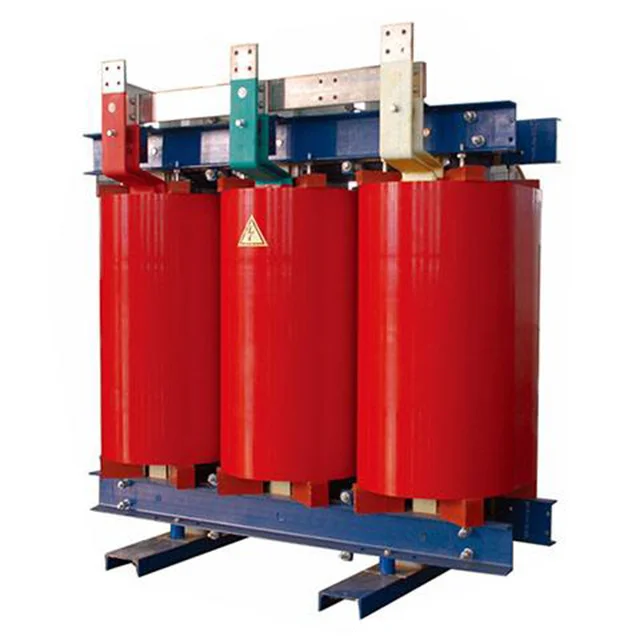

Scb10 Cast Resin Dry Type Transformer 630kva

The core and clamping parts of the 630kva scb10 cast resin dry type transformer are specially treated with protective resin, having an aesthetically good appearance. The low voltage winding uses foil winding, while the high voltage adopts a segmented multi layer cylindrical structure, which ensures 630kva scb10 cast resin dry type transformer balanced ampere turn distribution, low leakage flux, high mechanical strength, and strong short circuit withstand capability.The equipped low noise cooling fan and intelligent temperature controller enable the 630kva scb10 cast resin dry type transformer  to have fault alarm, over-temperature alarm, start-stop protection, and can also achieve microcomputer remote monitoring.

scb10 cast resin dry type transformer 630kva have notable "three lows and three highs" characteristics: low loss, low noise, and low partial discharge; as well as high mechanical strength, high electrical strength, and high moisture proof and corrosion proof performance.

1.The cast coil has greater mechanical strength and stronger short circuit withstand capability compared to oil immersed transformer, and will not deform under the effect of short-circuit electromagnetic forces.

2.Since the withstand voltage of epoxy resin is much higher than that of air (approximately 3.5 to 4 times), and its dielectric constant is also higher , 630kva scb10 cast resin dry type transformer exhibits good impulse over voltage withstand performance and a high BIL value.

3.It has exceptional moisture and corrosion resistance, making it particularly suitable for operation in extremely harsh environmental conditions. It can be put into operation after shutdown without the need for drying treatment.

4.Due to vacuum processing and cast molding of the coil, 630kva scb10 cast resin dry type transformer have no bubbles between turns or layers, resulting in the lowest partial discharge level among similar products.

Normal Operating Conditions for 630kva scb10 cast resin dry type transformer

Altitude not exceeding 1000m, indoor use

Ambient temperature: Maximum temperature +40°C

Maximum daily average temperature +30°C

Maximum annual average temperature +20°C

Minimum temperature -5°C

if the climatic conditions in your country are relatively extreme, we can redesign the 630kva scb10 cast resin dry type transformer according to your local climate conditions.Of course, if customers require lower losses and higher insulation levels, customized production is also available.
