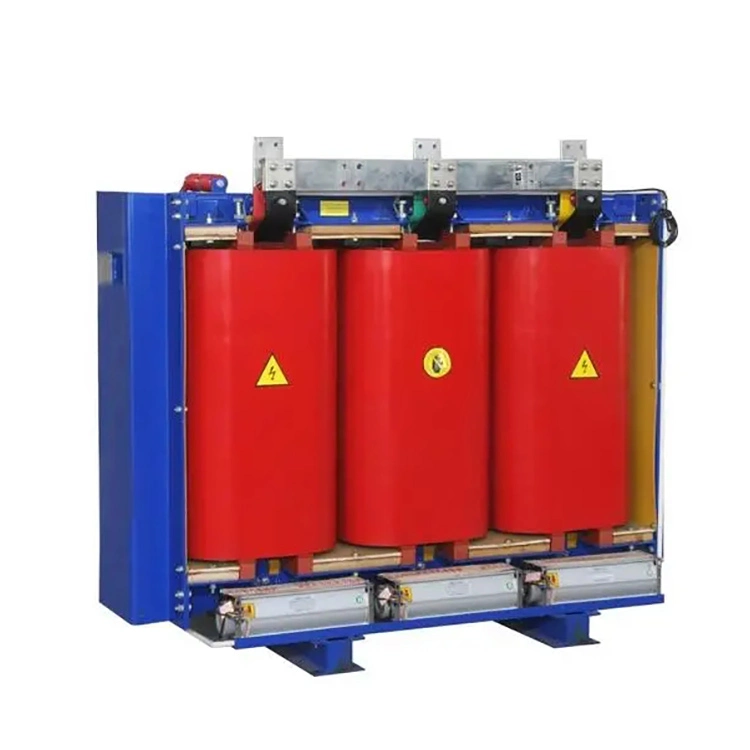

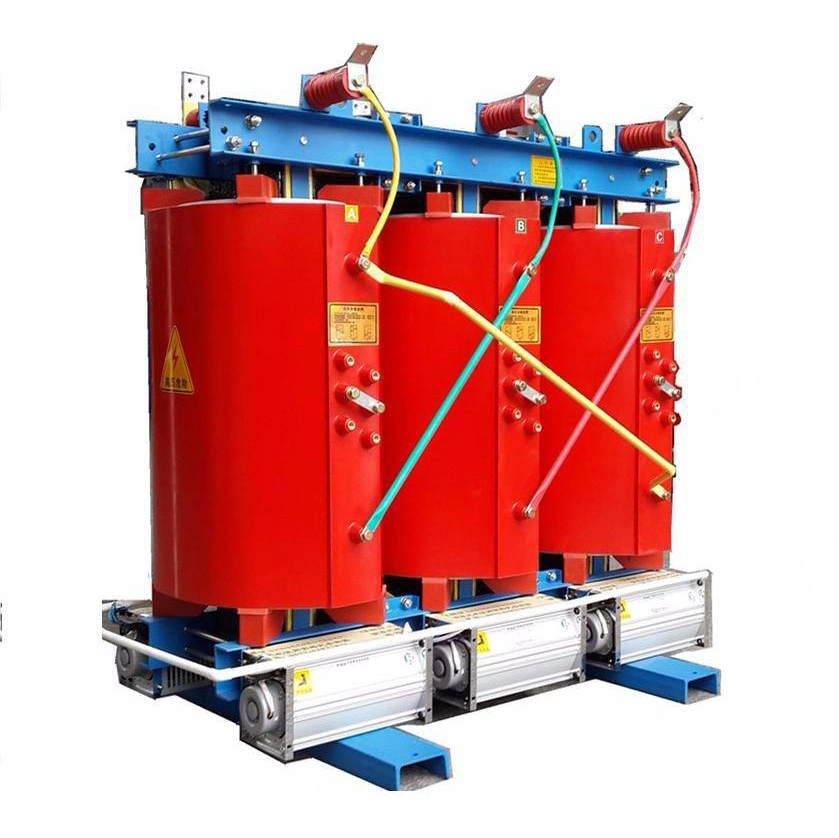

1000kva 10kv 400v Dry Type Power Transformer

Wenzhou XiFa electric Power Equipment Co., Ltd has been deeply involved in the Chinese power construction industry for many years, accumulating a profound historical foundation and rich experience. We have also established a mature and stable equipment supply chain system and a professional engineering team.

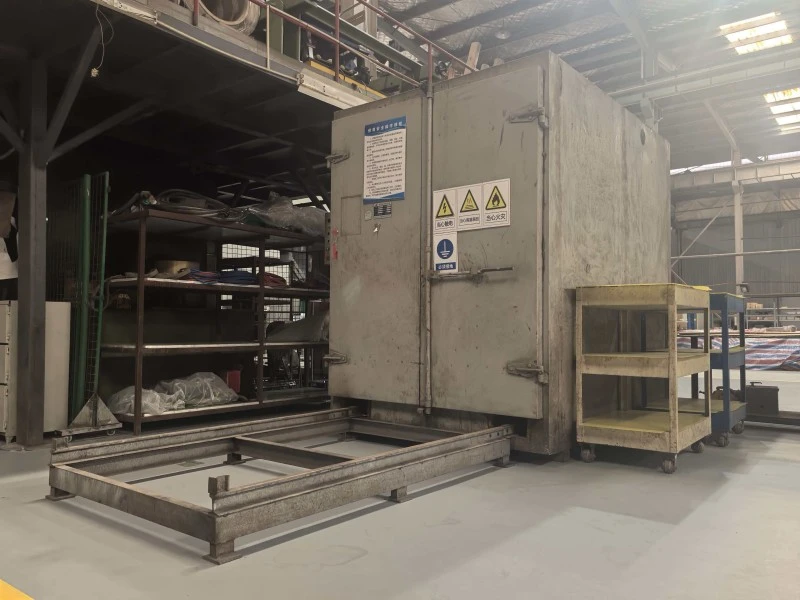

Transformer Oven

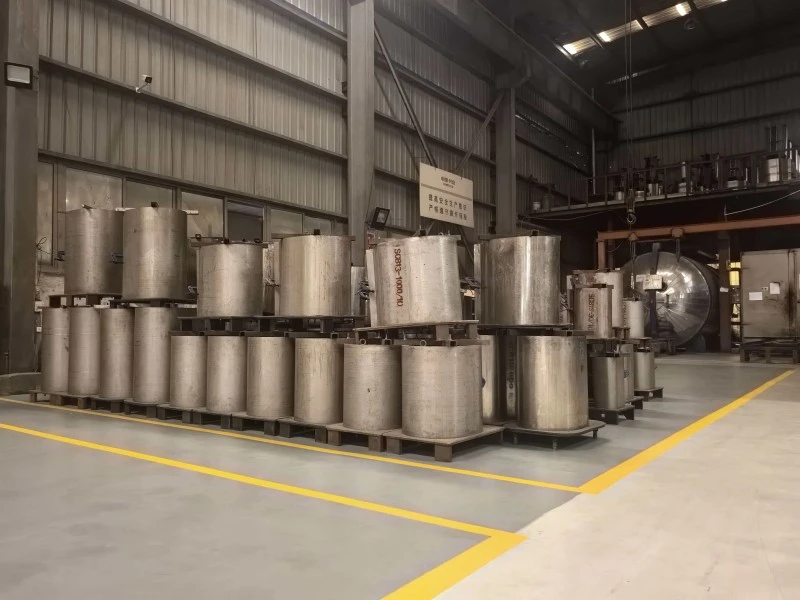

Casting Mould

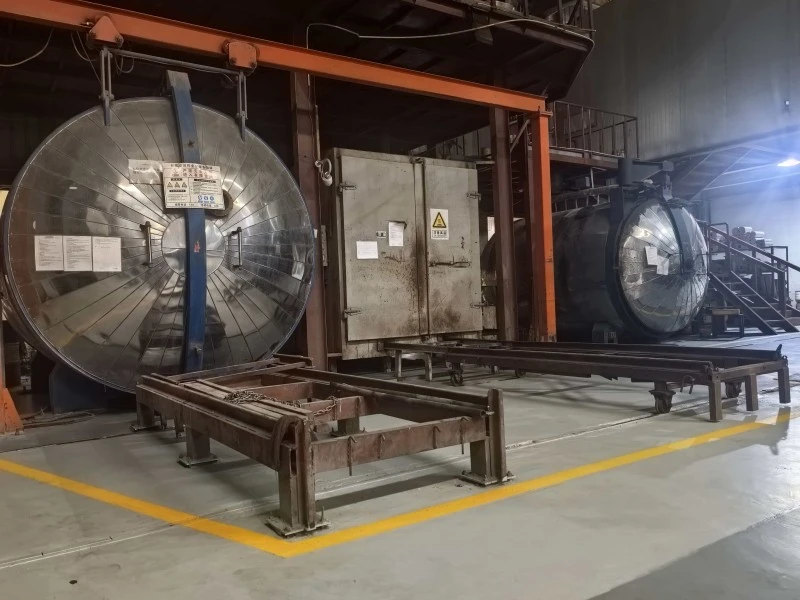

Casting Machine

We have full confidence and the ability to carefully select and provide you with the necessary power equipment. The 1000kva 10kv 400v dry type power transformer we offer is of high quality, strictly adhering to industry standards, and has undergone multiple rigorous quality inspection processes to ensure its outstanding performance, stability and reliability, which are sufficient to cope with various complex and demanding power construction environments.

Throughout the entire procurement and supply process of 1000kva 10kv 400v dry type power transformer, we will also provide you with a thorough service, covering aspects such as transportation and delivery arrangements, installation and commissioning guidance, and after sales maintenance support, to ensure that you are satisfied during the use of the equipment we provide.

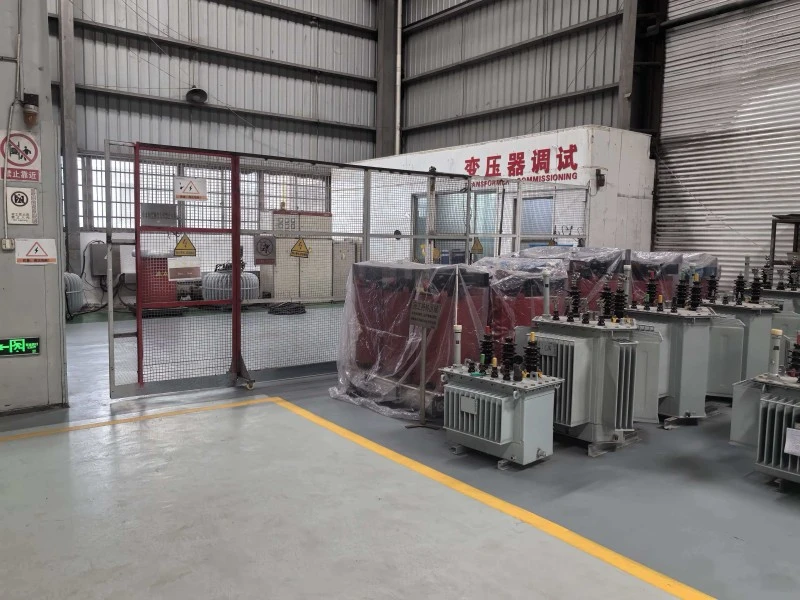

Testing Center

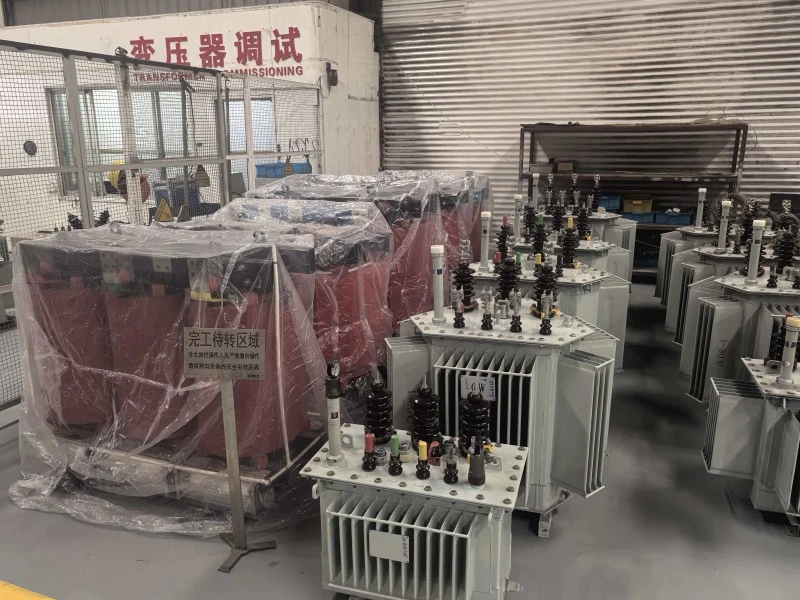

Test Waiting Area

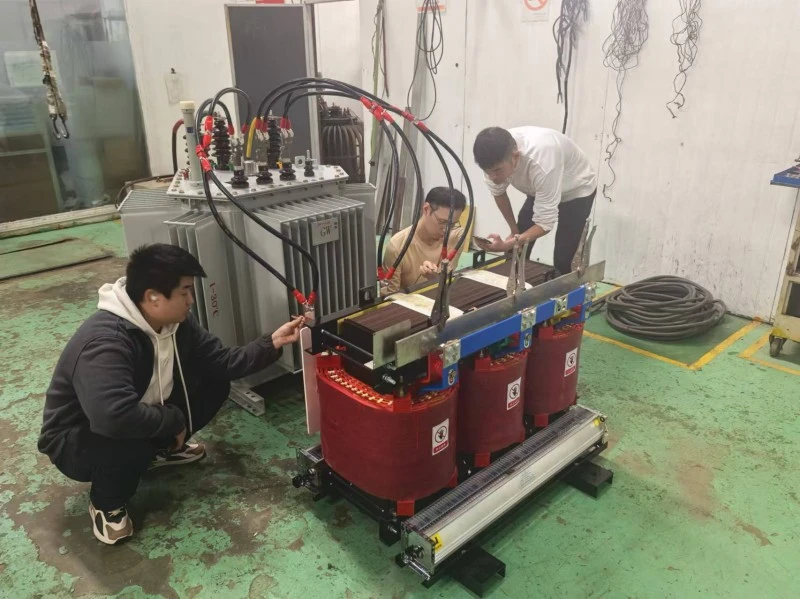

Transformer in Testing

Technical parameter:

Dyn11 Transformer Performance:

The zero sequence magnetic flux, zero sequence current circulation circuits, and the electromagnetic structure of the windings have fundamental differences, which directly determine the zero sequence tolerance and the single phase short circuit capability.

1. Zero sequence capability

Yyn0: Both high and low voltage of 1000kva 10kv 400v dry type power transformer  are star configurations. The zero sequence current at the low voltage side cannot form a loop at the high voltage side, converting into zero sequence flux, which generates eddy currents and overheating in the core and metal components.

Dyn11: The high voltage is a delta winding, and the zero sequence current will form a circulating current within the delta loop, significantly reducing the zero sequence flux and avoiding local overheating. The zero sequence carrying capacity is significantly enhanced.

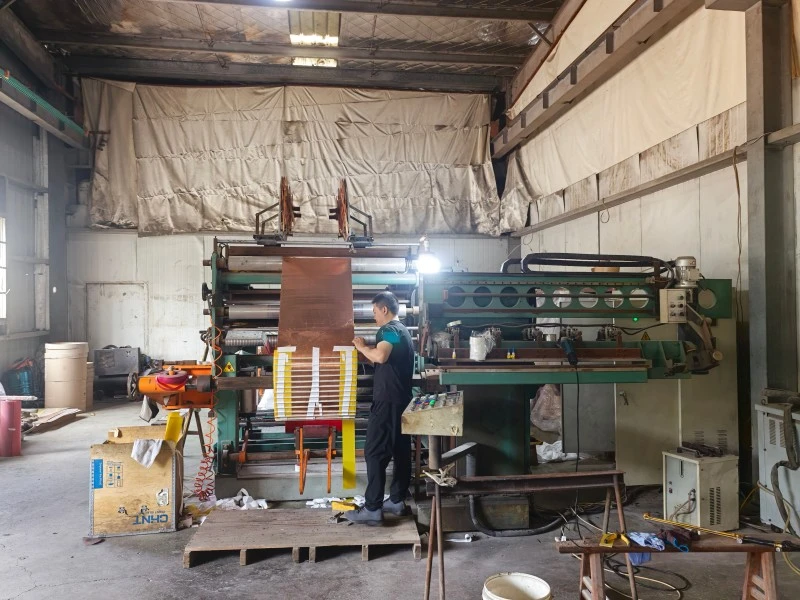

Foil Winding Machine

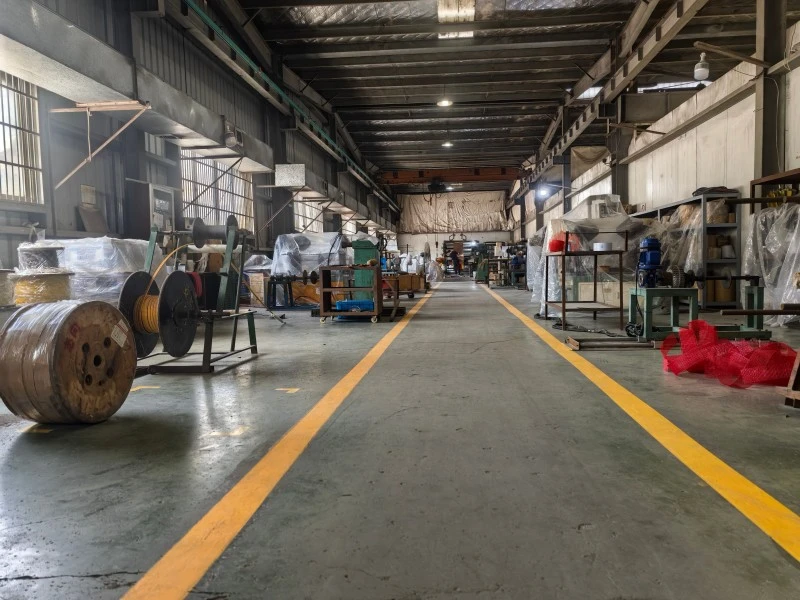

Winding Workshop

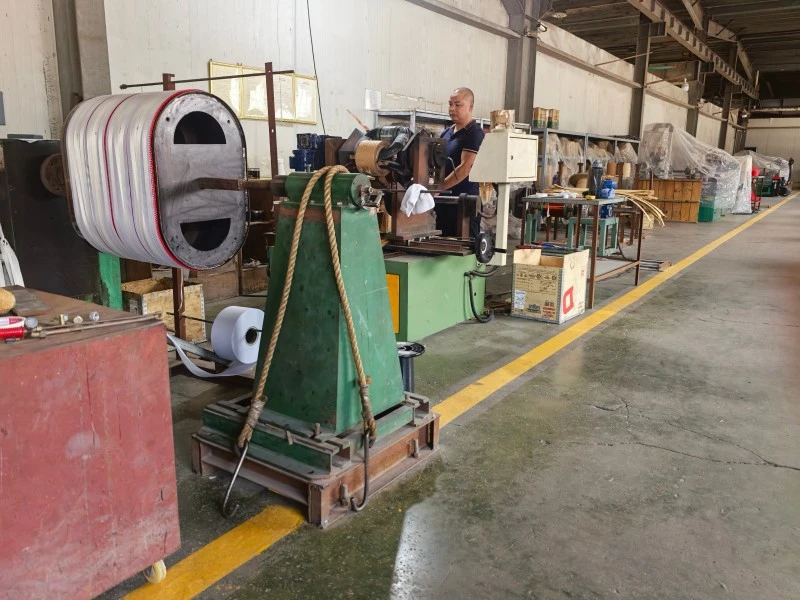

Transformer in Winding

2. Single phase short circuit performance

Dyn11 can limit the single phase short circuit current, and the three phase force is more evenly distributed, the electric force borne by the windings is smaller, and the dynamic and thermal stability margin is higher; at the same time, there is no zero sequence additional loss, which can effectively protect the epoxy insulation of the 1000kva 10kv 400v dry type power transformer and reduce the risk of cracking.

3. In addition, the delta winding can also filter out the third harmonic, reducing additional losses, and the operational reliability is stronger.
