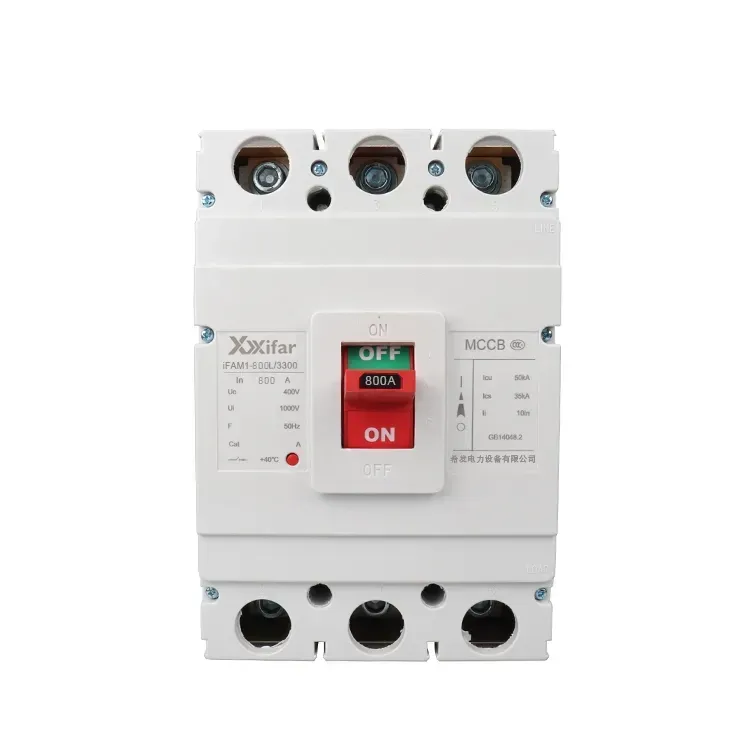

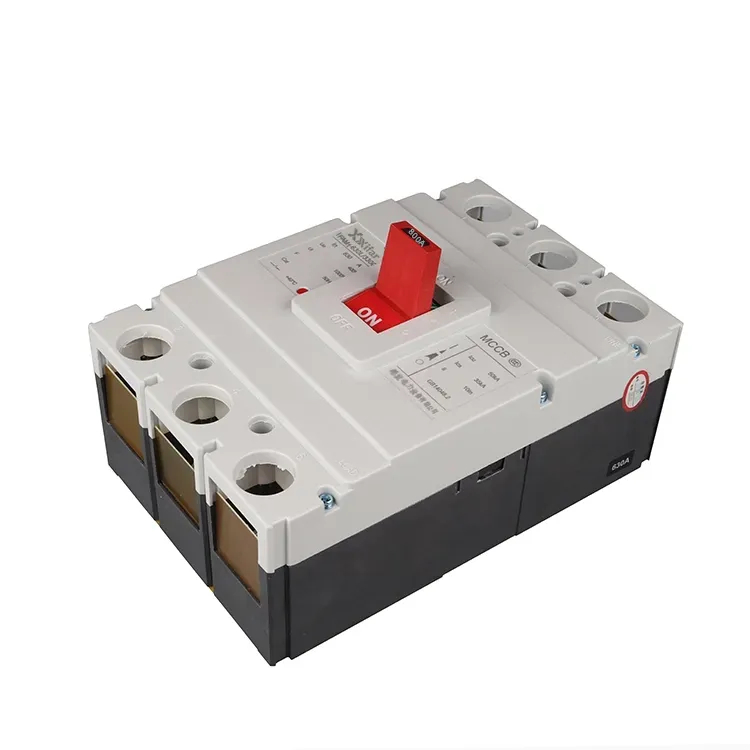

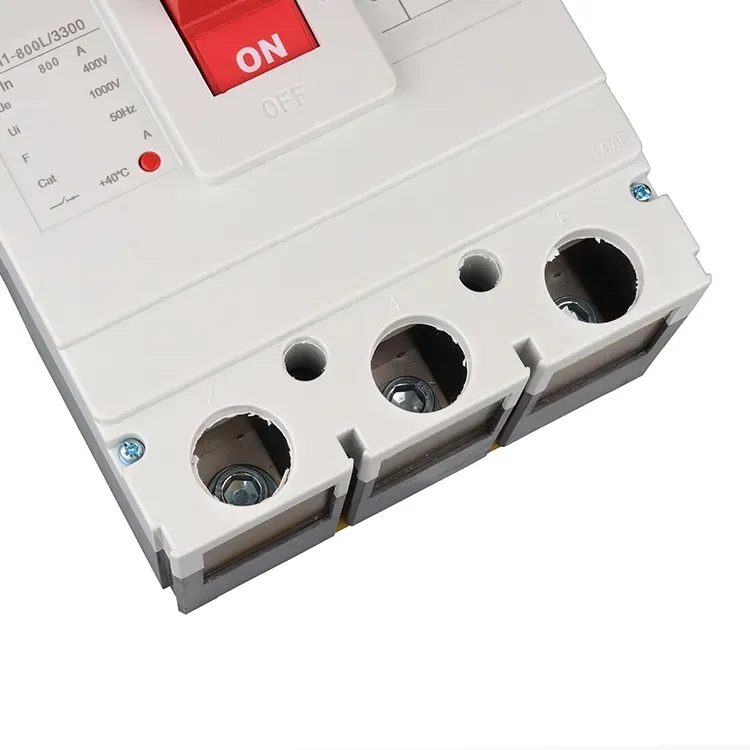

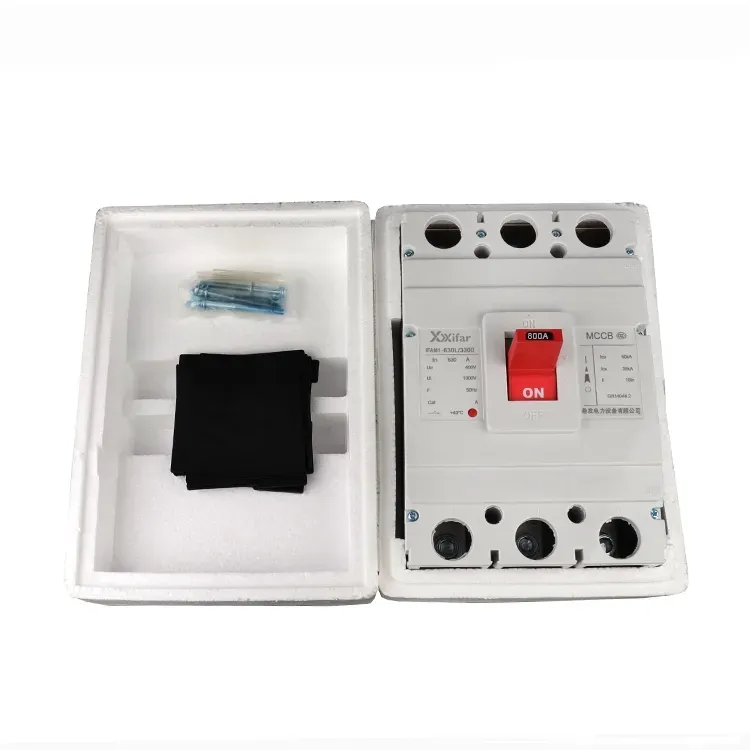

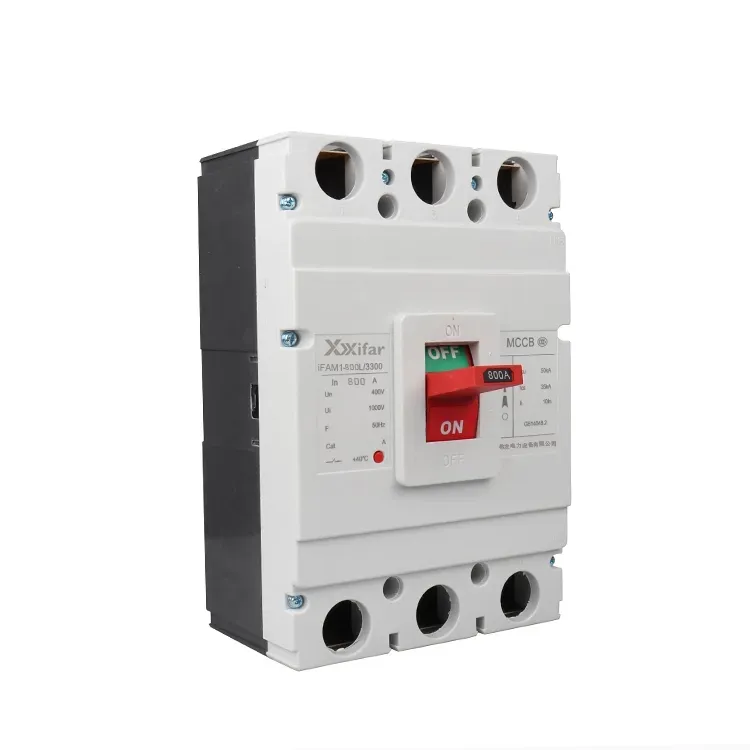

400v 800a Molded Insulated Case Circuit Breaker

A 400v 800a molded insulated case circuit breaker MCCB is a type of low voltage circuit breaker that features a molded insulating housing with air insulation. It is widely used in power distribution systems to interrupt or isolate normal currents as well as fault currents within the rated range, which ensures the safety of electrical lines and equipment. the internal structure of a 400v 800a molded insulated case circuit breaker MCCB typically includes moving and fixed contacts, an operating mechanism, and trip units such as thermal and magnetic releases. These components enable the 400v 800a molded insulated case circuit breaker to provide both long time delay and Instantaneous protection. Regular trip types of a 400v 800a molded insulated case circuit breaker include magnetic only, thermal magnetic, and electronic releases.

Definition of molded insulated case circuit breaker

A 400v 800a molded insulated case circuit breaker MCCB is positioned between miniature circuit breakers, which is also called MCBs and air circuit breakers, which is named ACBs, in terms of capacity and application. A 400v molded insulated case circuit breaker generally covers a current range from 10A to 1600A. With either thermal magnetic or electronic trip units enclosed in a molded case, it is suitable for protection and control at various levels of a low voltage distribution power system.

Molded insulated case circuit breaker Functional and Characteristics

Thermal magnetic trip units combine a bimetal element for overload protection with a magnetic mechanism for short circuit protection. Electronic trip units, on the other hand, allow more precise adjustment of protection settings, typically within a 10%–20% tolerance range. They are particularly useful in motor circuits where the 400v 800a molded insulated case circuit breaker MCCB must ride through high inrush currents, with magnetic pickup levels often set above ten times the rated current.

Molded insulated case circuit breaker Applications

A 400v 800a molded insulated case circuit breaker MCCBs can be used as feeders in primary, secondary, or tertiary distribution systems, and are also suitable as incoming breakers in secondary and tertiary levels. Their ultimate short circuit breaking capacity, usually ranging from 36kA to 120kA, is significantly higher than that of miniature circuit breakers, which typically fall between 6kA and 10kA.

Molded insulated case circuit breaker Selection Considerations

Key factors in selecting an MCCB include the frame size and rated current, such as 100A or 250A, the trip unit settings, such as Ir = 1.2In or 5In, the breaking capacity, and the required trip curve characteristics, such as long time and short time delay functions.

Molded insulated case circuit breaker Technical Comparison

Thermal magnetic 400v 800a molded insulated case circuit breakers have a relatively simple structure but lower accuracy, with tolerances around ±20%. Electronic trip units, often based on Rogowski coil sensing, offer improved accuracy and temperature compensation, which make 400v 800a molded insulated case circuit breakers better suited for critical circuits or applications requiring selective coordination.

400v 800a molded insulated case circuit breaker parameter:
