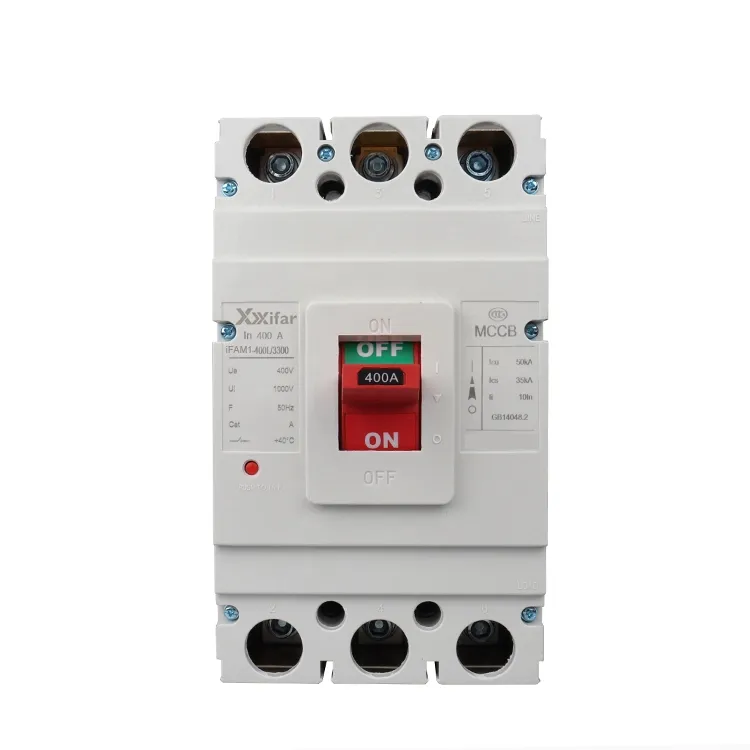

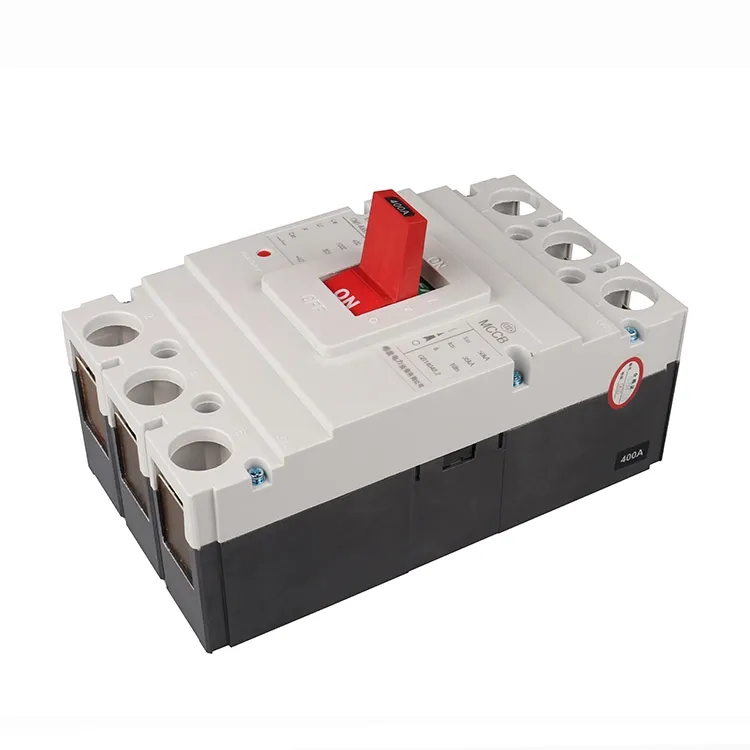

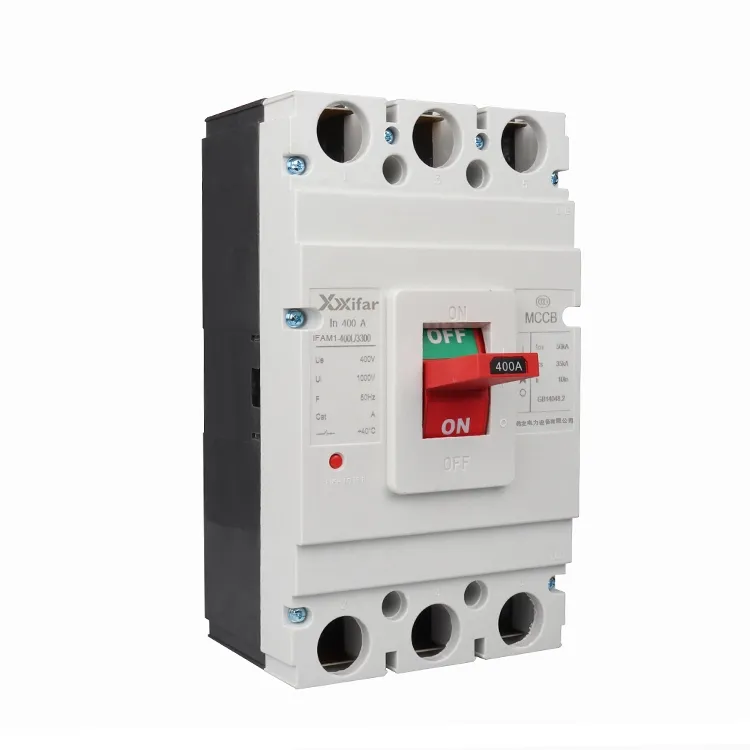

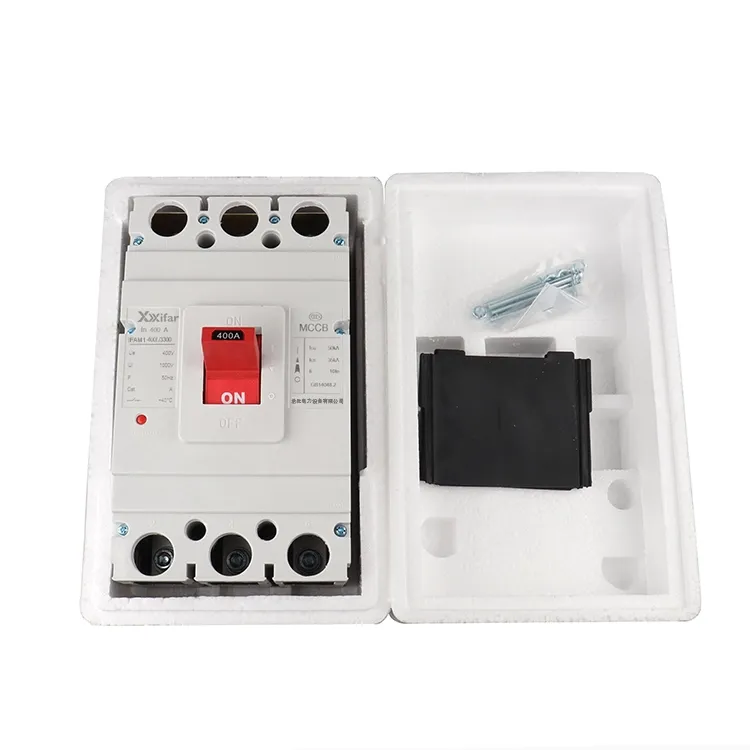

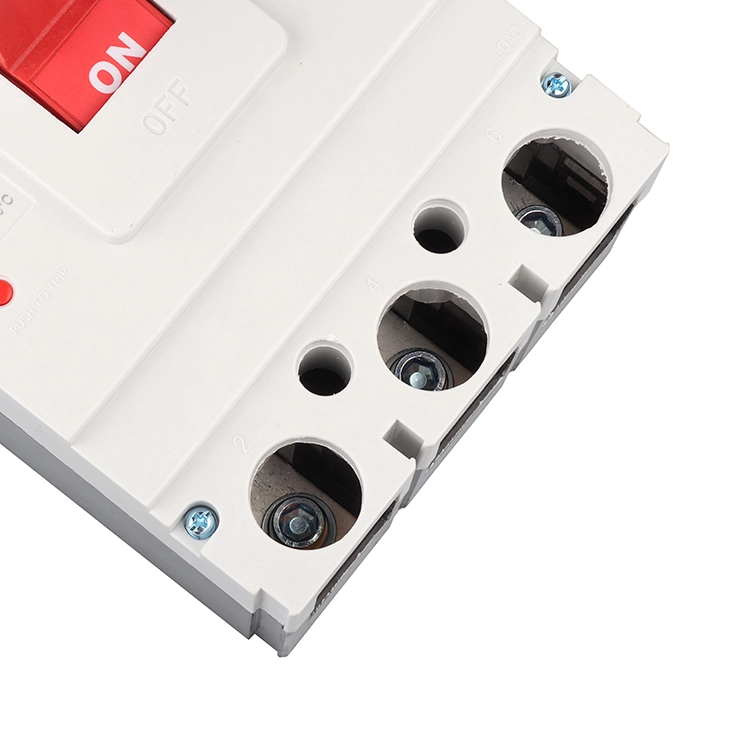

400a Tpn 4p Mccb Circuit Breaker

The 400a tpn 4p mccb circuit breaker mean a 4P 400a mccb circuit breaker or a tpn 400a mccb circuit breaker. The 4P mccb is the advanced product to the tpn 400a mccb circuit breaker, since a 400a tpn mccb only has the isolation function but a 400a 4p mccb has the overload protection and short circuit protection on all 4 poles.

Moreover, a 4P 400A mccb circuit breaker widely apply on the circumstance of which is highly unbalanced system such as lighting system, computer room, UPS power distribution, and neutral isolation required system such as some industrial and medical equipment require that the N line be disconnected during maintenance or switching to avoid potential differences. Fortunately, both 4P 400A mccb and tpn 400A mccb could adapt in the power system like generator and backup power systems, where the neutral pole current has no significant impact.

Product Parameter:

FAQ:

Q: What is the main difference between a 400a tpn 4p mccb circuit breaker and a 400a tp 3p mccb circuit breaker?

A: A 400a tpn 4p mccb circuit breaker provides protection and switching for all three phases and the neutral conductor. It is typically used in three phase four wire systems with unbalanced or mixed loads, where the neutral must also be safely isolated.

Q: Why is the neutral pole protection important?

A: In systems with heavy single phase loads or unbalanced conditions, the neutral conductor may carry significant current. Protecting and disconnecting the neutral avoids overheating, back-feeding, and potential equipment damage.

Q: What is the typical interrupting capacity of a 400a tpn 4p mccb circuit breaker?

A: Depending on the model, breaking capacity usually ranges from 35 kA to 85 kA at 415/690V AC. Users should select the rating according to the fault level of the installation.

Q: Does a 400a 4p mccb circuit breaker always protect the neutral conductor?

A: Yes, unlike 400A 3P+N breakers where the N pole may only serve for isolation, in a true 400A 4p MCCB the neutral is equipped with a protection element. Some models even allow different tripping characteristics on the N pole.

Q: What are the common applications of a 4p 400A mccb circuit breaker?

A: 1. Low-voltage distribution panels in commercial buildings;

2. Data centers and hospitals with large single-phase loads;

3. Generator and transformer connections requiring neutral isolation;

4. Industrial systems with mixed three-phase and single-phase equipment.
