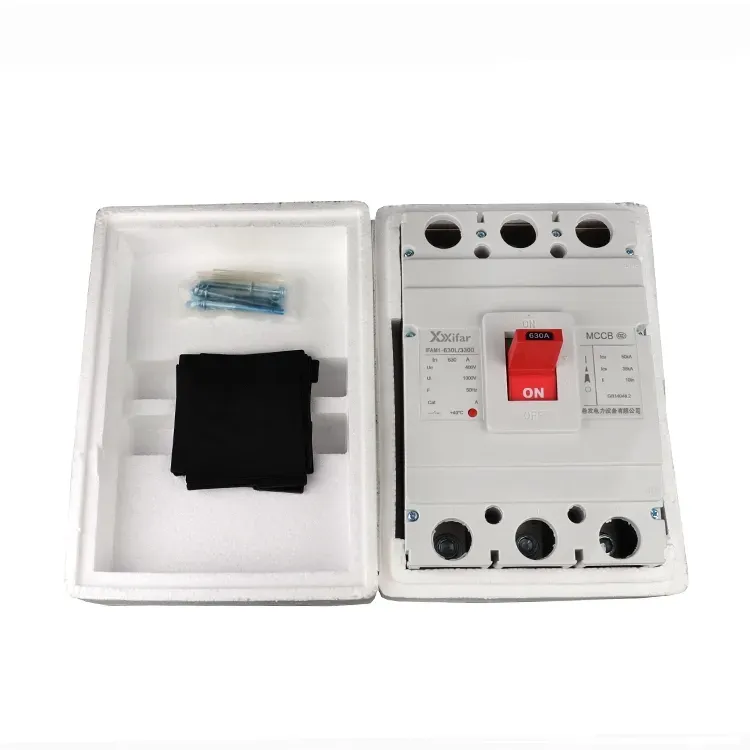

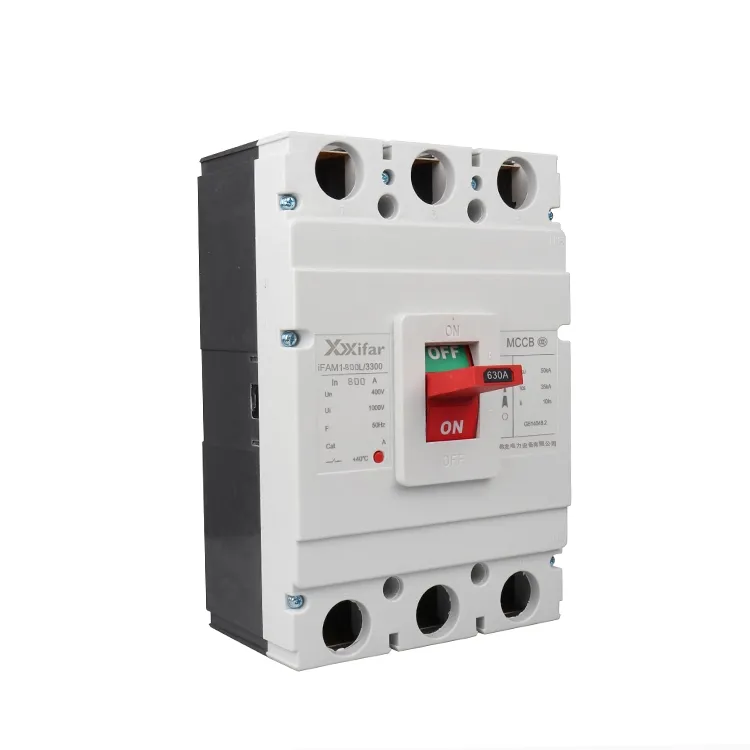

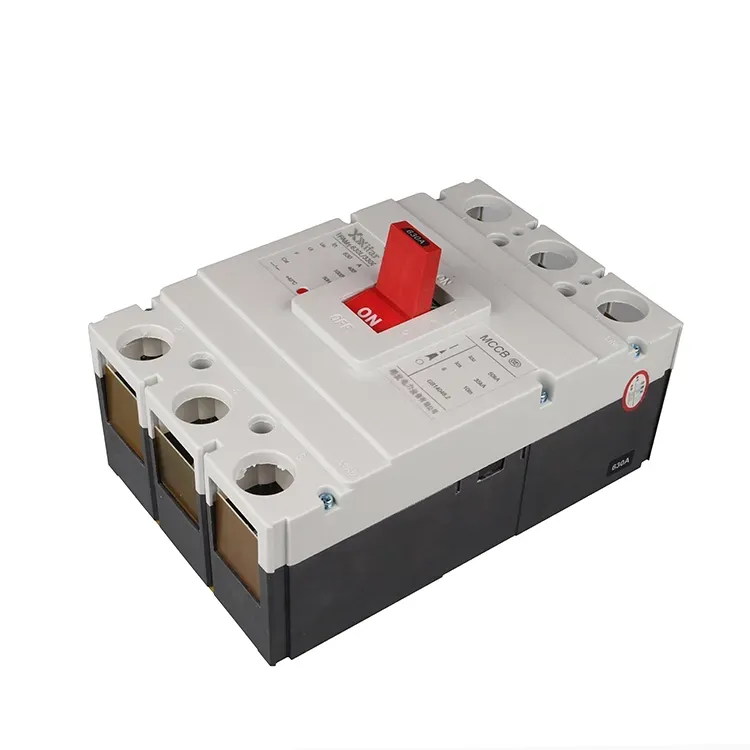

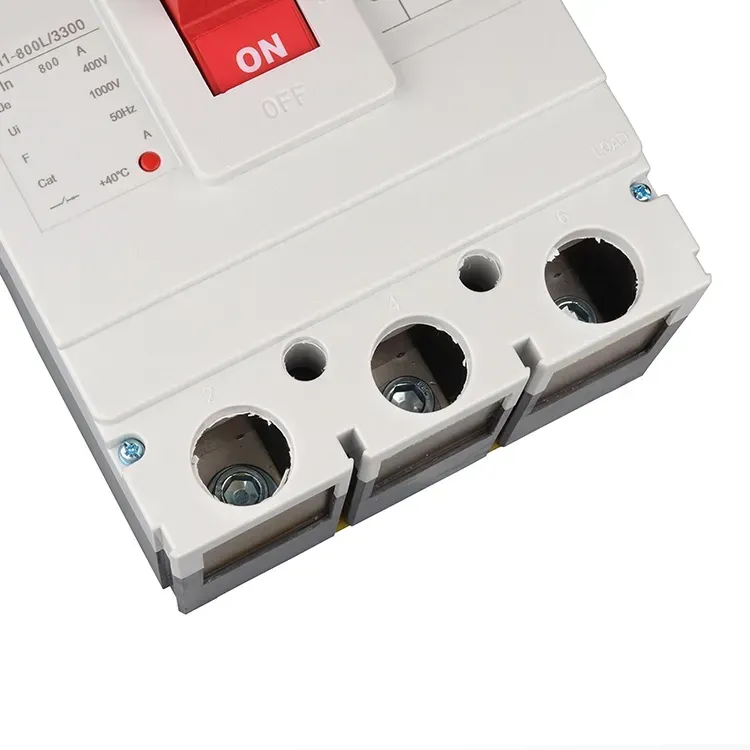

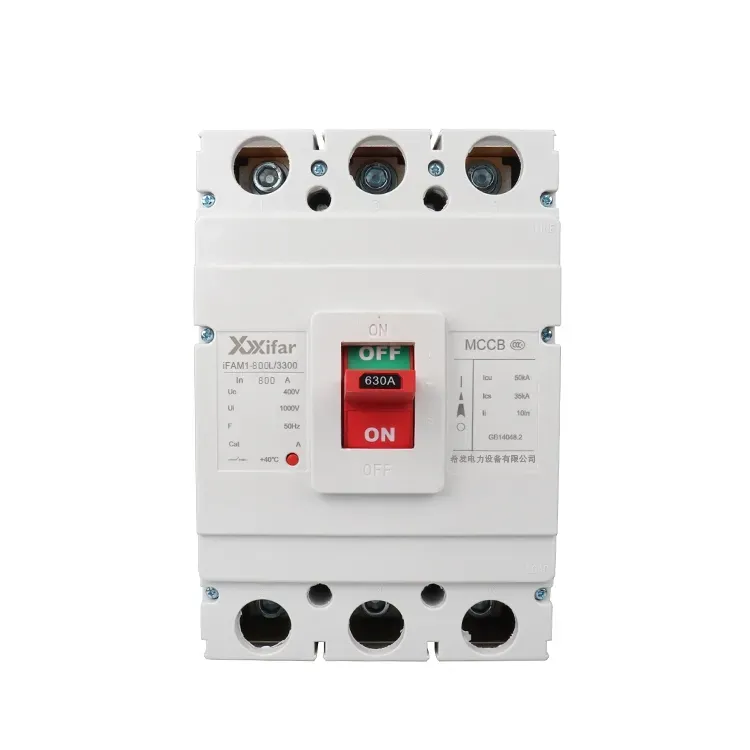

The 630a tpn mccb with rcd protection is a molded case circuit breaker which is three phase + neutral 630A rated current with residual current device. The main function of a 630a tpn mccb with rcd protection can be show as the below:
1. Protection against electric shock
Detects leakage currents as small as 30 mA and disconnects the supply within milliseconds, reducing the risk of fatal injury.
2. Fire prevention
Helps prevent electrical fires caused by leakage currents that could heat up wiring or flammable materials.
3. Additional protection for equipment
In some applications, it provides extra safety for sensitive equipment by preventing damage from insulation failures.
4. Compliance with safety standards
RCD protection is often required by international standards (IEC, NEC, etc.) in residential, commercial, and industrial installations.
|
Rated Frame Current |
630 A |
|
Rated Working Current |
400A/ 630A |
|
Number of Poles |
3 phase + neutral |
|
Frequency |
50 Hz |
|
Rated Working Voltage |
400 V |
|
Delayed reclosing time |
20s -60s |
|
Undervoltage operation value |
165V ± 5% per phase (adjustable) |
|
Overvoltage operation value |
275V ± 5% per phase (adjustable) |
|
Phase failure operation value |
Default 120V ± 5% (adjustable) |
|
Delay time |
0-10 s (adjustable) |
Q: What does TPN mean in MCCB?
A: TPN stands for Triple Pole with Neutral, meaning the MCCB has three current-carrying poles (L1, L2, L3) and one neutral pole for balanced load distribution and safe disconnection.
Q: What is the role of RCD protection in the 630a tpn 4P mccb with rcd protection?
A: The built-in Residual Current Device (RCD) function detects leakage currents to earth and trips the circuit to prevent electric shock hazards and reduce the risk of fire.
Q: What leakage current ratings are available for the 630a tpn 4P mccb with rcd protection?
A: Common sensitivity levels include 30 mA, 100 mA, 300 mA, and 500 mA, depending on whether the application requires personal protection, fire protection, or equipment safety.
Q: How does the 630a tpn 4P mccb with RCD protection improve safety compared to a standard MCCB?
A: A standard MCCB protects against overload and short-circuit currents only, while an MCCB with RCD protection provides enhanced human safety and fire prevention by also detecting earth leakage faults.
Q: What is the difference between a standalone RCCB and an 630a tpn 4P MCCB with RCD protection?
A: A RCCB (Residual Current Circuit Breaker) only provides leakage protection, while an 630a tpn 4P MCCB with RCD protection combines overcurrent, short-circuit, and leakage protection in one device.
