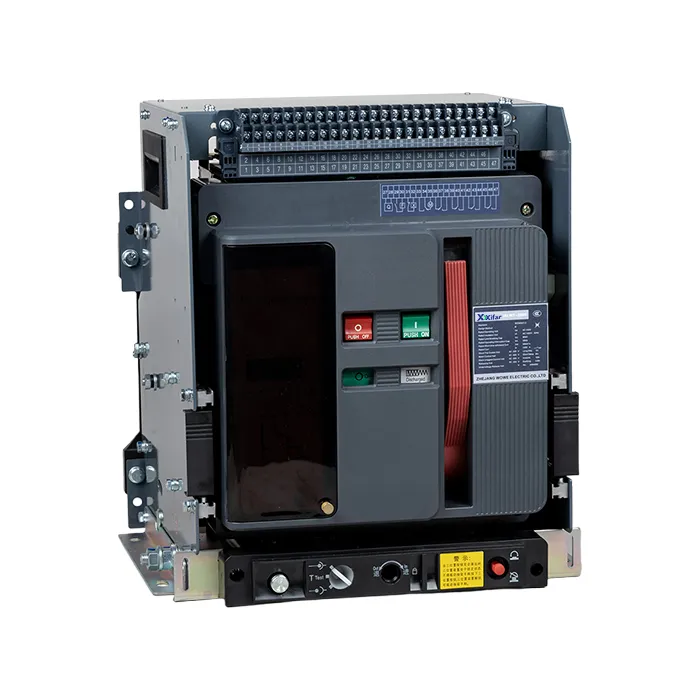

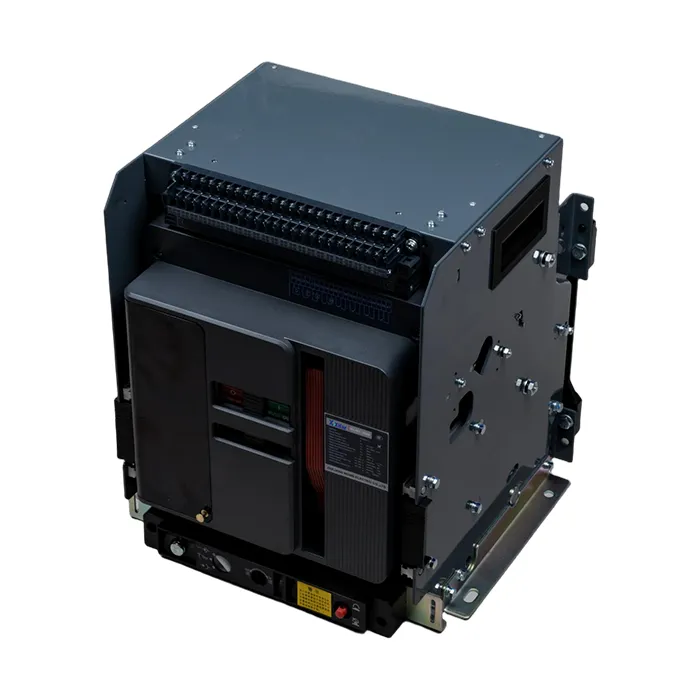

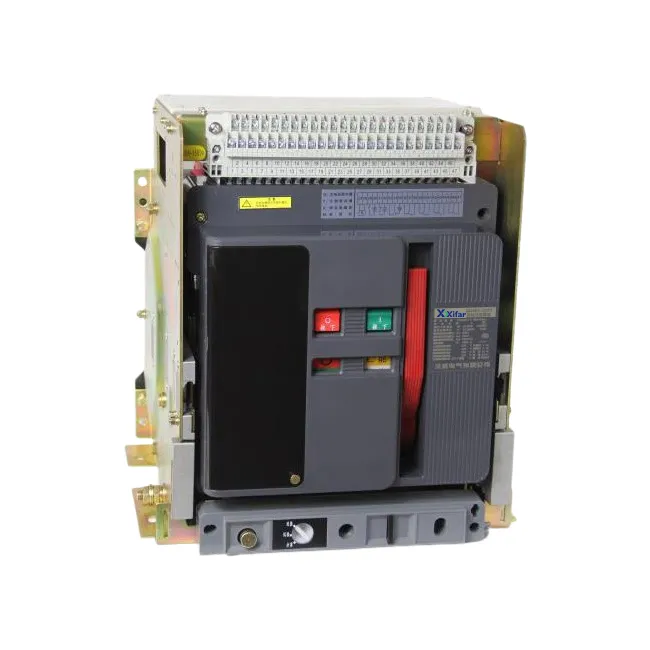

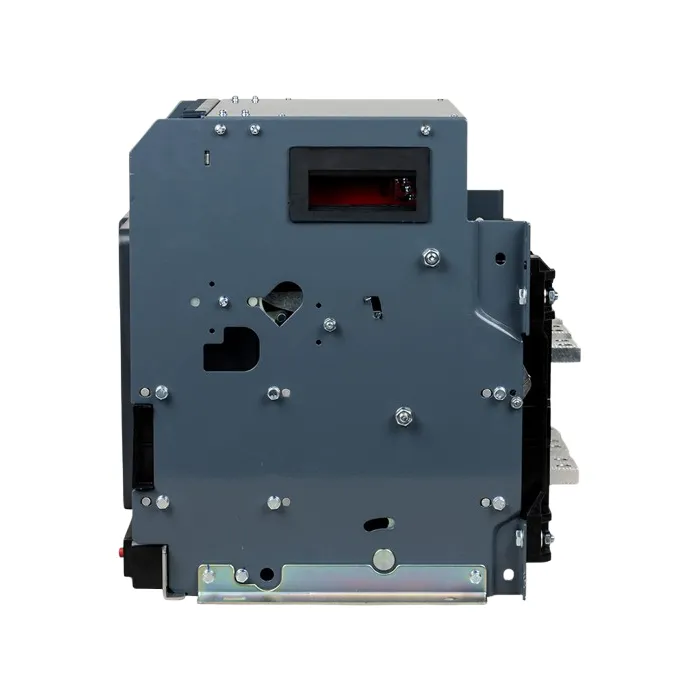

4000 Amp Acb Air Break Circuit Breaker

A 4000 amp acb air break circuit breaker is rated to handle a continuous operating current of up to 4000 amperes. In practical terms, it means the 4000A air circuit breaker can safely control and protect circuits that carry currents at or below 4000 amp.Air circuit breakers of such capacity are typically applied in heavy duty electrical systems, including large motors, transformers, and other industrial installations where high current demand is common.

As a core element of low voltage power distribution, an 4000 amp acb air break circuit breaker provides essential protection by automatically disconnecting the circuit under fault conditions such as overload or short circuit occur. This function helps prevent equipment damage, fire hazards, and ensures the overall safety of the electrical system. Standard protective features of a 4000 amp acb air break circuit breaker include overload, short circuit, and under voltage protection, which allow the breaker to adapt to different operational requirements.

Beyond these basic functions, a 4000 amp acb air break circuit breaker is engineered with a high breaking capacity, to enable it to safely interrupt severe fault currents and stop the fault from propagating further in the network. Many modern designs are also equipped with intelligent control units that support real time monitoring of current and voltage, event recording, and fault diagnosis. These smart features not only enhance protection but also improve the efficiency and reliability of power system operation.

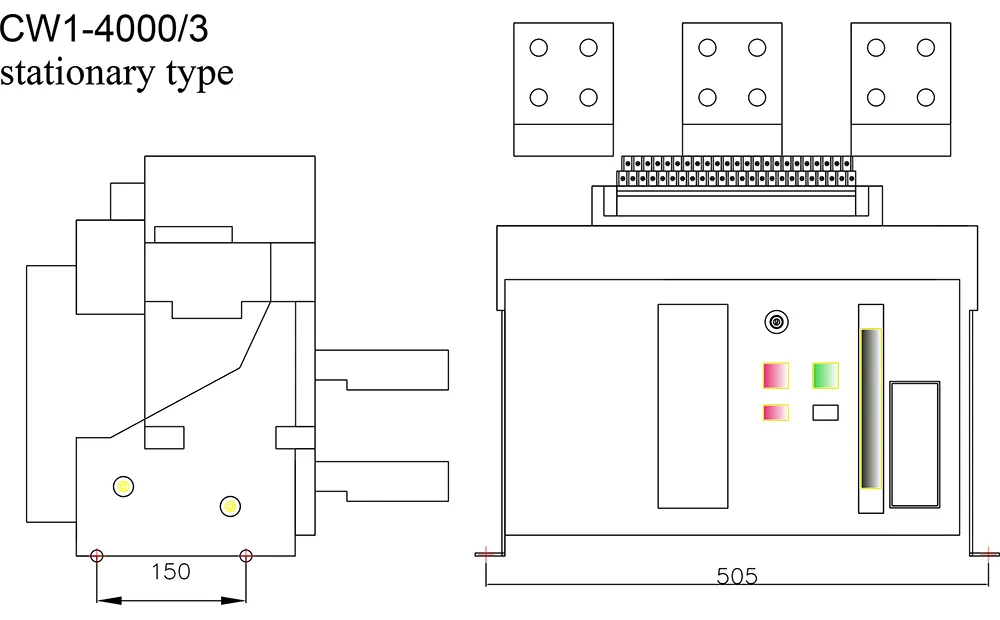

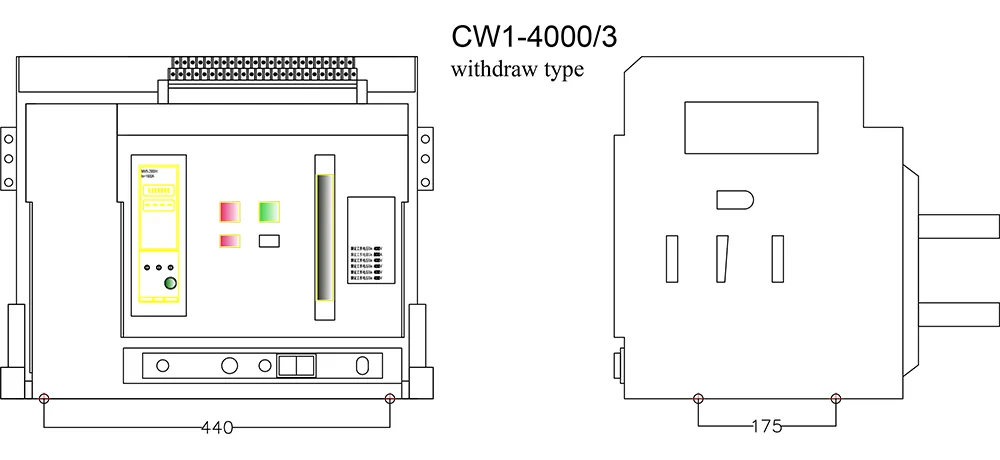

Production Parameter:

Product FAQ:

Q: What maintenance is required to a 4000 amp acb air break circuit breaker?

A: Maintenance Guidelines for 4000 amp acb air break circuit breakers

1. Contact System Maintenance

A. Regularly inspect the contact surfaces for oil contamination or signs of erosion.

B. Clean the contacts using alcohol to ensure a smooth and flat contact surface.

C. Replace the contacts if their thickness drops below 1 mm to maintain reliable performance.

2. Arc Extinguishing Device Inspection

A. After interrupting a short circuit current, remove smoke residue and metal particles from the arc chamber.

B. Replace the ceramic arc chute or metal arc plates if they are cracked, severely burned, or damaged, to prevent operational hazards.

3. Operating Mechanism Care

A. Check the lubrication of the transmission components quarterly and replenish lubricants as required, except for small capacity molded case circuit breakers.

B. Perform maintenance on the operating mechanism only when the 4000 amp acb air break circuit breaker is tripped, to avoid accidental operation.

Key Points for Routine Maintenance:

A. When cleaning dust, avoid moisture on contacts to maintain insulation integrity.

B. Inspect conductor connections to ensure they are tight and that contact pressure is uniform.

C. Periodically test the trip unit settings to verify that they match the load requirements.
