1250 Amp Acb in Electrical Circuit

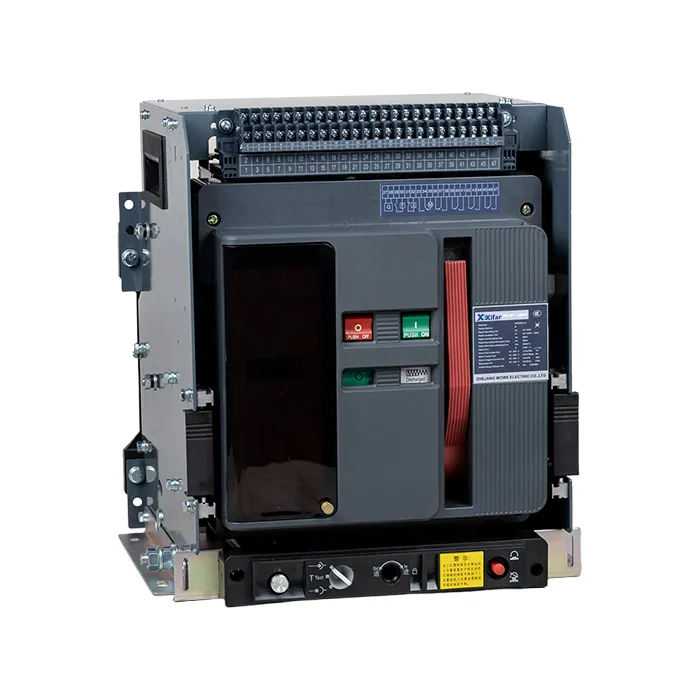

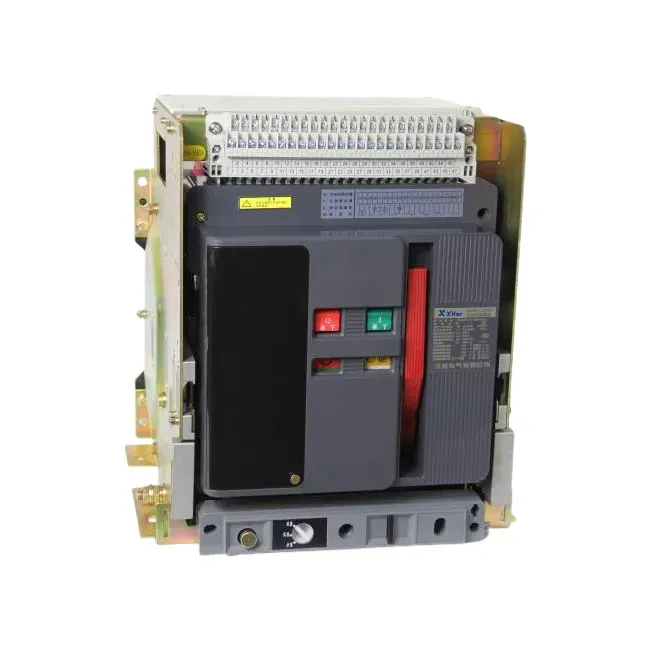

A 1250 amp acb air circuit breakerin electrical circuit, also known as a universal or frame type circuit breaker, is a mechanical switching device designed to make, carry, and break currents under normal operating conditions. It is also capable of making and carrying for a specified time, and interrupting currents under abnormal circuit conditions such as short circuit and under voltage. 1250 amp acb air circuit breakers in electrical circuit are used for power distribution and for protecting circuits and equipment against overload, undervoltage, and short circuit faults.

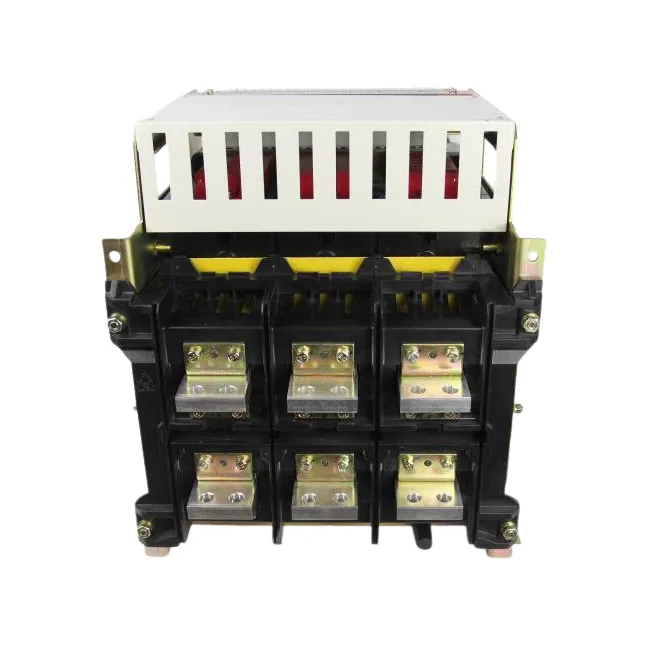

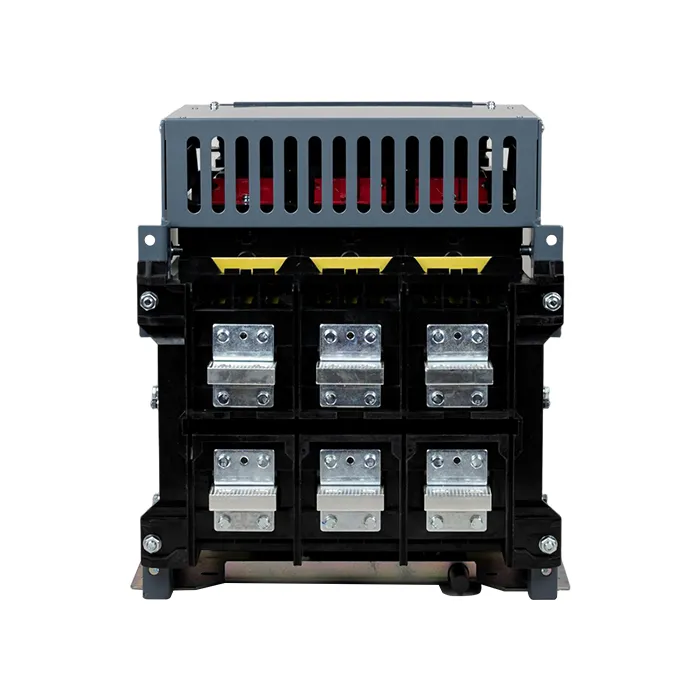

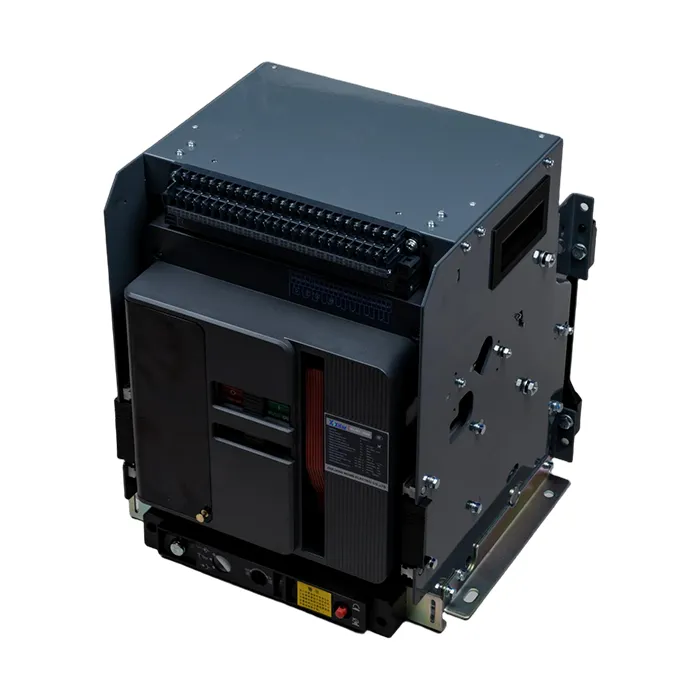

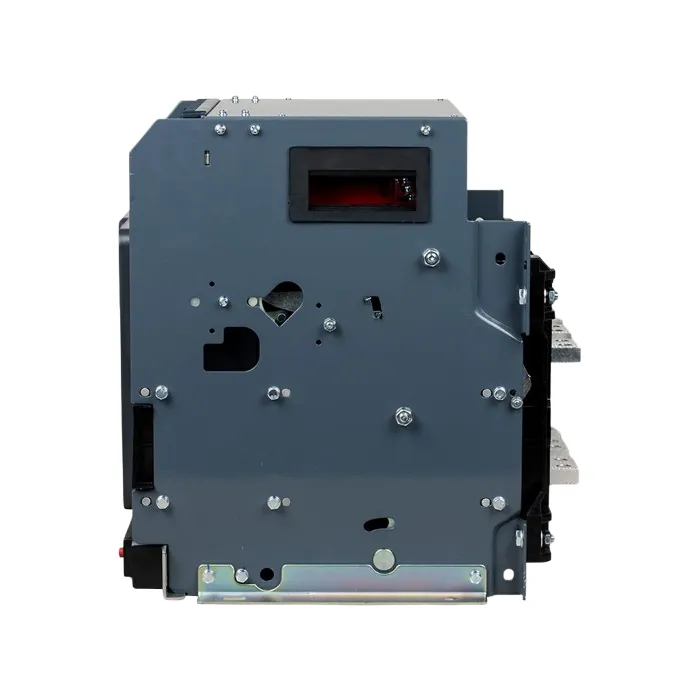

Typically, the 1250 amp acb air circuit breaker is built on a steel frame, with all internal components mounted within the frame. Benefits to its larger capacity, a 1250 amp acb air circuit breaker in electrical circuit can accommodate a variety of trip units and auxiliary contacts, offering high breaking capacity and strong thermal stability. For this reason, it is commonly applied in installations that require high breaking performance and selective protection.

The intelligent air circuit breaker is suitable for AC 50 Hz networks with rated voltages of 380 V or 690 V and rated currents from 200 A up to 6300 A. With advanced intelligent protection functions, it provides selective and precise tripping, avoiding unnecessary outages and improving supply reliability. Under normal operating conditions, it may also be used for infrequent switching of lines. An air circuit breaker which the rated current is lower than 1250A can be used in 380 V, 50 Hz systems to protect motors against overload and short circuits. And under normal conditions, it may also serve for infrequent motor starting.

Production Parameter:

Product FAQ:

Q: What does a 1250A ACB mean in an electrical system?

A: A 1250A ACB refers to an air circuit breaker with a rated current capacity of 1250 amperes. It is designed to protect electrical circuits, distribution panels, and equipment by interrupting fault currents such as overloads and short circuits, while also handling normal switching operations.

Q: Can a 1250A ACB be used for motor protection?

A: Yes. In 380V, 50Hz networks, a 1250A ACB can provide protection against overloads and short circuits for large motors. However, it is generally used for overall distribution protection rather than for direct motor control, unless coordinated with appropriate trip units.

Q: Does a 1250A ACB support remote monitoring and control?

A: Intelligent versions of 1250A ACBs are equipped with electronic trip units and communication modules (such as Modbus, Profibus, or IEC 61850). This allows remote monitoring, event recording, and even remote open/close operations through SCADA or energy management systems.
