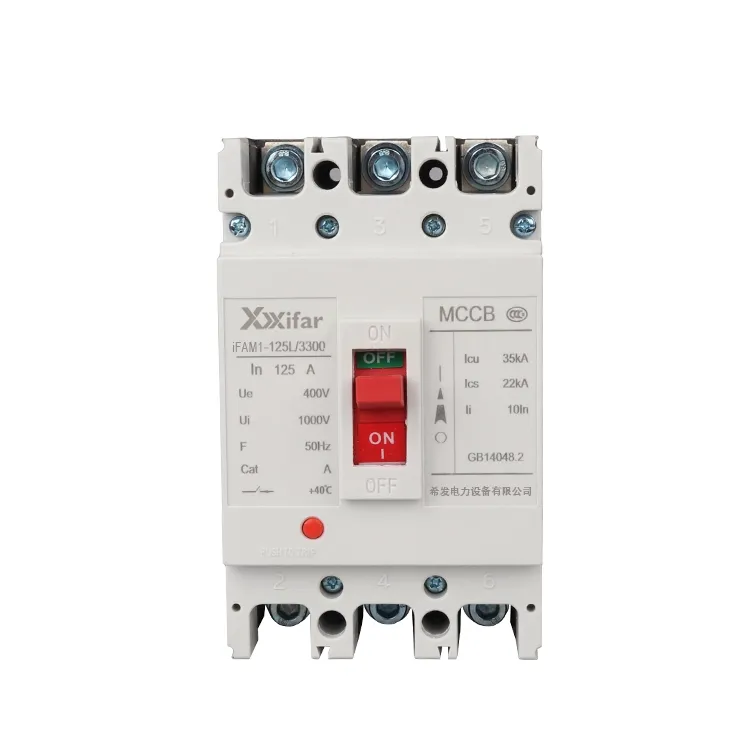

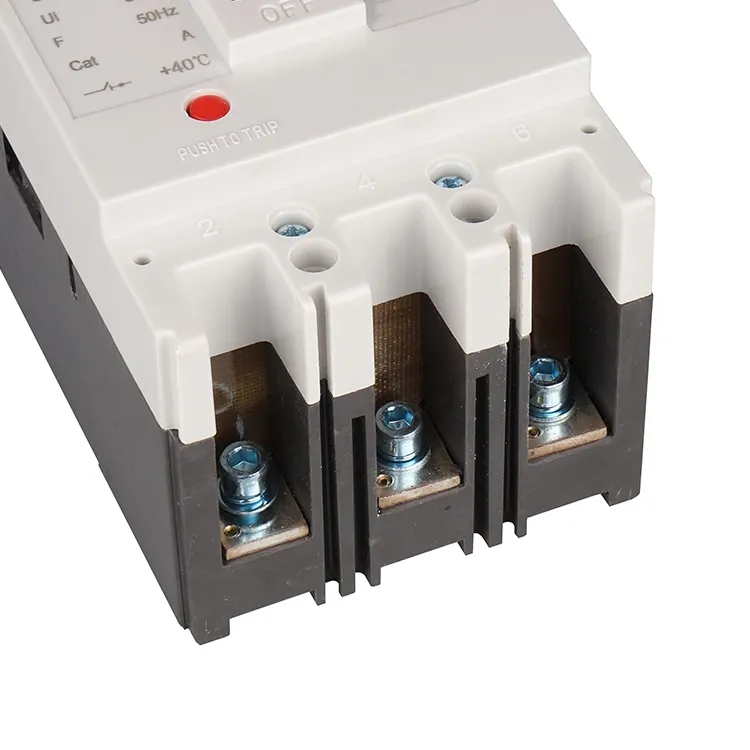

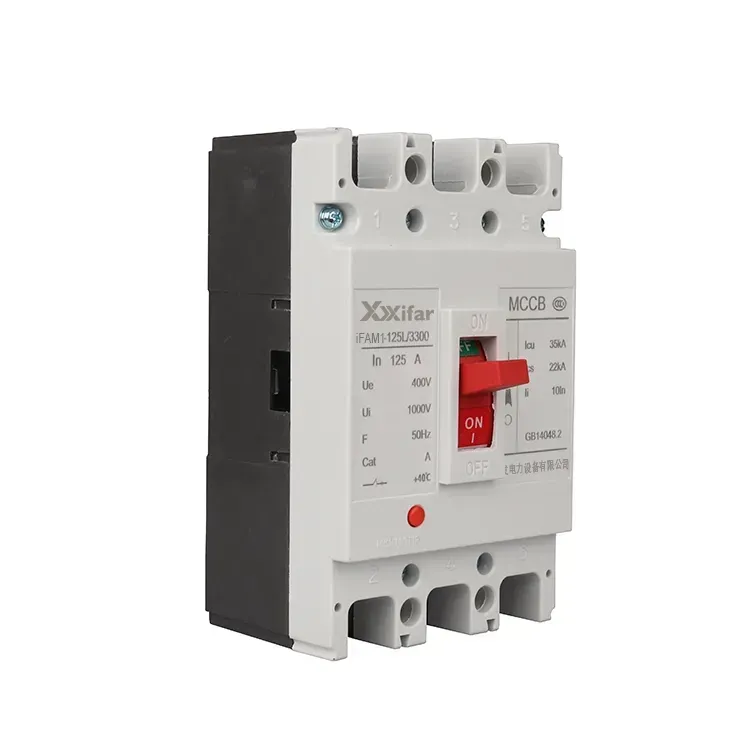

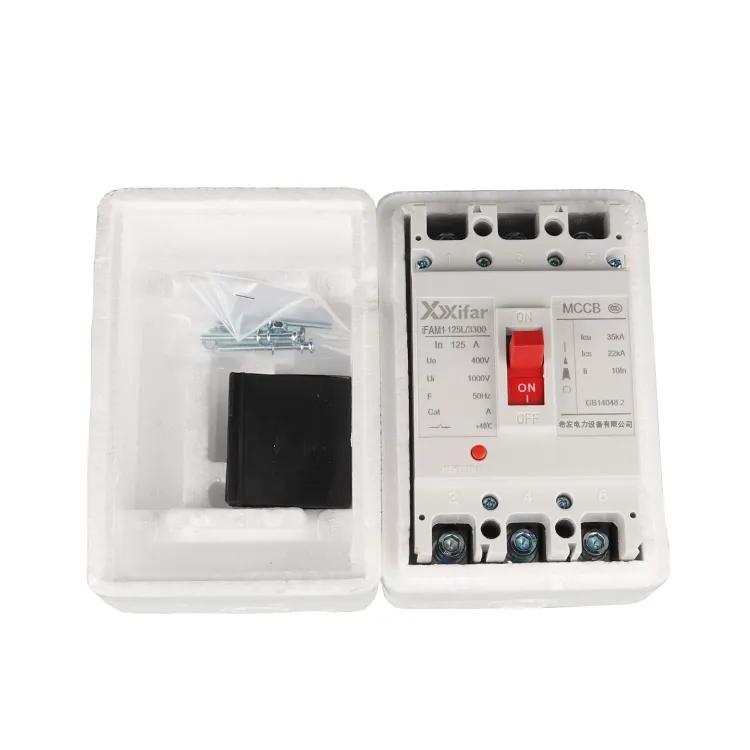

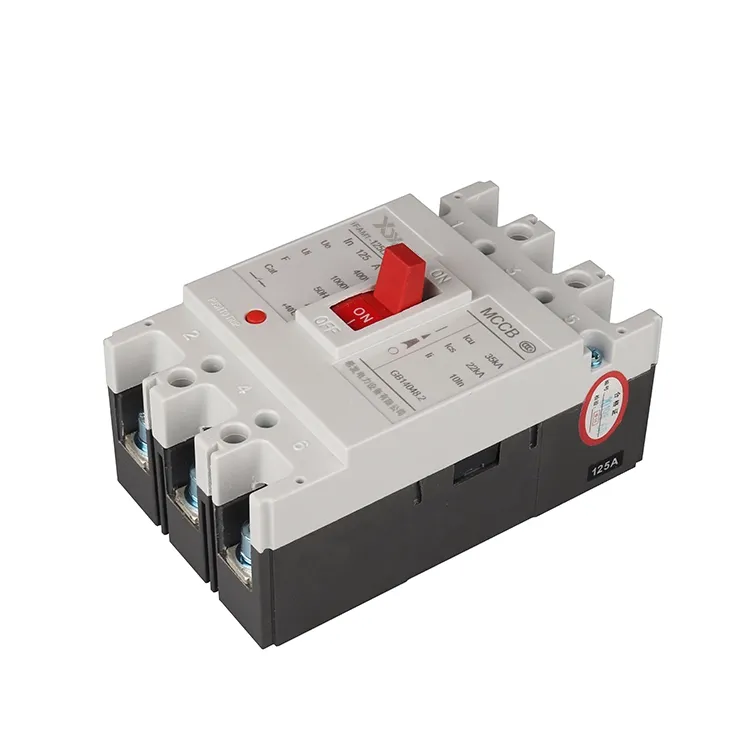

3p 100a Mccb Moulded Case Circuit Breaker 400v

A 3p 100a mccb moulded case circuit breaker 400v is a type of protective device that adopts in 400V distribution system commonly. It is known as that the enclosure of a 3p 100a mccb moulded case circuit breaker is typically made of high strength plastic or similar insulating materials. 3p 100a 400V mccb moulded case circuit breakers are primarily used for power distribution and for protecting circuits and electrical equipment against faults such as overloads and short circuits. MCCBs also allow infrequent switching of circuits under normal conditions. Designed with a balance between protection performance and operational convenience, 3p 100a 400V mccb moulded case circuit breakers are a key component in industrial, commercial, and residential distribution networks.

The main performance characteristics of A 3p 100a mccb moulded case circuit breaker 400v can be summarized as follows:

1. Compact structure and modular design

All major components of a 3p 100a mccb moulded case circuit breaker 400v, including the operating mechanism, contact system, arc extinguishing unit, and trip device, are integrated within a single insulated enclosure. The compact structure designing provides a relatively high level of protection, effectively preventing the ingress of dust and foreign objects while ensuring safe operation. Many functional unit designs, such as under voltage trip coil, motorized driver, and plug in pluggable components, adopt a modular approach to make a MCCB easier to expand functions and carry out maintenance.

2. Reliable protection functions

The primary role of a 3p 100a mccb moulded case circuit breaker 400v is to provide overload protection with a time delay and instantaneous protection against short circuits. Overload protection is achieved through a thermal trip unit. When the current exceeds a preset value for a certain period, the 3p 100a mccb moulded case circuit breaker trips after a delay to prevent overheating damage. Meanwhile, short circuit protection is handled by a magnetic trip unit, which responds almost instantly, typically within tens of milliseconds. When a high fault current occurs, a 3p 100a mccb moulded case circuit breaker could protects equipment from both thermal and electrodynamic stress. Some advanced models also offer short time delay protection and ground fault protection.

3. High breaking capacity

Breaking capacity refers to the maximum fault current the breaker can safely interrupt. 3p 100a mccb moulded case circuit breakers generally offer a significant higher breaking capacity than miniature circuit breakers to enable them to interrupt the larger fault currents that may occur in 400V distribution systems. This ensures reliable operation even under severe fault conditions and helps prevent the escalation of accidents.

4. Flexible installation and operation

3p 100a mccb moulded case circuit breakers support various installation methods, such as fixed mounting type, plug in type, and withdrawable type to make them adaptable to different switchboard configurations. 3P 100A MCCBs also offer multiple operation modes, including manual and motorized operation. It also can be equipped with accessories such as auxiliary contacts and alarm contacts to enable remote indication and control.

5. Strong adaptability and reliability

3P 100A moulded case circuit breakers are capable of operating reliably in relatively harsh environments. With long service life and high mechanical and electrical endurance, they meet the demanding requirements of different applications for dependable circuit protection.

3p 100a mccb moulded case circuit breaker 400v parameter:
