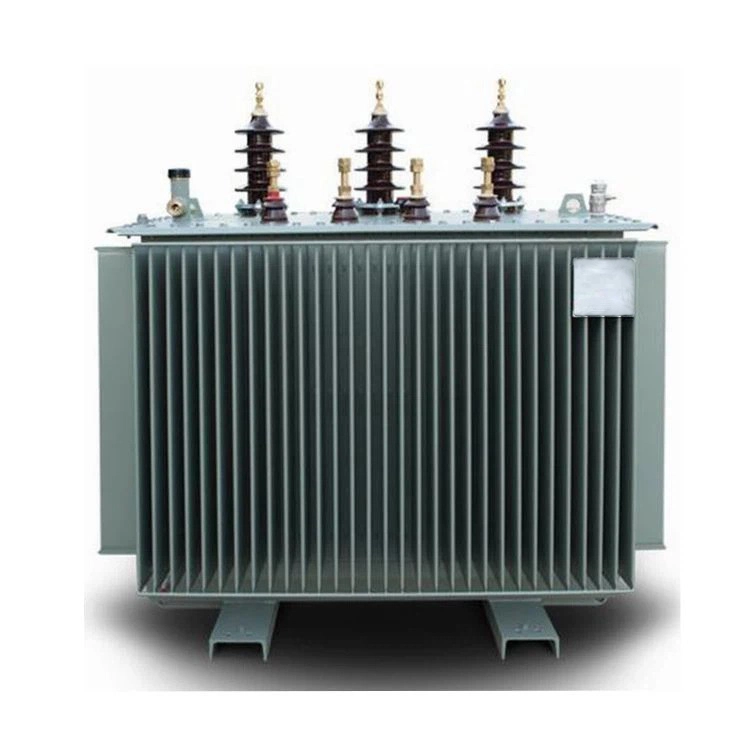

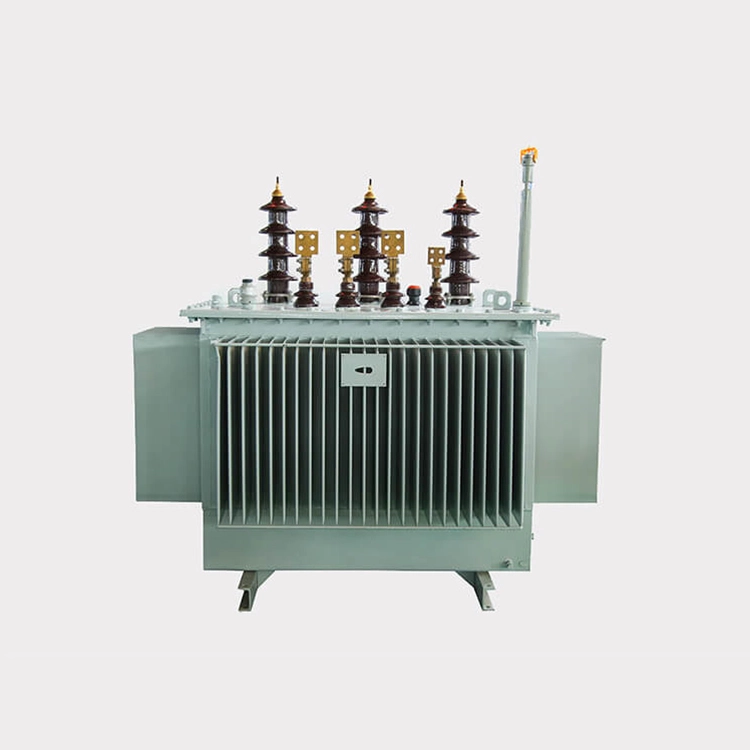

22kv to 415v 200kva power distribution transformer reduces the 22kV medium-voltage power grid to a standard output of 415V low voltage. Its core is made of high-quality cold-rolled silicon steel sheets and uses a multi-stage stepwise laminated sheeting process, effectively reducing loss and no-load current.
The high and low voltage windings are respectively made of copper foil and multi-layer cylindrical structures, combined with vacuum drying and high vacuum oil injection processes, ensuring 22kv to 415v 200kva power distribution transformer has excellent short-circuit resistance and insulation reliability. This transformer complies with IEC standards and features high efficiency, fully sealed maintenance-free and low-noise operation characteristics.
Meanwhile, we provide factory direct supply, customized capacity and voltage grade, project tailored solution and complete set power equipment sourcing services 22kv to 415v 200kva power distribution transformers are widely applicable to grid renovation projects, industrial park power distribution, mining power supply, residential community power upgrading and infrastructure engineering construction. We offer official certification documents, full technical data sheets, third-party inspection reports and professional after-sales technical service.
Sincerely invite global power equipment distributors, project contractors and engineering purchasers to contact us for price consultation, and establish long-term stable partnership!
| Phase Number: | Three-phase |
| Rated Capacity: | 200kVA |
| Rated Frequency: | 50Hz |
| HV Rated Voltage: | 22kV |
| LV Rated Voltage: | 415V |
| Vector Group: | Dyn11 |
| Cooling Method: | ONAN(Oil Natural Air Natural) |
| Voltage Regulation: |
Off-circuit Tap Changer ±5%/±2×2.5%,on-site adjustable |
| Short-circut Impedance: | 4.5%~5.5% |
| No-load Loss: | 150W±15%W |
| Load Loss: | 3200W±15%W |
| No-load Current: | ≤1.2% |
| Protection Level: | Outdoor closed type,suitable for open-air use |
We provide full-cycle professional services for 22kv to 415v 200kva power distribution transformer.
Pre-sales:our team offers one-on-one consultation and customized solutions to match your application scenarios.
In-sales,we support global on-time delivery and provide installation guidance.
After-sales:we offer a standard warranty, 24-hour technical response, on-site maintenance if needed, and regular follow-ups.
All products comply with IEC 60076 and GB 1094 standards, with complete certification, and we provide lifelong technical consultation to solve your worries.
A:Yes, all our 200kVA 22kv to 415v distribution transformers hold complete authoritative certifications including CE certification, IEC standard compliance and ISO quality management system certification. The products are manufactured in strict accordance with IEC 60076 and GB 1094 standards, fully conforming to international safety specifications and industrial quality criteria.
A:Our company have been professionally dedicated to foreign trade exports for years.Our products are mainly sold to markets in Southeast Asia, the Middle East, Africa, South America, Europe, etc. With rich overseas project experience, we are fully familiar with the customs clearance rules and market access certification regulations of various regions.
A:We support common payment methods used in international trade, such as T/T and L/C, and the specific methods can be negotiated amicably based on the cooperation model.
