2.5 Mva Dry Type Distribution Transformers

As a professional manufacturer dedicated to R&D, production and customized supply of complete transformer equipment, Wenzhou Xifa Electric Power Equipment Co., Ltd. ’s 2.5 Mva Dry Type Distribution Transformers is a medium-capacity, oil-free unit for indoor distribution, typically voltage ratio of 10kV/0.4kV, 50/60Hz frequency, used to step down high-voltage electricity to lower voltages for daily power supply. The key advantage of 2.5 mva dry type distribution transformer is safety,as it uses no flammable insulting oil, making it suitable for commercial buildings, industrial plants, and data centers where fire safety and low maintenance are critical.

Send Inquiry

Product Description

2.5 Mva Dry Type Distribution Transformers adopts epoxy resin vacuum casting and high-permeability iron core design. By using cold rolled oriented silicon steel sheets with high magnetic conductivity and low loss, as well as the stepped joint technology, greatly suppresses magnetic flux leakage, effectively reduces no-load current, minimizes no-load loss and operational noise, and realizes higher energy efficiency and more stable long-term operation.
The high voltage winding is vacuum casting with glass fiber reinforced epoxy resin to achieve bubble free, low partial discharge and high mechanical strength. The low-voltage winding adopts a foil winding structure and features excellent dynamic and thermal stability.
The whole 2.5 mva dry type distribution transformer is designed with F/H class high temperature resistant insulation system, with outstanding flame retardant, self-extinguishing, moisture-proof, and dirt-resistant capabilities. It can adapt to high humidity, dust accumulation, temperature variation and other harsh indoor and semi-outdoor application environments, with strong environmental adaptability.
Our 2.5 Mva Dry Type Distribution Transformers complies with IEC 60076 and GB 1094 international standards, with standardized parameters, stable quality and complete certification documents. We support personalized parameter customization, flexible delivery cycles, competitive factory direct pricing and comprehensive after-sales warranty services, helping procurement customers control project budgets, shorten delivery lead times and secure reliable one-stop power equipment supply for large scale engineering and bulk order demands.

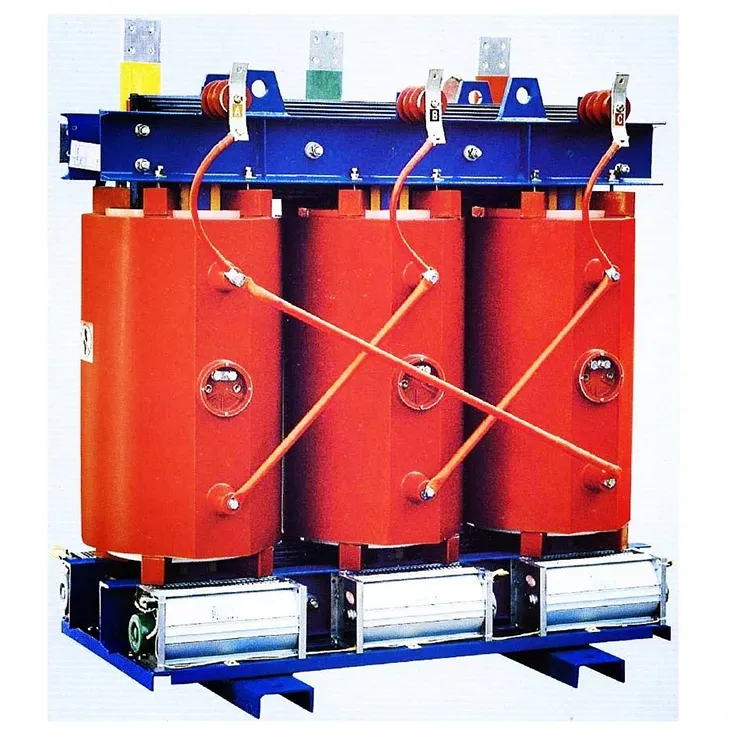

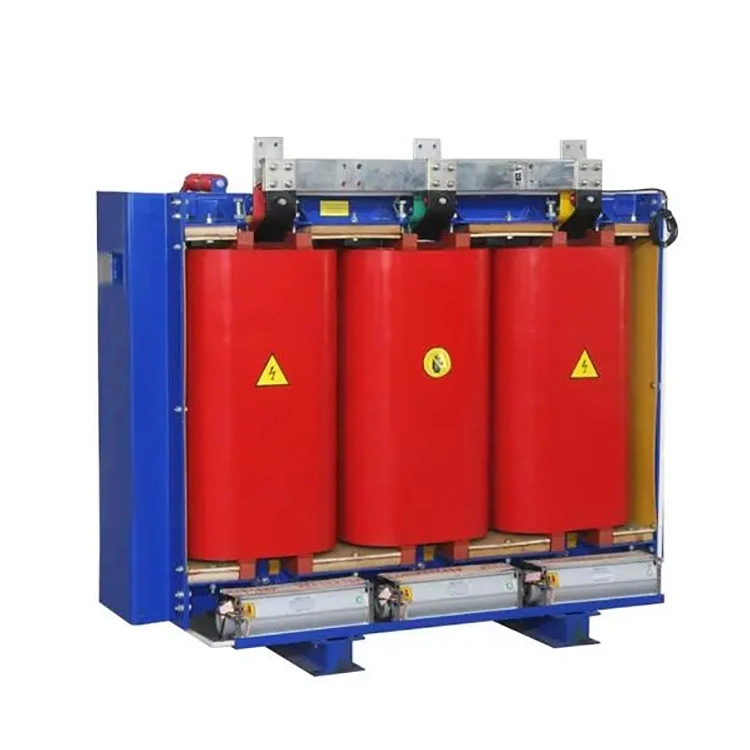

2 5 Mva Dry Type Distribution Transformers

Technical Specification:

Rated capacity：	2.5MVA
Voltage ratio:	10 kV / 0.4 kV
Frequency:	50/60 Hz
No-load loss:	2.8±15% KW
Load loss:	17.2±15% KW
Short-circuit impedance:	6%
Cooling:	AN (natural air) / AF (forced air)
Protection	IP20 / IP21

Advantages:

1.Flexible installation

The 2.5 mva dry type distribution transformer can be directly installed at the load center, reducing the length of the low-voltage cables and lowering the line losses. The volume and weight are relatively compact, and the required bearing capacity is lower than that of oil transformers of the same capacity.

2.Strong environmental adaptability

2.5 Mva Dry Type Distribution Transformers has excellent moisture resistance and can operate normally in an environment with a relative humidity of 100%.It is resistant to pollution and chemical corrosion, making it suitable for highly polluted environments such as coastal areas, chemical plants, and metallurgical plants.

3.maintenance-free and long longevity

There is no need for regular maintenance work such as oil sample testing, which greatly reduces operation and maintenance costs. The design life usually exceeds 20 years, and the performance of epoxy resin is stableand reliableafter curing.
