50 Kva Ring Sealed Oil Immersed Distribution Transformer

Wenzhou Xifa Electric Power Equipment Co., Ltd. is your reliable partner for high-quality distribution transformers. We supply 50 Kva Ring Sealed Oil Immersed Distribution Transformer suitable for 10kV/0.4kV power networks. Ideal for industrial parks, substations, residential areas, and renewable energy projects.As we have the ability to process raw materials ourselves, we enjoy a significant advantage in terms of price.In terms of 50 kva high voltage dyn11 distribution transformer quality, we will conduct inspections throughout the entire process from raw materials to finished products to ensure that the quality meets the standards.

Send Inquiry

Product Description

The 50 Kva Ring Sealed Oil Immersed Distribution Transformer from Wenzhou Xifa Electric Power Equipment Co., Ltd. is engineered for reliable and efficient power distribution.The Dyn11 vector group provides superior performance under unbalanced load conditions and effectively suppresses third harmonics, with delta-connected HV windings and star-connected LV windings for enhanced earth fault protection.

50 kva high voltage dyn11 distribution transformer is available in oil immersed ONAN and cast resin dry type AN/AF versions to meet outdoor pole mounting, indoor building and harsh environment installation demands. It is equipped with high grade low loss cold rolled silicon steel core and high purity copper or aluminum windings, featuring low no load loss and load loss, helping clients save long term electricity costs.

With compact structure, simple installation and minimal daily maintenance,50 kva high voltage dyn11 distribution transformer supports custom voltage ratio, tap range and technical parameter customization to match your project requirements. Flexible MOQ, bulk order discount and fast production lead time are available for global purchasers. We provide quotation sheet, installation manual and factory inspection report to facilitate your procurement procedure. Professional OEM & ODM service is acceptable, and we offer stable supply, on time delivery and thoughtful after-sales support to reduce your purchasing risk and project cost, making it an ideal choice for global project procurement.

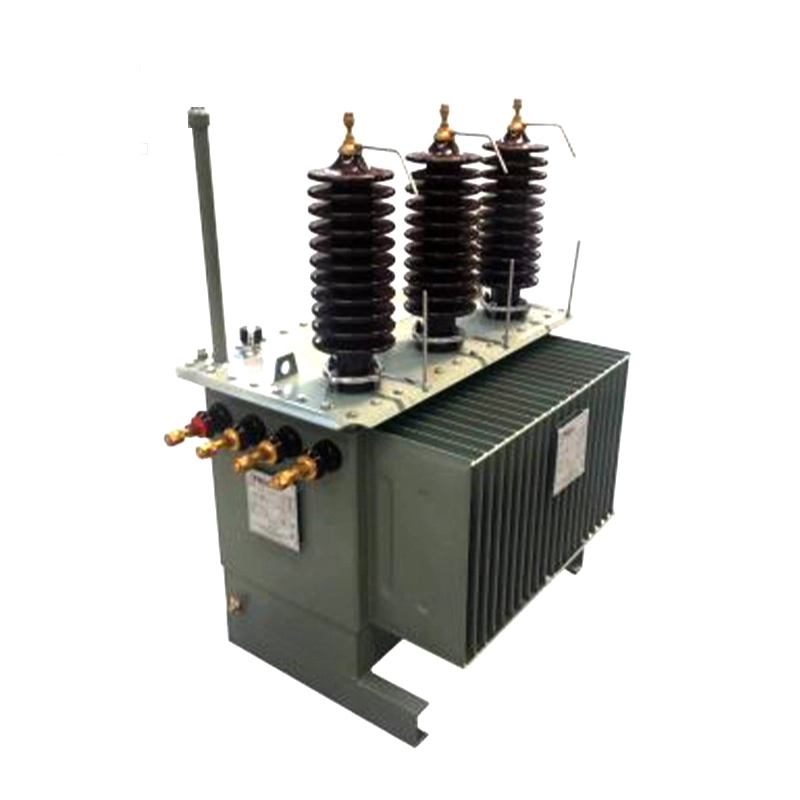

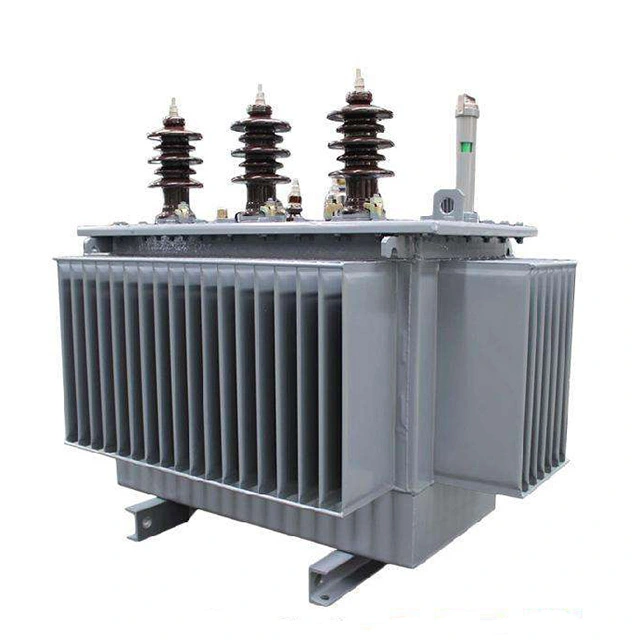

50 Kva Ring Sealed Oil Immersed Distribution Transformer

Technical specification:

Rated Capacity	50 kVA
Primary Voltage(HV)	10 kV/11kV(custom:6-35 kV)
secondary Voltage(LV)	400V/230V(optional:380V/220 V,480 V/277 V)
Vector Group	Dyn11
Frequency	50/60 Hz
Impedance Voltage	4%-6%
No-load Loss	270±15%W
Load Loss	1000±15%W
Tap Range	±2×2.5%(HV side)
Cooling Method	Oil-immersed:ONAN; Dry-type:AN/AF
Insulation Class	Oil-type:A/B;Dry-type:F/H (155℃/180℃)
Winding Material	Copper or Aluminum
Core	Cold-rolled silicon steel

Feature:

For customers, the 50 kVA High Voltage Dyn11 Distribution Transformer from Wenzhou Xifa Electric Power Equipment Co., Ltd. offers remarkable value through its core features. Its Dyn11 vector group guarantees steady power supply even with unbalanced loads, preventing equipment malfunctions caused by voltage fluctuations and reducing repair expenses.50 kVA High Voltage Dyn11 Distribution Transformer effectively suppresses third harmonics, safeguarding your electrical devices and extending their service life. With two optional designs, the oil-immersed type is robust for outdoor use, saving you replacement costs, while the dry-type ensures indoor safety without leakage risks. High-quality cores and windings lower energy consumption, helping you cut down electricity bills. Customizable voltages adapt to your actual needs, avoiding resource waste. Compliant with international standards,the50 kVA High Voltage Dyn11 Distribution Transformer is easy to install, low-maintenance and compact, saving your time and labor in daily operation.

FAQ:

Q:Does 50 kVA High Voltage Dyn11 Distribution Transformer offer technical support and after-sales service?

A:We offer one-stop professional pre-sale consultation and comprehensive after-sales technical support for all our products. Our dedicated service team provides full-process professional guidance, covering detailed product parameter consultation, model selection recommendation, solution customization, and project technical communication in the pre-sale stage.

After customers place an order, we deliver complete supporting services including on-site and remote installation guidance, standardized operation training, detailed user manual explanation, daily maintenance tips and regular product inspection guidance. In case of equipment failure or abnormal operation, our professional technical engineers provide timely fault diagnosis, problem troubleshooting, remote technical debugging and on-site repair support to quickly resolve operational issues, and ensure stable and efficient long-term operation of your equipment at all times.
