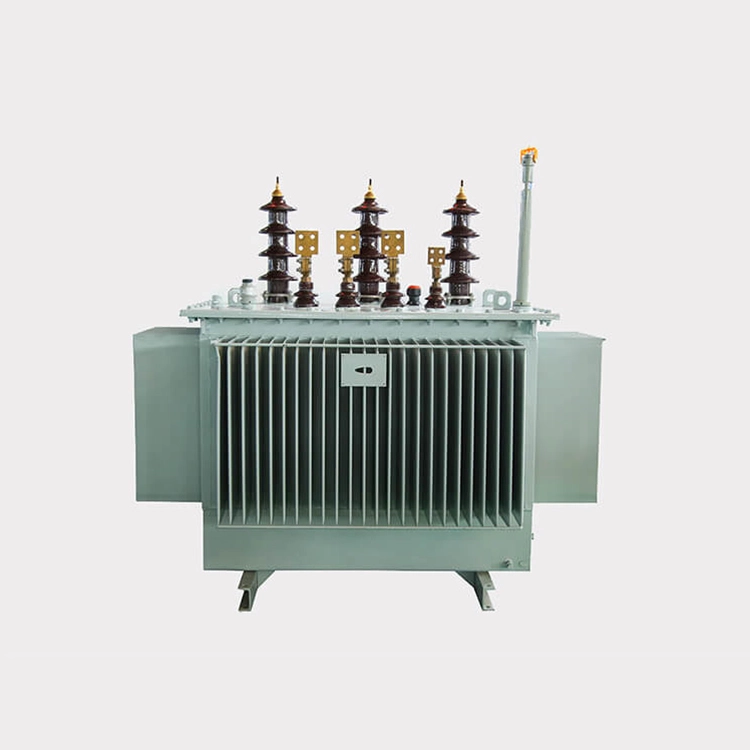

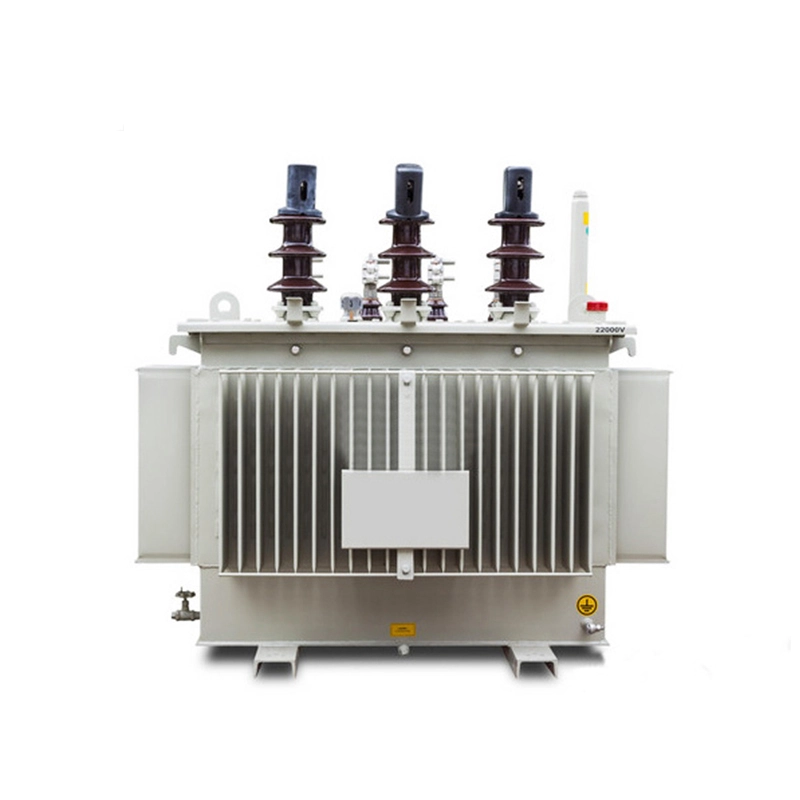

22kv Pole Mounted Power Transformer 50kva

The 22kv pole mounted power transformer 50kva specially designed for outdoor overhead line environments. The transformer features a fully sealed structure oil tank and vertical heat dissipation fins, which offers excellent weather resistance and moisture proof capabilities, capable of operating stably for a long time in an environment ranging from -25°C to +40°C. The product complies with IEC 60076 and corresponding national standards, and possesses reliable, economical, and easy to maintain characteristics.

The typical short circuit impedance of this 22kv pole mounted power transformer 50kva is 4%, which can effectively limit the short circuit current on the low voltage side and protect downstream distribution equipment. The no load loss does not exceed 170W, the load loss (at 75℃) does not exceed 950W, and the overall loss level meets the requirements of secondary energy efficiency. The high voltage side is equipped with an off circuit tap changer, with a tap range of ±2×2.5%, allowing for flexible adjustment of the output voltage during power outages and adapting to fluctuations in grid voltage.

In terms of structure, porcelain bushings are respectively installed on the high voltage and low voltage sides of the  22kv pole mounted power transformer 50kva, and lightning arrester installation brackets are reserved. The surface of the oil tank is treated with shot blasting, anti rust and weather resistant paint, and the anti corrosion grade meets the requirements of outdoor environment. The cooling method is ONAN, and no auxiliary fans or pump sets are required. All external metal components are equipped with obvious grounding terminals, which facilitate present protection grounding connection and ensure operational safety.

Advantages:

1.In order to achieve efficient production control, we have conducted strict screening and auditing of raw material suppliers, and carried out processes such as incoming material inspection and comparison. Additionally, each batch of 22kv pole mounted power transformer 50kva is inspected and quality controlled strictly in accordance with the indicators provided by the suppliers.

2.Wenzhou Xifa Electric Power Equipment Co., Ltd. have a highly skilled R&D service team that can independently develop and design products, which enables us to continuously optimize and provide customers with more cost effective new products. To ensure reliable product quality, the R&D team will conduct comprehensive requirements and design reviews throughout the product development process. Before delivering the products to customers, we will also conduct various tests and debugging to ensure product quality.

3.We always adhere to the principle of prioritizing service and have carefully assembled a customer service team composed of technical experts. To ensure timely 22kv pole mounted power transformer 50kva delivery, minimize losses, and strive to provide faster and more personalized after sales service, we implement round the clock tracking services. We communicate with customers, provide feedback, and actively assist users in resolving any difficulties they encounter.

Main Parts of Pole Mounted Transformers

Front Mounting type LV DB

Pole Line Hardware

Pole Mounted Transformer

Side Mounting type LV DB

Producing Equipments

Foil Winding Machine

Oil Filling Unit

Transformer Oven and Casting Unit

Transformer Oven

Testing Center

Transformers In Processing

Transformer in drying

Transformer in Winding 2

Transformer in Winding

Transfromer is in assemble
