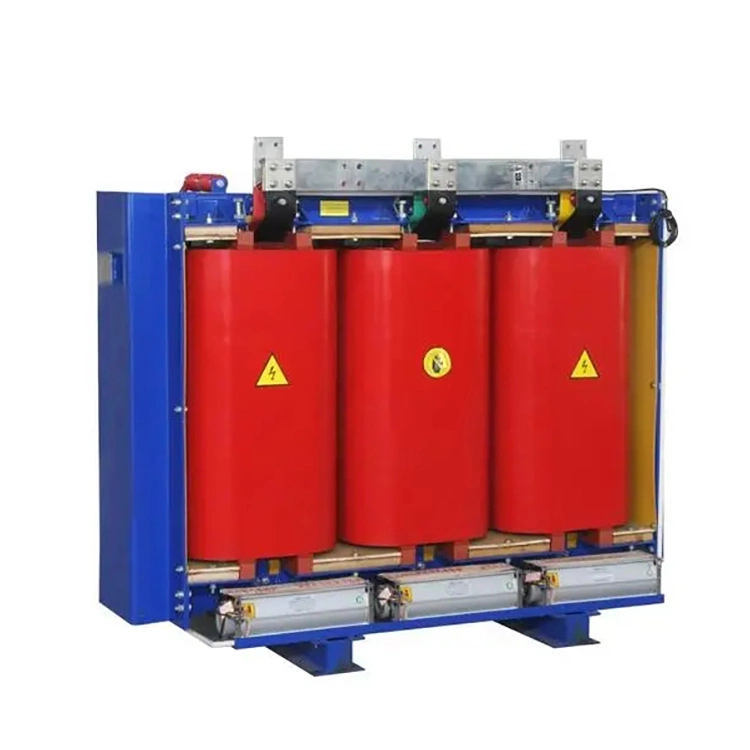

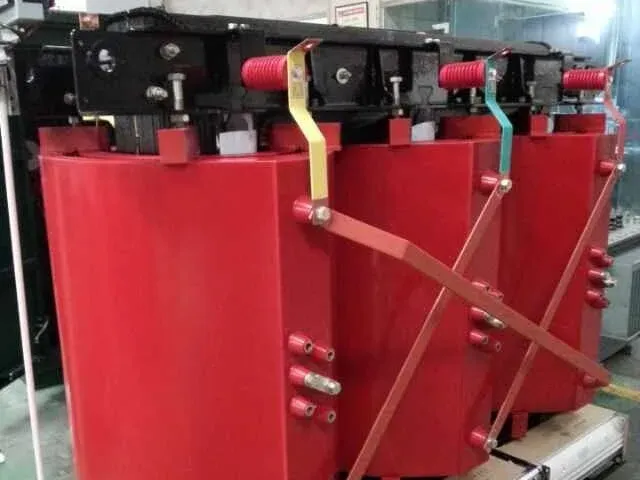

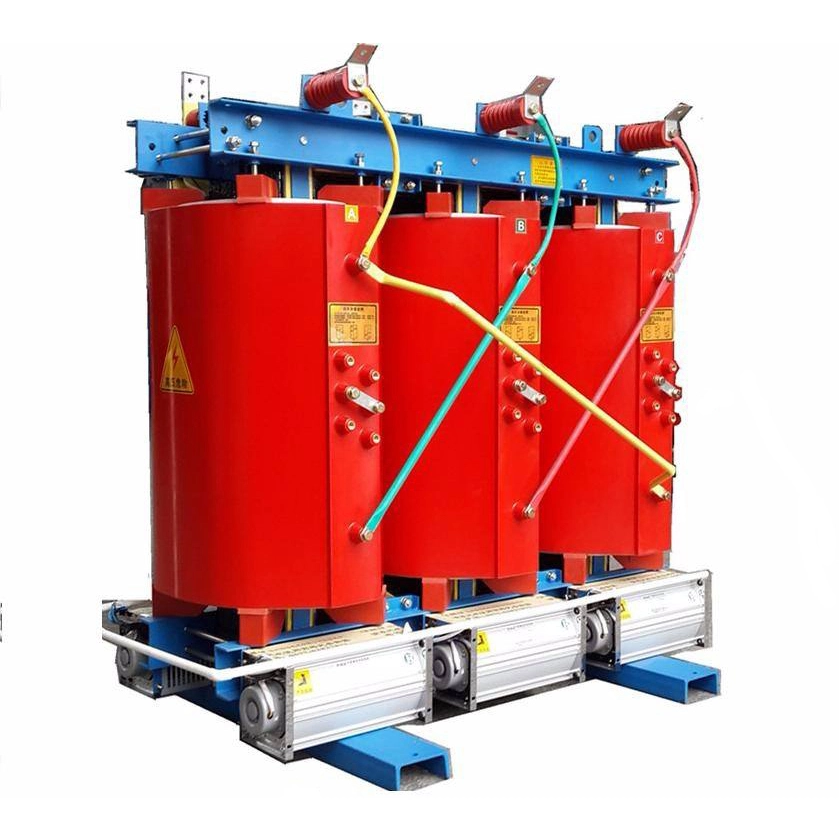

2000kva Three Phase Cast Resin Dry Transformer

2000kva three phase cast resin dry transformer is a type of transformer that uses air or gas for insulation and cooling. The design of this transformer does not require the iron core and windings to be immersed in insulating oil. By using epoxy resin to encapsulate the windings, the windings can be protected from moisture, dust, corrosion and other environmental factors.

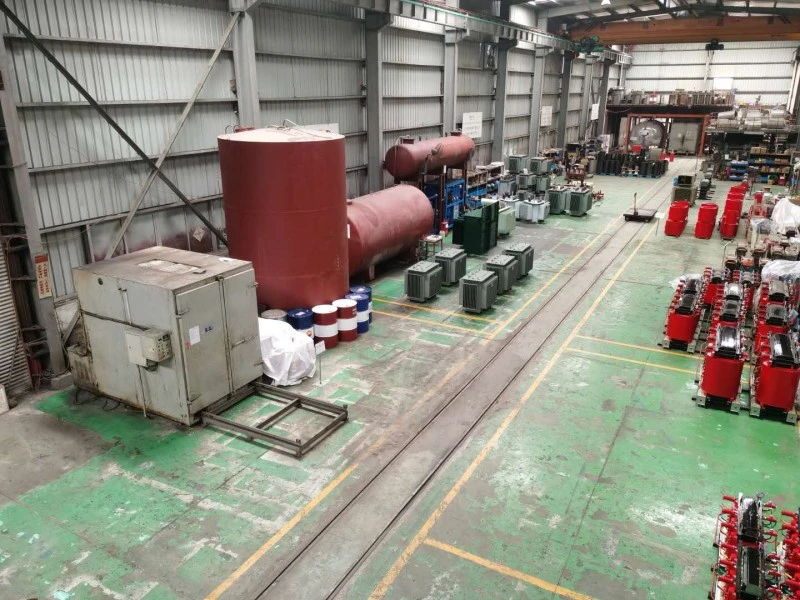

Transformer Workshop

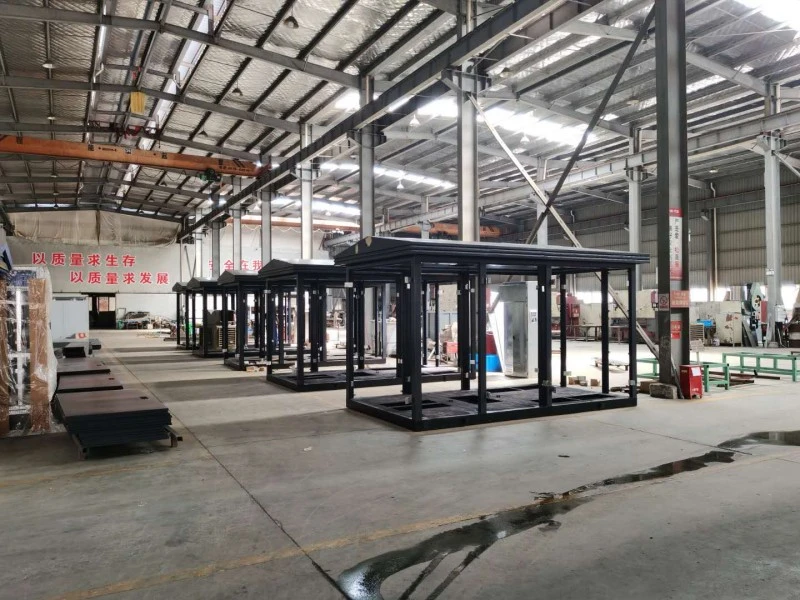

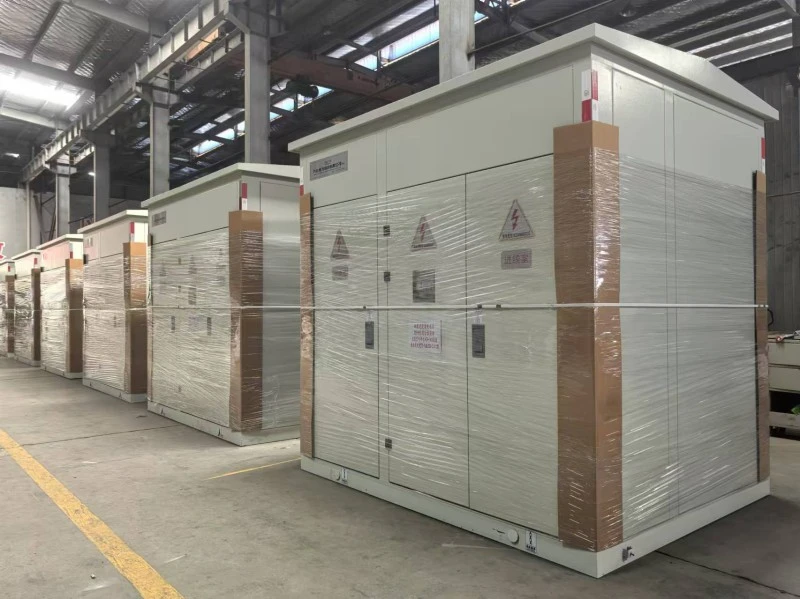

Substation Workshop

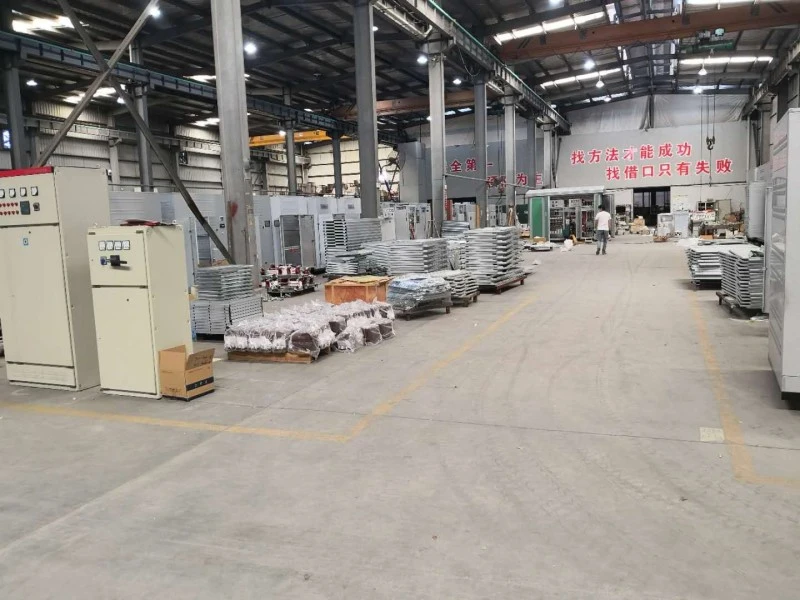

Panel Workshop

Due to its nonflammable and maintenance free properties, 2000kva three phase cast resin dry transformer is suitable for use in high humidity areas, indoor installations and fire risk zones. Using advanced high temperature resistant coils, it can withstand temperatures up to 150°C. Moreover, by providing high quality insulating materials, it possesses excellent electrical insulation properties and is not prone to aging. These characteristics, combined with its excellent structure, significantly extend the 2000kva three phase cast resin dry transformer's service life and ensure its reliable operation under harsh conditions.

Technical parameter:

Producing Machine:

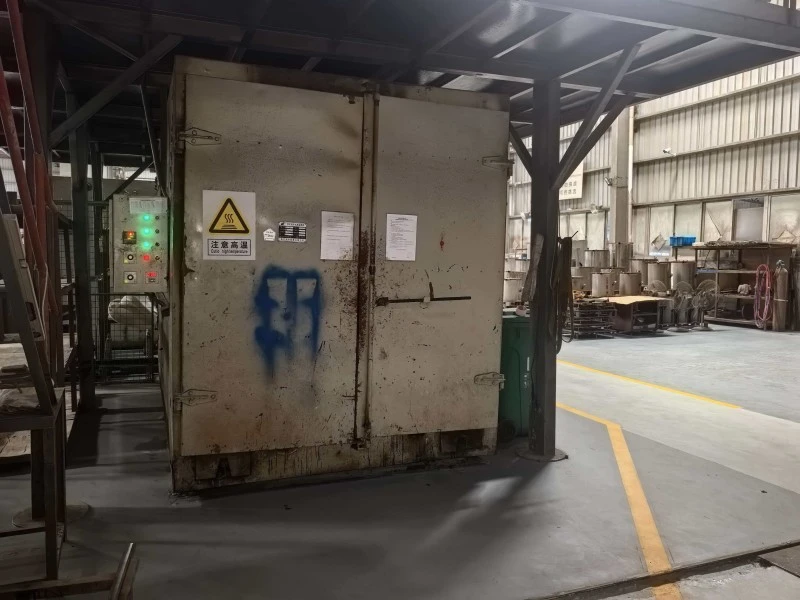

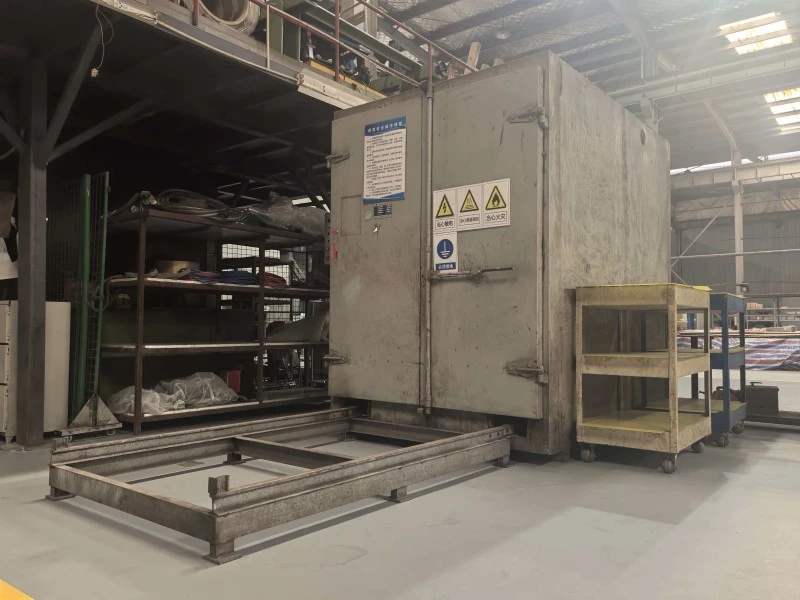

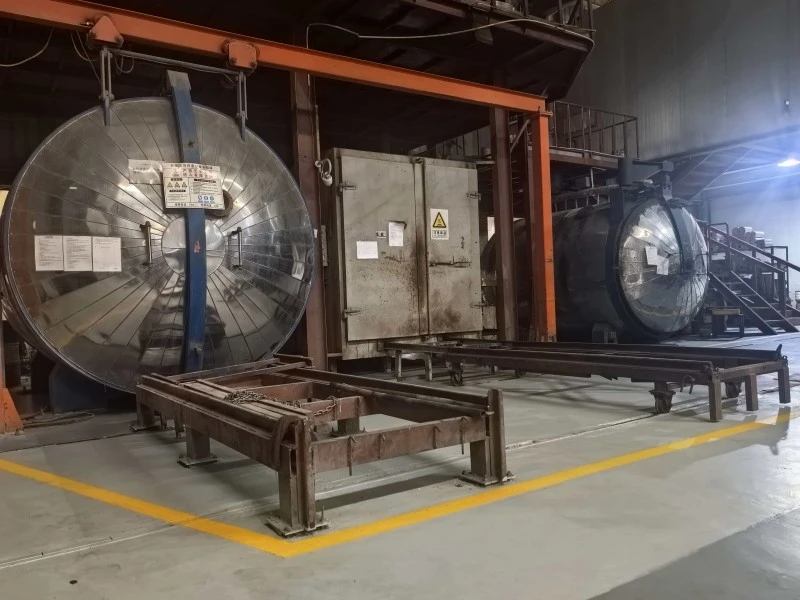

Wenzhou XiFa electric Power Equipment Co., Ltd. has three set transformer oven and Casting Machine. It allows Wenzhou XiFa could produce more than 70 EA of 2000kva three phase cast resin dry transformer with in 60 days. The producing workers has more than 20 years’ experience in manufacturing cast resin transformer and oil immersed transformers. Meanwhile, the technical team would check the technical specification on BOQ one by one before producing.

Testing Center:

To Bring a Smooth user experience and acceptance process, Wenzhou XiFa electric Power Equipment Co., Ltd. would fully follow the requirements of IEC60076-11 to test the electrical and insulation performance of each 2000kva three phase cast resin dry transformer to ensure each finished cast resin dry type transformer match to the technical specification on the bill of quality. Our technical team will reply the comments and suggestions from clients within 24 hours.

Testing Center

Test Waiting Area

Transformer in Testing

FAQ:

Q: What environments are the IP00, IP20 and IP23 protection grades of the 2000kva three phase cast resin dry transformer suitable for?

A: For the 2000kva three phase cast resin dry transformer, the core differences among the three protection grades (IP00, IP20, and IP23) lie in the protective capability of the enclosure. This determines the suitable installation environment for each of them.

Transformer in IP00

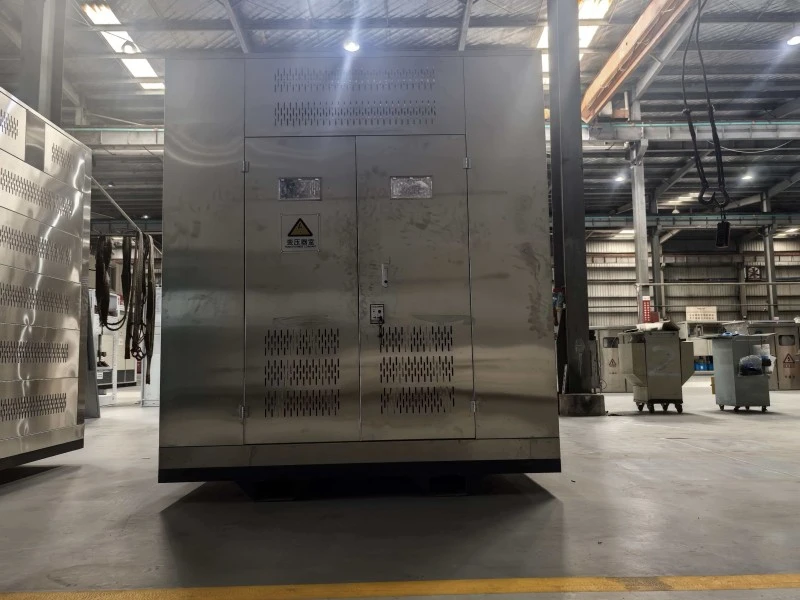

Transformer in IP20

Transformer in IP54

IP00 is suitable for dry transformer rooms that are independent, dedicated, and accessible only by professionals. It has the lowest cost but offers no protection.

IP20 is suitable for ordinary indoor environments, such as factory workshops, building distribution rooms, which prevents accidental contact with fingers or small tools. It is a commonly used solution that strikes a good balance between safety, heat dissipation, and cost.

IP23 is suitable for semi outdoor areas with roof coverings or basements where there may be dripping or condensation water. It can prevent dripping from certain angles, but since the enclosure weakens heat dissipation, a 5% to 10% reduction in capacity is usually necessary.

It should be noted that IP23 cannot be used in fully outdoor open environments. For true outdoor applications, a protection level of IP54 or higher or a box type transformer should be chosen.
