11kv 433v 2500kva Scb10 Dry Type Transformer

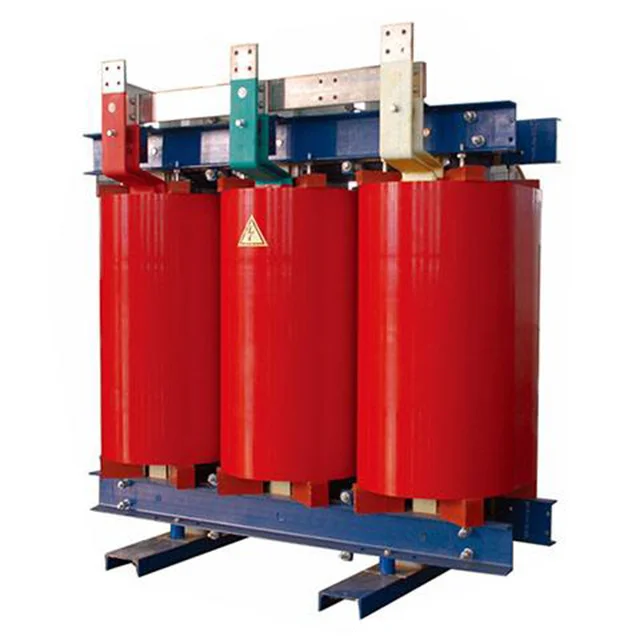

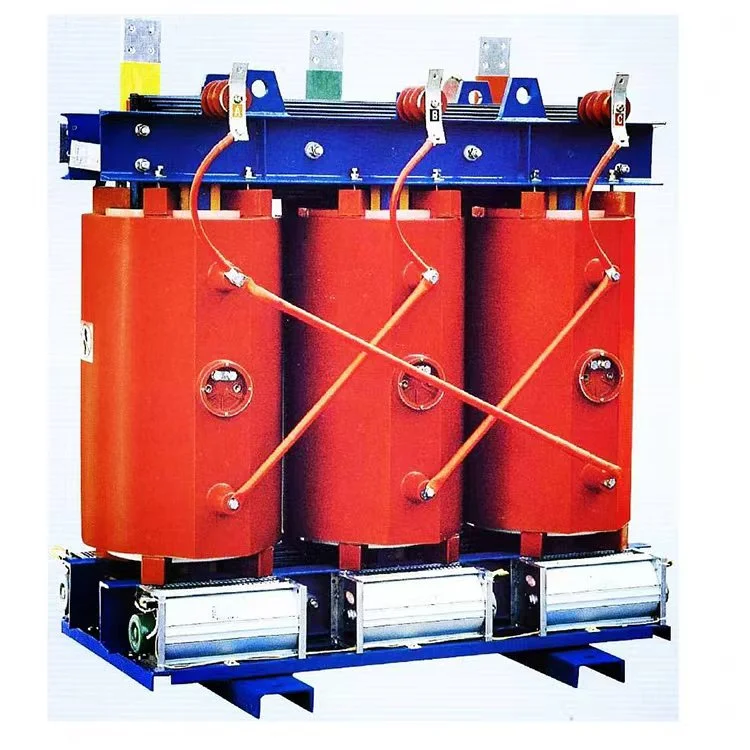

The 11kv 433v 2500kva scb10 dry type transformer produced by Wenzhou Xifa Electrical Equipment Co., Ltd., uses filler reinforced Class F or H epoxy resin compound. Through vacuum thin film degassing, the high and low voltage coils are thin layer cast under vacuum and pressure, with the inner and outer surfaces reinforced by fiberglass forming mesh. This 11kv 433v 2500kva scb10 dry type transformer features high mechanical strength, high electrical strength, and high thermal endurance. It is an excellent product for urban power grid renovation and is particularly suitable for important locations requiring fire protection, explosion prevention, and moisture resistance, such as high rise buildings, airports, power stations, and commercial centers.

Send Inquiry

Product Description

11kv 433v 2500kva scb10 dry type transformer faults can be divided into internal faults and external faults.Internal faults refer to faults occurring inside the tank enclosure, including phase to phase short circuits of windings, inter turn short circuits within a single phase winding, short circuits between the winding and the core, and winding disconnections open circuits.

External faults refer to various phase to phase short circuit faults between the 11kv 433v 2500kva scb10 dry type transformer's external bushings/leads, and single phase ground faults caused by flashover of the bushing insulation through the tank enclosure.

Transformer faults can be very harmful. Especially during an internal fault, the high temperature electric arc generated by the short circuit current will not only burn the winding insulation and the core but also cause the transformer oil to thermally decompose, producing large amounts of gas, which can lead to deformation or even explosion of the transformer tank. Therefore, a transformer must be disconnected tripped when a fault occurs.

Abnormal conditions of transformers mainly include overload, low oil level, overcurrent caused by external short circuits, excessively high oil temperature during operation, excessively high winding temperature, excessive transformer pressure, and cooling system failures. When the transformer is in an abnormal operating state, an alarm signal should be issued.

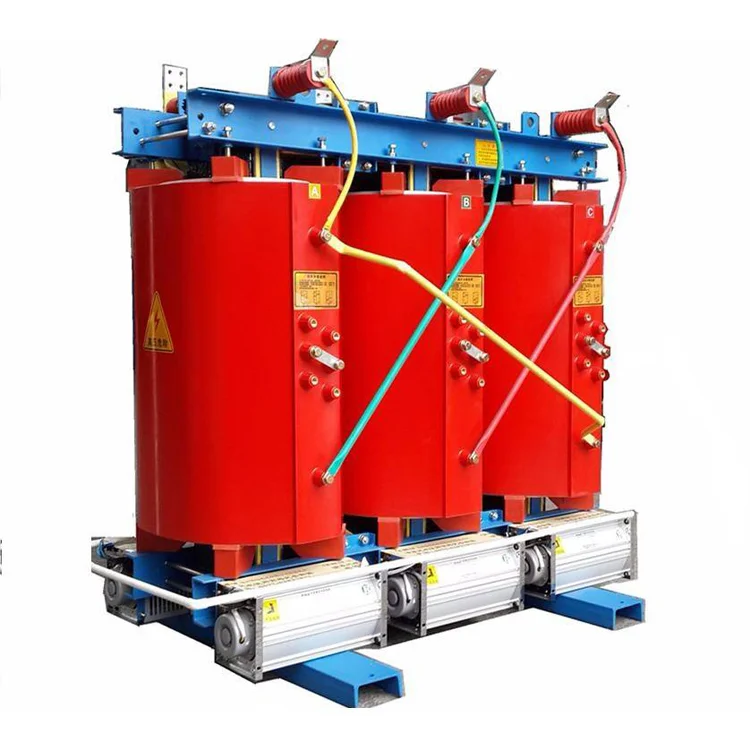

11kv 433v 2500kva Scb10 Dry Type Transformer

Product Parameters:

Name	11kv 433v 2500kva scb10 dry type transformer
Rated Capacity	2500kva
Primary voltage	11KV
Secondary voltage	0.4 0.415 kV
Insulation material	Cast resin
Vector Group	Dyn11 Yyn0
No load Loss (P0)	3600W±15%
Load Loss (Pk) @ 120°C	18800W±15%
Impedance Voltage (Uk)	8%
Insulation Class	CLASS F or H
Cooling method	ONAF ONAF
Partial discharge	Less than 10pc
