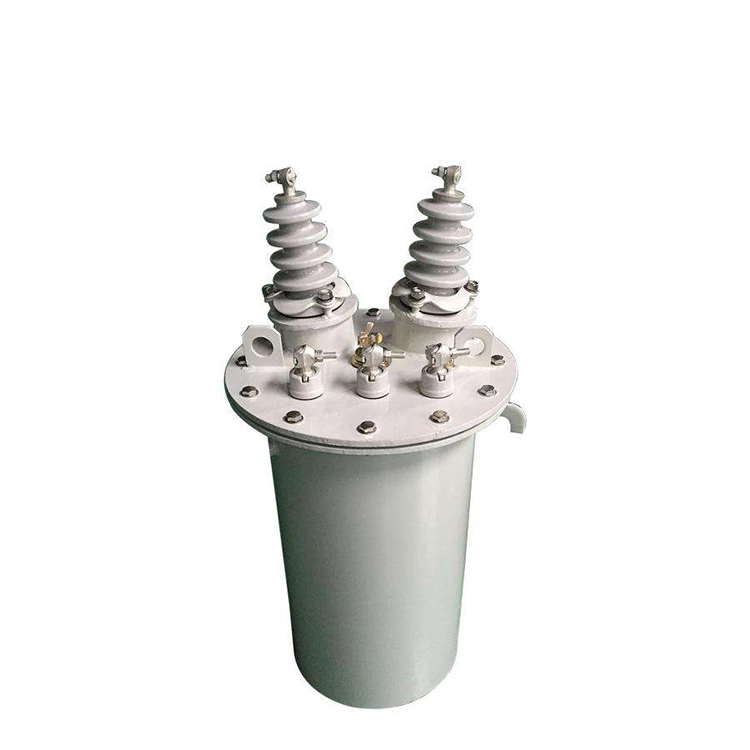

11kv 220v 20kva Stepdown Power Distribution Transformer

At Wenzhou Xifa Electric Power Equipment Co., Ltd. , we are committed to manufacturing power transmission and distribution equipment in China for 20 years .To meet the popular demand for 11kV medium-voltage distribution systems in overseas markets, we specially present the 11kv 220v 20kva stepdown power distribution transformer.We have independent R&D and mass production capabilities for oil-immersed and dry-type distribution transformers up to 110kV. All products are strictly designed and tested in accordance with IEC 60076, and other international standards, and certified by CE.

Send Inquiry

Product Description

Designed for small load end user power supply, 11kv 220v 20kva stepdown power distribution transformer features high reliability, low loss, maintenance-free operation. Flexible pole mounted or outdoor installation, making it an ideal distribution solution for overseas residential areas, commercial shops and small industrial users.

Our factory is equipped with advanced production lines for core cutting, coil winding, vacuum drying and full performance testing.These advanced facilities not only enable us to provide products at competitive prices but also ensure stable and consistent quality, laying a solid foundation for the transformer’s reliable operation in various environments. 11kv 220v 20kva stepdown power distribution transformer is well recognized for high efficiency and reliable operation. They have been exported to countries in Africa, Southeast Asia, the Middle East, etc., and has gained unanimous praise from customers for its stable performance and long service life.

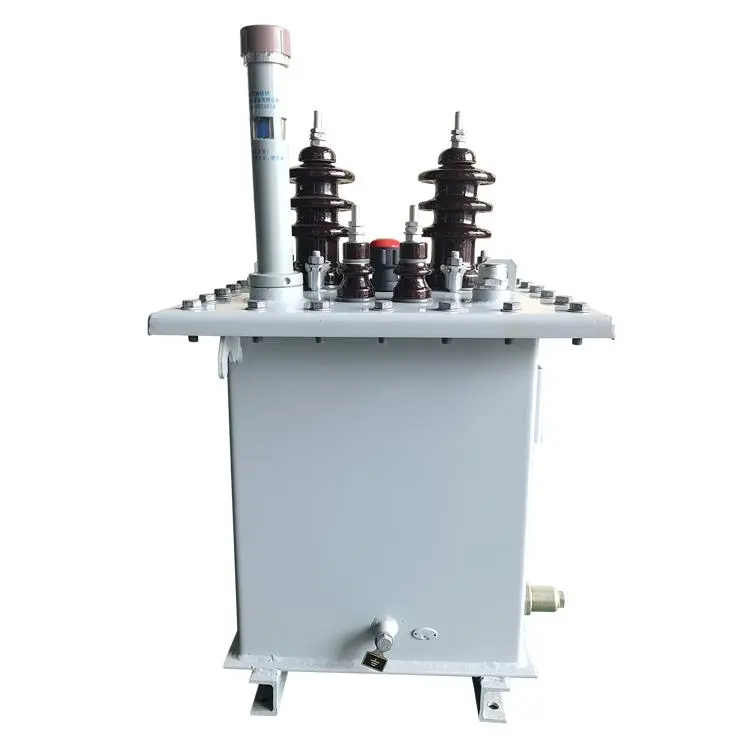

11kv 220v 20kva Stepdown Power Distribution Transformer

Technical parameter:

Rated Capacity:	20KVA
Primary Voltage:	11KV
Secondary Voltage:	Single phase:220V
Frequency:	50Hz
Phase Number:	Single phase
Three-Phase Vector Group:	Dyn11
Cooling Method:	ONAN
Tap Changer:	±2×2.5%(No-Load Tap Changing)

Daily maintenance work of the 11kv 220v 20kva stepdown power distribution transformer:

The daily inspection mainly relies on "visual inspection, listening with the ears, and touching with the hands (under safe conditions)", focusing on identifying abnormal situations. No professional tools are required and it can be completed by on-site operation personnel.

1.Visual inspection: Check whether the casing of 11kv 220v 20kva stepdown power distribution transformer, connection terminals, and insulators are intact, without damage, cracks, loosening, or rust.For oil-immersed transformers, check that the oil tank sealing area has no oil leakage or oil seepage, and the oil level indicator is within the normal range (not too high or too low).

2.Operating status: Listen to the transformer's operating sound. It should be a uniform "buzzing" sound and no sharp abnormal sounds, impact sounds, or uneven noises. Touch the casing (for dry-type) or the oil tank (for oil-immersed type), and the temperature should be within the normal range, without abnormal overheating.For 11kv 220v 20kva stepdown power distribution transformer oil-immersed type, the oil tank temperature should not exceed 75℃, and for dry-type, the winding temperature should not exceed 105℃.

3.Wiring and protection: Check that the high and low voltage connection terminals are not loose, not overheating, and not discolored.For outdoor installed equipment, check that the protective casing has no debris accumulation, no water accumulation, the grounding device is firm, and there is no breakage or detachment.

4.Environmental inspection: There should be no flammable or explosive items around the 11kv 220v 20kva stepdown power distribution transformer, no obstructions, and good ventilation. For dry-type transformers, avoid dusty and humid environments, and for oil-immersed transformers, keep away from fire sources and high-temperature areas.
