100 Kva Distribution 13.8 Kv Pole Transformers

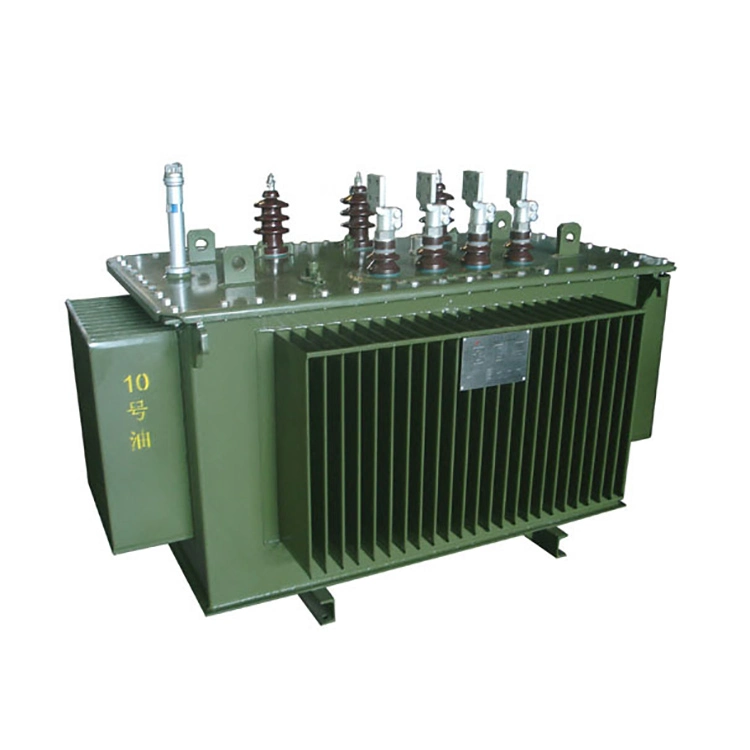

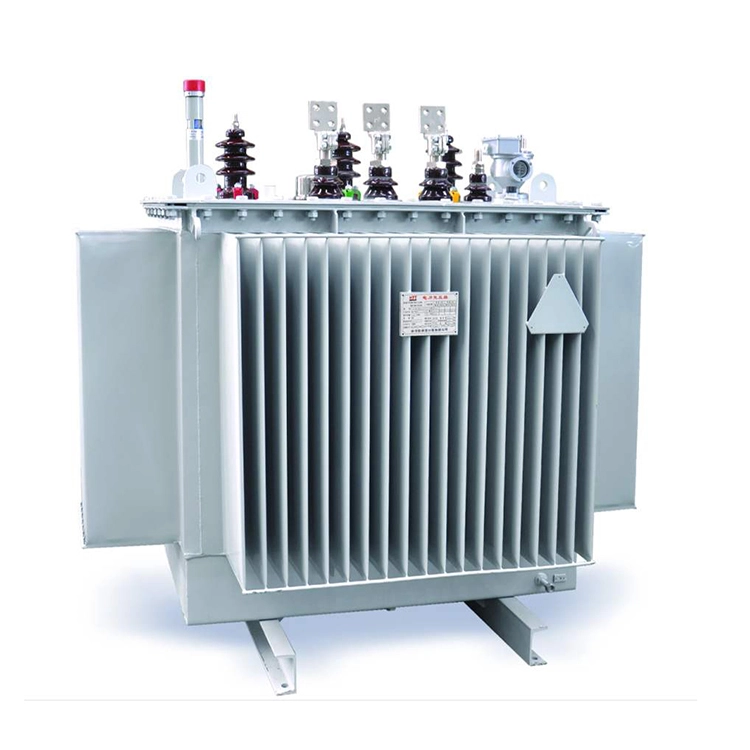

This 100 kva distribution 13.8 kv pole transformer has a rated capacity of 100 kVA. The primary side voltage is 13800V (in delta connection), and the secondary side voltage can be 120/240V, 240/480V or other customization voltage. This transformer can be connected to a three phase power grid system to provide low voltage power to the distribution system.

Using high voltage porcelain bushings, the primary side of 100 kva distribution 13.8 kv pole transformer has double bushings, and the secondary side has three bushings. The overhead distribution transformer uses copper windings and oriented silicon steel cores, consisting of one coil and two iron core rings. The tin plated terminals on the primary side and secondary side can be connected to copper or aluminum conductors.

As a professional distribution transformer, 100 Kva Distribution 13.8 Kv Pole Transformers adopts an energy saving coil core design, which not only ensures the stability of operation but also effectively reduces energy consumption. Manufactured with advanced technology , this pole type distribution transformer ensures long run reliability and a long service life.

Each device has undergone strict comprehensive acceptance tests, and we have maintained a zero failure rate record for over 10 years. Meanwhile, the 100 kva distribution 13.8 kv pole transformer complies with IEC, ANSI and other major international standards, ensuring compatibility with global power grid systems.

Technical parameter:

Q:For a 100 kva distribution 13.8 kv pole transformer, when selecting the model and conducting installation, how should the specific configurations of fuses, lightning arresters and grounding protection be determined to meet the reliability requirements of rural or remote area power grids?

A:

1.The fuse is selected based on 2 to 2.5 times the rated current of the 100 kva distribution 13.8 kv pole transformer's high voltage side (approximately 7.25 A). It is recommended to use a 15 to 20 A drop out fuse to reliably avoid the excitation surge current during the closing operation (usually 8 to 12 times the rated current, lasting within 0.1 seconds), while ensuring that the transformer can quickly melt and isolate in case of short circuit or overload inside the transformer.

2.The lightning arrester is selected as a gapless zinc oxide (MOV) type with a rated voltage of 15 kV or 18 kV, installed on the high voltage side between the fuse and the 100 kva distribution 13.8 kv pole transformer bushing.

3.Its grounding terminal is directly connected to the grounding terminal of the transformer's casing to absorb lightning strikes or operational overvoltages and limit residual voltage. The grounding protection requires the 100 kva distribution 13.8 kv pole transformer's neutral point to be directly grounded (depending on the system grounding type, such as TN C or TN S), and the grounding terminals of the casing and the lightning arrester share a single grounding electrode. The power frequency grounding resistance should not exceed 10Ω in rural power grids or 4Ω in urban and high-reliability areas, thus achieving the safe discharge of fault current and protection of personnel and equipment.

The coordinated configuration of these three elements can meet the overcurrent, overvoltage and grounding fault protection requirements of the pole mounted transformer.
