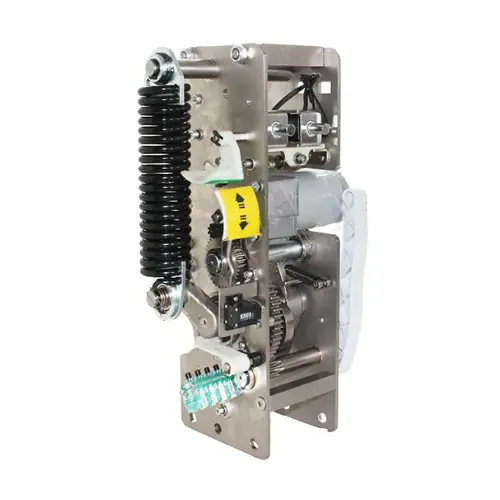

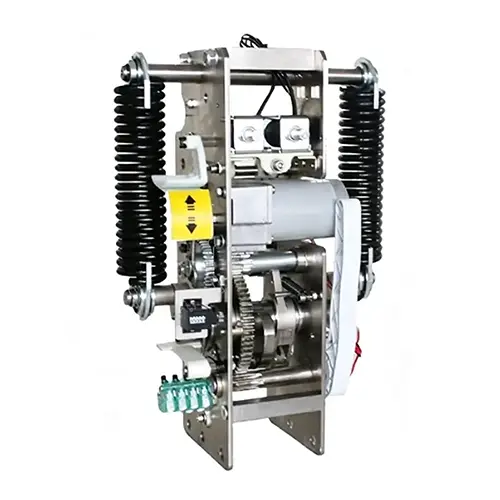

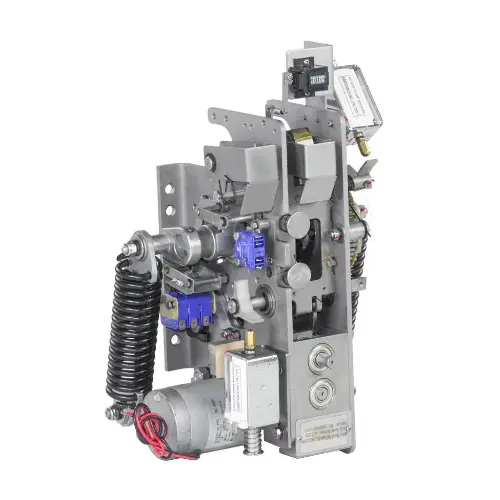

The vacuum circuit breaker VCB motor operating mechanism is a high-reliability, long-life mechanical drive unit specially designed for medium-voltage vacuum circuit breakers (12kV, 24kV, 40.5kV). It integrates motor energy storage, mechanical latching, rapid closing & opening, and manual emergency operation, providing stable and consistent power for circuit breaker switching in power distribution systems, power plants, industrial power supply, and smart grids.
| Parameter Category | Key Specification |
| Applicable Voltage Level | 12kV/24kV/40.5kV |
| Matching VCB Type | VS1,ZN63,ZN85,VD4 (indoor type) |
| Mechanical Life | Standard:≥10,000 times; Long-life:≥30,000 times |
| Operation Sequence | 0-0.3s-CO/CO-15s-Co |
| Closing/Opening Time | Closing:≤80ms;Opening: ≤50ms |
| Closing/Opening Speed | Closing:0.6-0.8 m/s; Opening:1.0-1.3 m/s |
| Control Voltage | AC220V/DC220V/ DC110V/DC48V (customizable) |
| Energy Storage Time | ≤10s |
| Ambient Temperature | -25℃~+40℃ |
| Operation Mode | Motor energy storage + electrical operation + manual emergency operation |
Customization Service:OEM/ODM services; tailored design for special VCB models and working conditions.
Pre-sales Technical Support:Technical consultation, program design, installation guidance.
After-sales Service:24-hour response; on-site commissioning, maintenance training.
Q:What are the Pros and Cons of VCB?
A:There are many advantages to VCB, but they are not appropriate for every situation.
Pros：
VCB is safer than circuit breaker that use other insulating mediums like oil or air blast. There is less chance of a fire or explosion, and they do not use any harmful chemicals.
VCB have a long life. When well-constructed, they require very little maintenance and you will not have to replace them as often.
A vacuum is one of the most effective dielectric mediums. It can quickly extinguish an arc and rest for frequent use.
Cons:
For high-voltage VCB, the price will also be relatively high.
The maintenance work of vacuum circuit breakers is quite challenging and usually cannot be carried out on-site.
Q:How to select the suitable vacuum circuit breaker VCB motor operating mechanisms?
No mechanism technology is universally superior. The spring system can provide reliable performance for conventional switching tasks at a lower cost, and is suitable for standard applications. The magnetic drive has demonstrated its value advantage in high-demand applications by reducing maintenance costs and enhancing durability. The electric repulsive drive occupies a special field in applications requiring ultra-fast disconnection, and offers an irreplaceable value.
The appropriate mechanism technology should be selected based on the actual operating conditions, maintenance capabilities and budget, rather than solely relying on theoretical specifications.
If you need to know more about it,Contact our professional technical team for mechanism selection guidance tailored to your specific application requirements.
Q:What tests will be conducted before the shipment of vacuum circuit breaker VCB motor operating mechanisms?
A:Mechanical Characteristic Test:Using high-precision mechanical characteristic tester to test
Closing/opening time, speed, stroke, overtravel, bounce;
Spring Performance Test: Spring force and energy storage/release efficiency.
Electrical Test: Control circuit voltage range, coil resistance, insulation resistance, and withstand voltage.
Reliability Test: Mechanical life test (≥10,000–30,000 operations), temperature cycling (-40°C to +85°C), humidity, and salt spray test.
Noise & Vibration Test: Ensuring low noise and stable operation.
Final Inspection: 100% full-function test before packaging and only qualified products with test reports are delivered.
