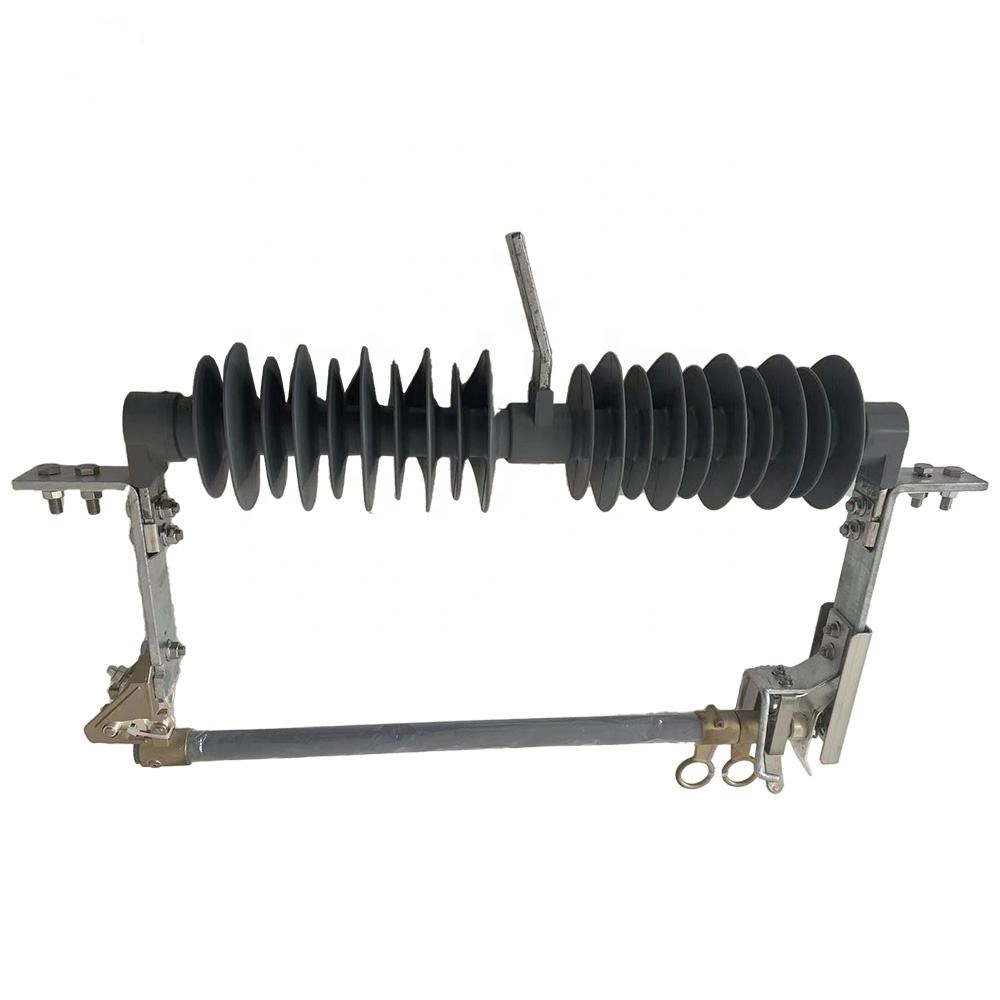

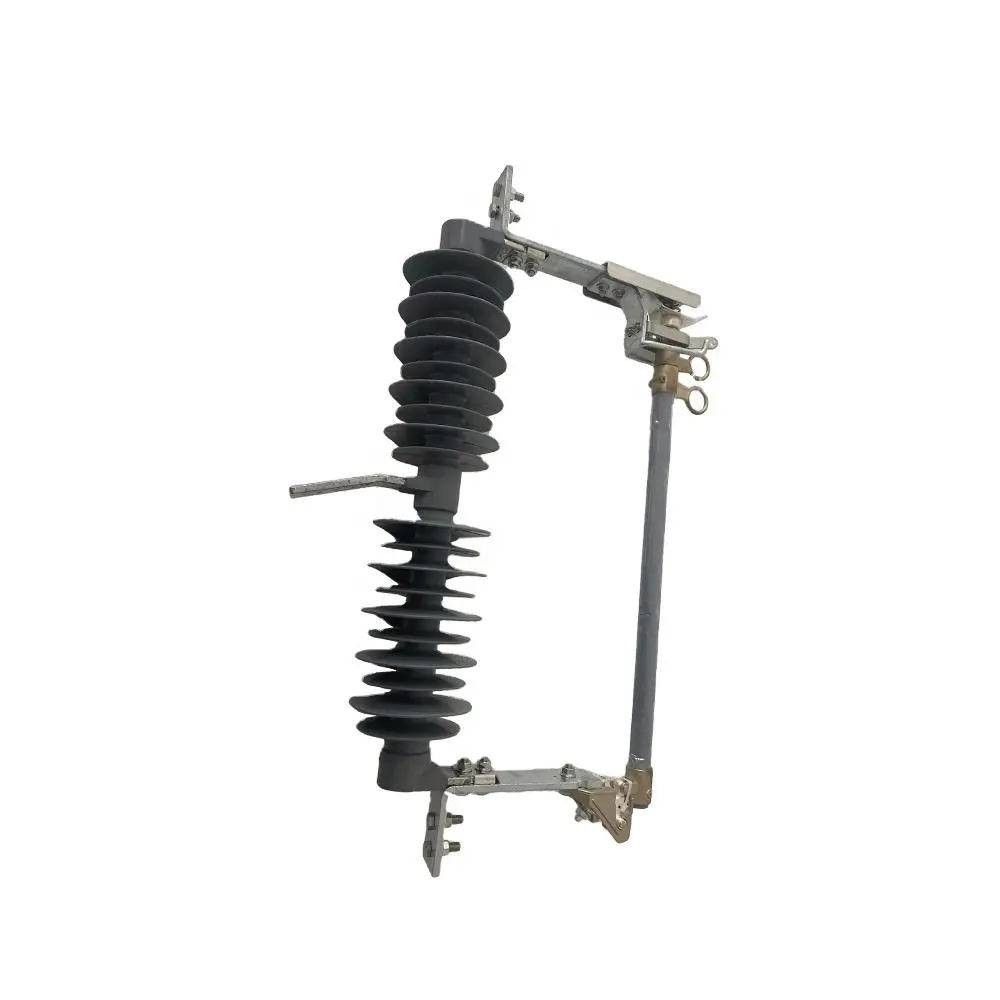

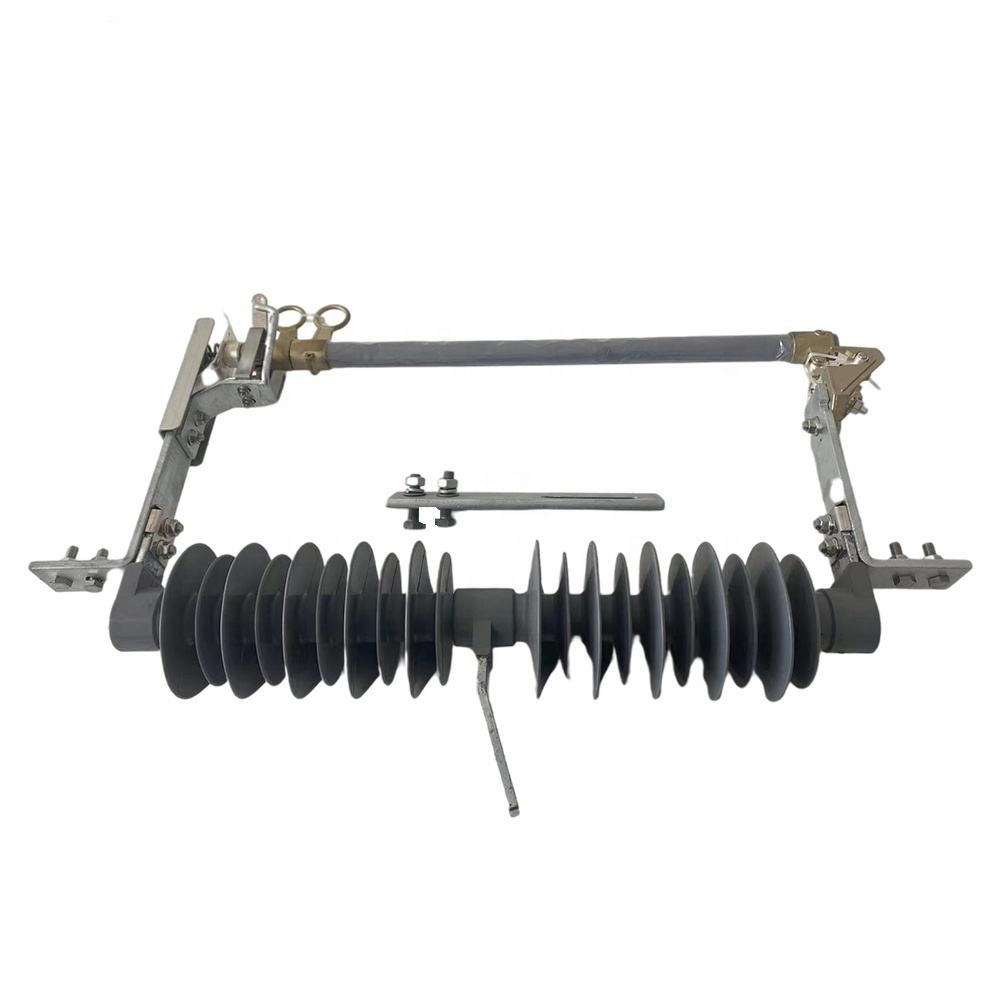

Polymeric 11kv 33kv Drop Out Fuse Set 22kv

A polymeric 11kv 33kv drop out fuse set 22kv is an medium voltage electrical device to protect power distribution system from over load and short circuit. the core principle of a polymeric 11kv 33kv drop out fuse set 22kv is straightforward. when the current exceeds a preset value, the fuse element melts to interrupt the circuit and to protect electrical equipment and lines from damages. The device typically consists of a fuse element, a porcelain or polymer insulator, a supporting frame, and a drop out mechanism. When an over current occurs, the fuse melts quickly, and the drop-out mechanism releases the fuse from the circuit, effectively isolating the faulted section. The advantages of 11kv 33kv drop out fuse set 22kv can be show as the below:

1. Simple structure and low cost:

The design is relatively simple, which reduces manufacturing and maintenance costs to make it suitable for large scale applications.

2. High reliability:

The fuse cutout can reliably disconnect the circuit quickly and effectively in the event of a fault as the simple operation method and structure

3. Ease of operation:

The drop out mechanism provides a visible disconnect point to allow operators to easily observe and identify faults to facilitate inspection and maintenance.

4. Strong adaptability:

11kv 33kv drop out fuse sets 22kv can operate reliably under a variety of harsh environmental conditions, including high or low temperatures and high humidity to ensure stable performance in diverse service conditions.

Technical Parameter:

Product FAQ:

1. What voltage classes do 11kv 33kv drop out fuse sets 22kv cover?

A: These drop out fuse cutouts are designed for overhead distribution systems with nominal voltages of 11 kV, 22 kV or 33 kV. For example, matched sets for 11 kV systems are widely produced. When specifying a fuse set, the rated voltage must exceed the system nominal voltage to ensure sufficient insulation and clearing margin.

2. Q: What rated currents are typical on a 11kv 33kv drop out fuse set 22kv?

A: Standard current ratings for these units often include 100 A and 200 A, which depends on the application and system design. It is necessary to match the rated current of the cut out fuse to the maximum expected continuous load to avoid nuisance operation.

3. Q: What are the main components of the 11kv 33kv drop out fuse set 22kv?

A: A typical drop out fuse set comprises:

1. The insulating support. Commonly, it is made up of porcelain or polymer post.

2. The static contacts at each end of the support.

3. The moving contact plus the fuse tube or fuse holder, which contains the fuse link and arc quenching inner tube.

4. Connection and mechanical arrangement allow supports a visible disconnect or connection point once the fuse link operates.
