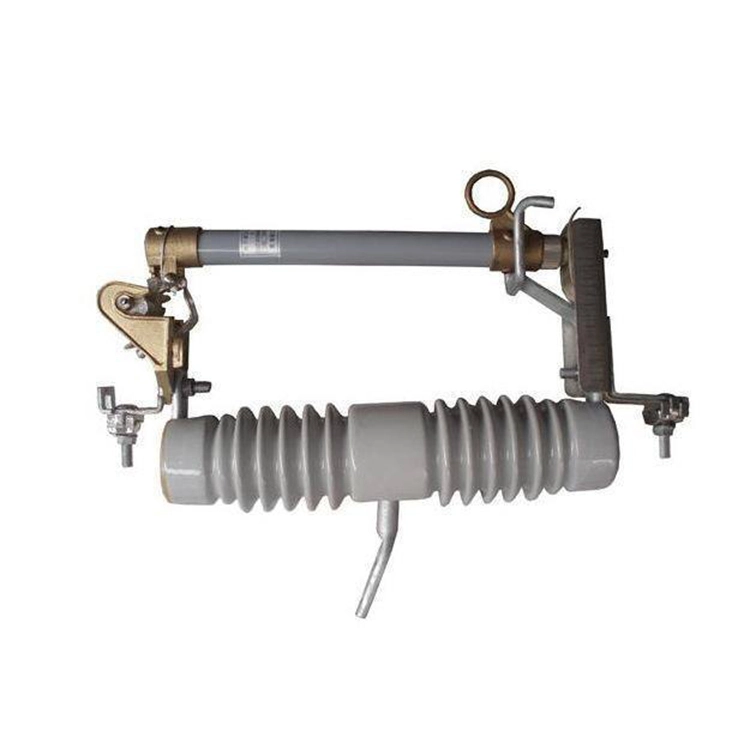

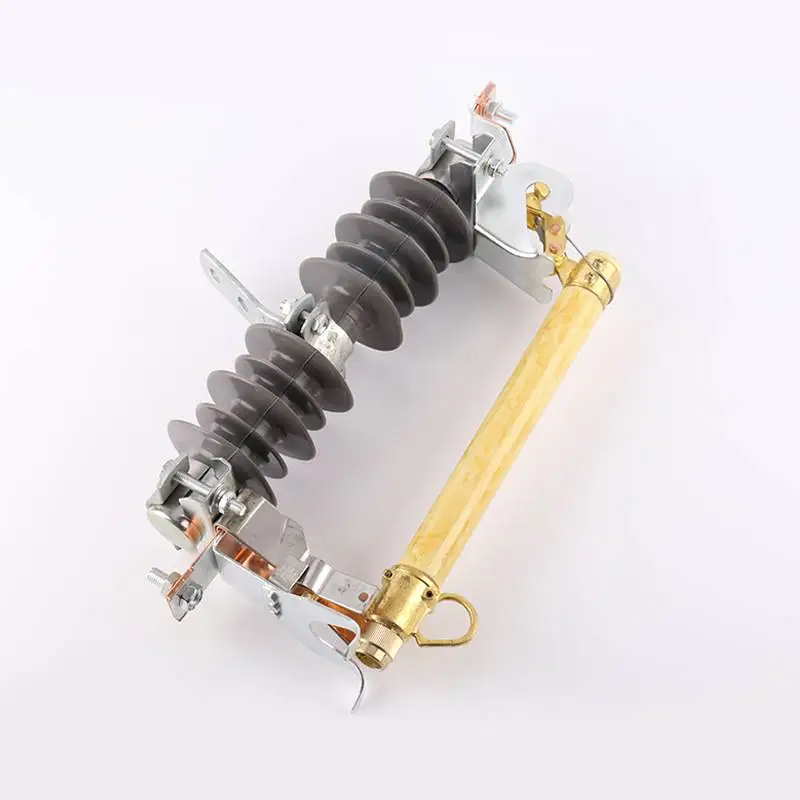

27kv Polymer Pole Mounted Electrical Fuse Cutout

A 27kv polymer pole mounted electrical fuse cutout is a type of circuit protection device known for several distinctive advantages.

1. High reliability:

The fuse is made from carefully selected materials and produced under strict manufacturing control in Wenzhou XiFa Electric Power Equipment Co., Ltd. Each unit is thoroughly tested to ensure long term stability and smooth operation.

2. Fast response:

In the case of an abnormal condition or fault in the circuit, the fuse link melts rapidly to disconnect the line and to protect connected electrical equipment from damage.

3. Strong safety performance:

The outer housing and insulator are made of solid insulating materials to ensure safe operation and to reduce the risk to maintenance personnel as the least as possible.

27kv polymer pole mounted electrical fuse cutouts are widely used across various parts of power distribution systems:

1. Medium voltage substations:

They are installed to protect substation equipment and feeder circuits against overloads and short circuits.

2. Distribution transformer stations:

Commonly used on the medium voltage side of distribution transformers, they safeguard electrical and electronic equipment from faults and over current, while providing a visible disconnecting point.

Technical Parameter:

Product FAQ:

Q: What maintenance is required on a 27kv polymer pole mounted electrical fuse cutout?

1. Check the fixed and moving contacts to ensure proper alignment and tight contact. Verify that the contact surfaces are clean and free from burn marks or pitting.

2. Inspect the operating mechanism to confirm that all rotating parts move freely without rust or stiffness. Ensure that no components are damaged and that all springs are intact and free from corrosion.

3. Examine the fuse link for any signs of mechanical or thermal damage. After long-term operation, check whether the element shows excessive elongation or loosening caused by heat.

4. Inspect the fuse tube for signs of deterioration after multiple operations. Verify that the inner arc-extinguishing tube is not burnt or deformed, and that the outer surface has not been damaged by prolonged exposure to sunlight or rain. The overall length should remain within the specified tolerance.

5. Clean the insulators and check for cracks, surface contamination, or discharge marks. After disconnecting both upper and lower leads, measure the insulation resistance with a 2500 V megohmmeter; the reading should be greater than 300 MΩ.

6. Inspect the upper and lower connecting leads to ensure all connections are tight. Check for any signs of discharge, overheating, or loose joints.

Q: Is a 27kv polymer pole mounted electrical fuse cutout suitable for coastal or tropical areas?

A: Yes. Fuse tubes and polymer insulators can be specified with UV resistant, moisture proof, and extended creepage distance designs to withstand humid, salty, or high pollution environments.
