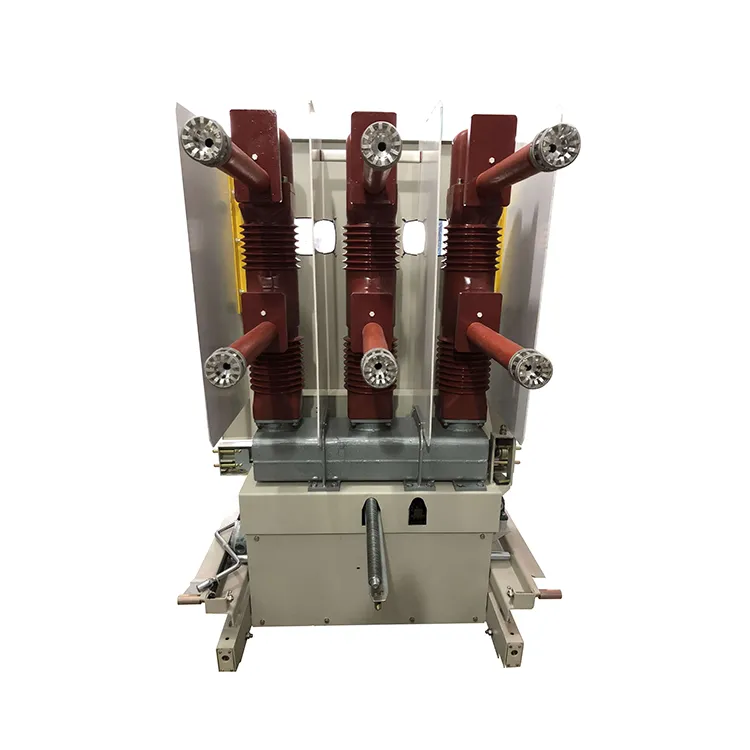

35 36 Kv Medium Voltage Vacuum Circuit Breaker

Wenzhou XiFa Electric Power Equipment Co., Ltd is a professional manufacture 35 36 kv medium voltage vacuum circuit breaker in Yueqing City Zhejiang Province China. To produce a reliable 35 36 kv medium voltage vacuum circuit breaker, the factory strictly follow the quality control policy. Before the purchasing stage, suppliers of main components is necessary to be verified such as operating mechanism, vacuum interrupter, and insulation parts. Each components will be inspected again when arrived. In the producing stage, inspector will monitor the workshop to ensure the producing process running correctly. Before each 35 36 kv medium voltage vacuum circuit breaker deliver, factory test will be run to ensure a beautiful user experience to our clients.

Send Inquiry

Product Description

A 35 36 kv medium voltage vacuum circuit breaker is designed for reliable control and protection of electrical equipment in power distribution networks. It is widely used in substations, industrial facilities, and power plants where stable performance and high breaking capacity are required.

The 35 36 kv medium voltage vacuum circuit breaker uses a vacuum interrupter as the arc extinguishing medium. When the contacts separate, the arc is quickly quenched in a vacuum environment, ensuring minimal wear on the interrupter and long mechanical life. This technology allows the 35 36 kv medium voltage vacuum circuit breaker to handle frequent operations and short circuit interruptions with excellent efficiency.

The compact design typically integrates the interrupter, operating mechanism, and insulation components into a sealed housing, which protects the internal parts from dust, humidity, and pollution. It makes the 35 36 kv medium voltage vacuum circuit breaker suitable for a wide range of environmental conditions.

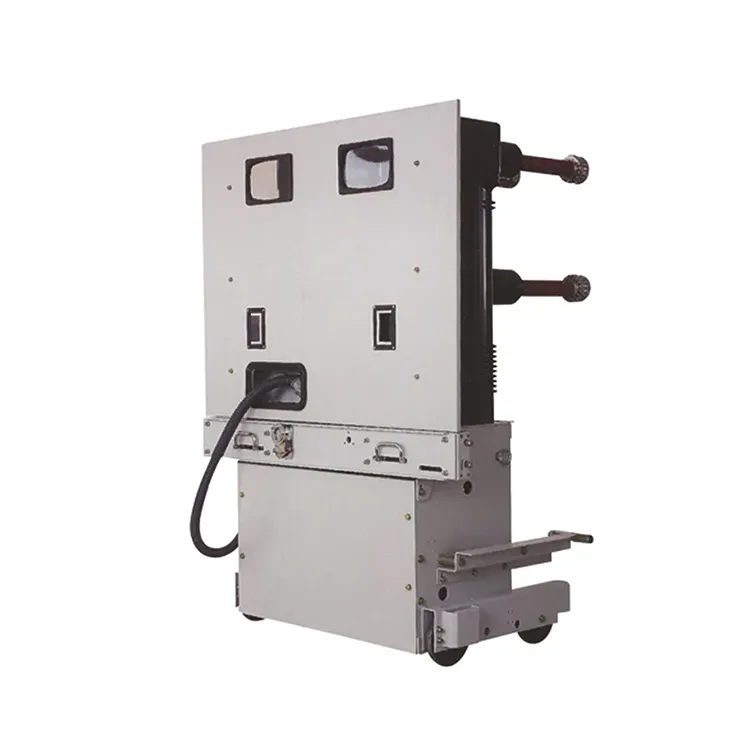

35 36 Kv Medium Voltage Vacuum Circuit Breaker

Technical Parameter:

Max. Working Voltage (kV)	40.5
Rated Frequency (Hz)	50
Rated Lighting Impulse Voltage tolerance (kV)	185
1 min Power Frequency Voltage (kV)	95
Rated Short Circuit Breaking Current (kA)	25		31.5
Rated Current (A)	630	1250		1600
Operation Voltage (V)	AC 220/110 DC 220/110
Motor Rated Power (W)	≤230
Motor energy storage time (s)	≤15
Closing and tripping time of contact (ms)	≤3
Contact travel (mm)	7.5±1.5
Contact spacing (mm)	20±2
Mechanical Life (times)	10000
Rated Short circuit Breaking Times (times)	20

35 36 Kv Medium Voltage Vacuum Circuit Breaker

Product FAQ:

Q: What is a 35-36 kV medium voltage vacuum circuit breaker for?

A: It is used in power distribution systems with 35 or 36 kV voltage levels. Examples include power substations, industrial plants and large commercial facilities. It provides short circuit protection for transformers, cables and other equipment.

Q: How do 35-36 kV medium voltage vacuum circuit breakers work?

A: When a fault occurs, the circuit breaker breaker contacts inside its sealed vacuum interrupter. Since the vacuum environment does not support a continuous discharge, the resulting arc is quickly extinguished. This ensures that the fault current is cut off quickly and contact wear is minimized.
