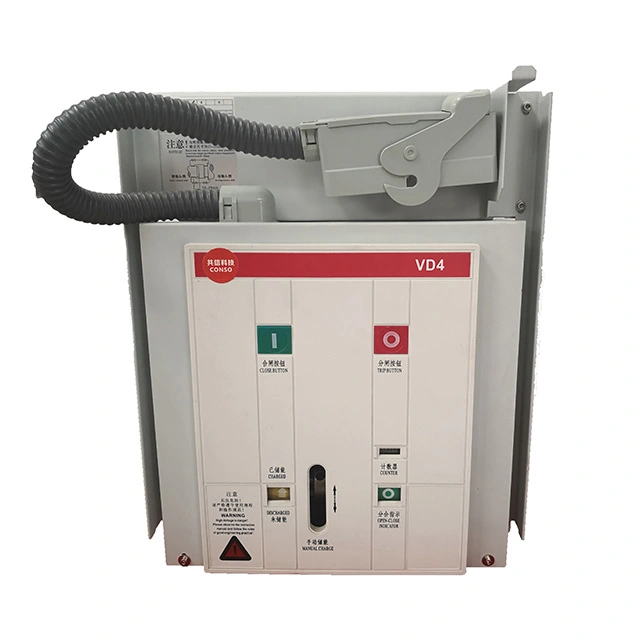

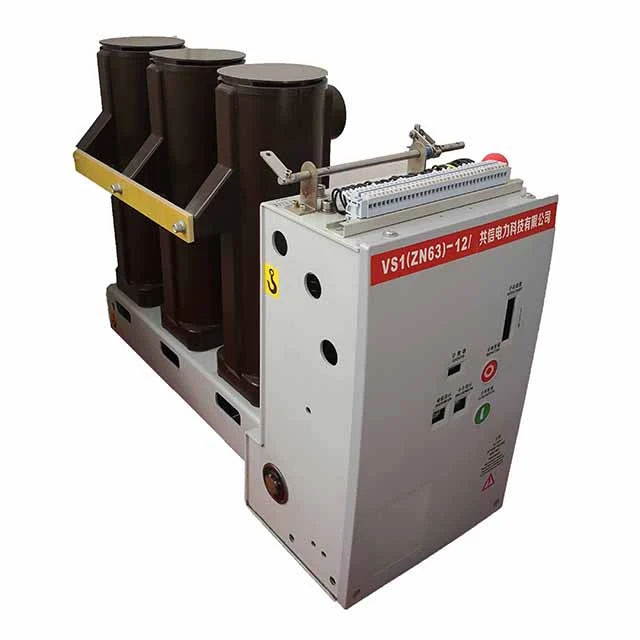

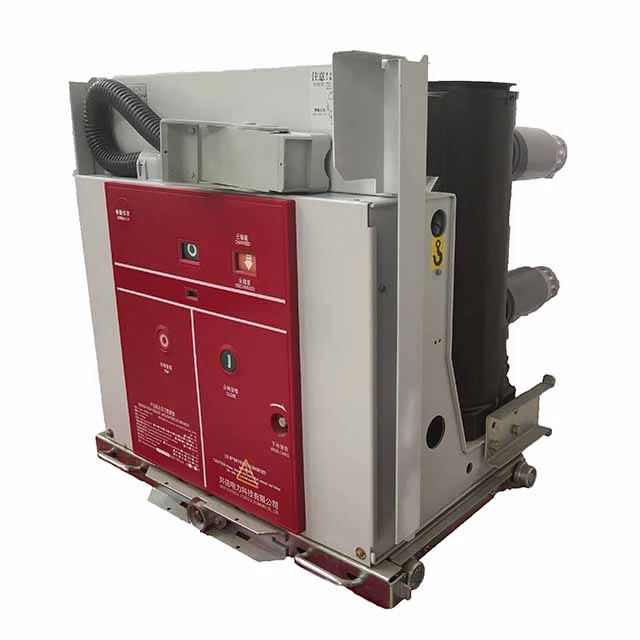

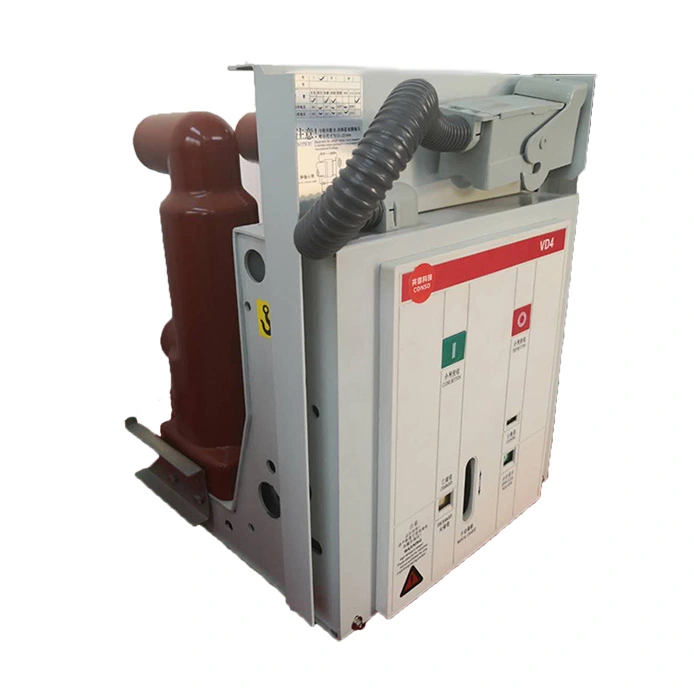

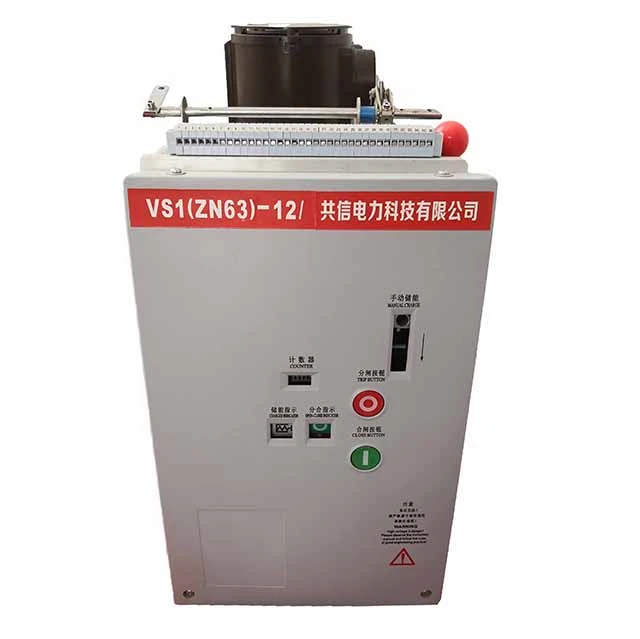

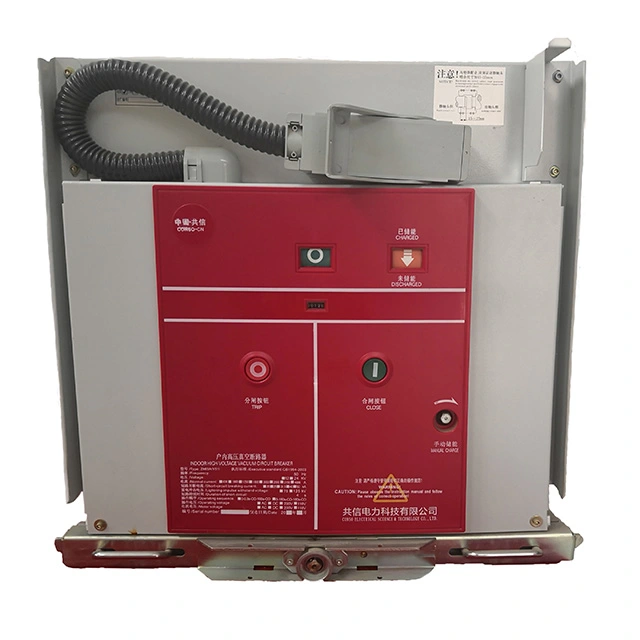

The The 11kv vacuum circuit vcb breaker switch indoor is a medium voltage switching device designed for reliable control and protection of electrical power systems. It utilizes advanced vacuum interrupter technology to extinguish the arc. The Structure features can be show as the below:
1. It provides rapid arc extinction with minimal contact erosion for vacuum circuit breaker;
2. It ensures reliable interruption under the case of short circuit and overload currents.
1. It is compact design and reliable performance, capable of frequent operations;
2. It requires minimal maintenance compared with traditional mechanisms.
1. It adopts as insulating cylinder pole or cast resin pole for excellent dielectric strength.
2. It ensures stable performance in harsh environments.
1. It is available in stationary type or trolley type for easy install into a switchgear.
2. It is compatible with electrical panels such as KYN28 type indoor metal clad cabinets.
|
Max. Working Voltage (kV) |
12 |
||
|
Operation Voltage (V) |
DC 220/110 AC 220/110 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Rated Lighting Impulse Voltage tolerance (kV) |
75 |
||
|
1 min Power Frequency Voltage (kV) |
42 |
||
|
Rated Short Circuit Breaking Current (kA) |
25 |
31.5 |
40 |
|
Rated Current (A) |
630 |
630/1250 |
1250/1600 |
|
1250 |
1600/2000 |
2000/2500 |
|
|
1600 |
2500/3150/4000 |
3150/4000 |
|
|
Closing Time (ms) |
35 to 70 |
||
|
Tripping Time (ms) |
20 to 50 |
||
|
Mechanical Life (times) |
10000 or 20000 |
||
|
Rated Breaking Operations (times) |
30 |
||
|
Average Closing Speed (m/s) |
0.5 to 0.8 |
||
|
Average Tripping Speed (m/s) |
0.9 to 1.2 |
||
Q: How is 11kv vacuum circuit vcb breaker switch indoor different from SF6 or oil circuit breakers?
A: The 11kv vacuum circuit vcb breaker switch uses vacuum interrupters to extinguish arcs, which means no oil leakage, no greenhouse gas emissions, and far less maintenance. It is cleaner, safer, and offers longer contact life.
Q: What are the maintenance requirements of a 11kv vacuum circuit vcb breaker switch?
A: Routine inspections are recommended, such as checking contact resistance, mechanical operations, and insulation. However, because vacuum interrupters are almost maintenance free, the 11kv vacuum circuit vcb breaker switch requires very little servicing compared with oil insulated type or SF6 gas insulated type circuit breaker.
Q: Is 11kv vacuum circuit vcb breaker switch suitable for smart grid or remote monitoring?
A: Yes. The 11kv vacuum circuit vcb breaker switch can be combined with protection relays, remote control, and communication devices, of which the components can support SCADA systems and smart grid automation, providing real time monitoring and remote operation.
