2p 100a Tpn Mccb with Rcd Protection

2p 100a tpn mccb with rcd protection normally plays the incoming circuit breaker in a distribution box, where close to electrical equipment. Wenzhou Xifa Electric Power Equipment Co., Ltd has mature production capabilities in manufacturing 2p, TP and TPN 100a mccb with rcd protection unit. Wenzhou Xifa Equipment could produce and supply more than 1000 boxes of 2p 100a tpn mccb with rcd protection within one week. The company has ISO system certification and CE certification for 2p 100a tpn mccb with rcd protection, of which the products serve to photovoltaics, energy storage, industrial manufacturing, and building power distribution.

Send Inquiry

Product Description

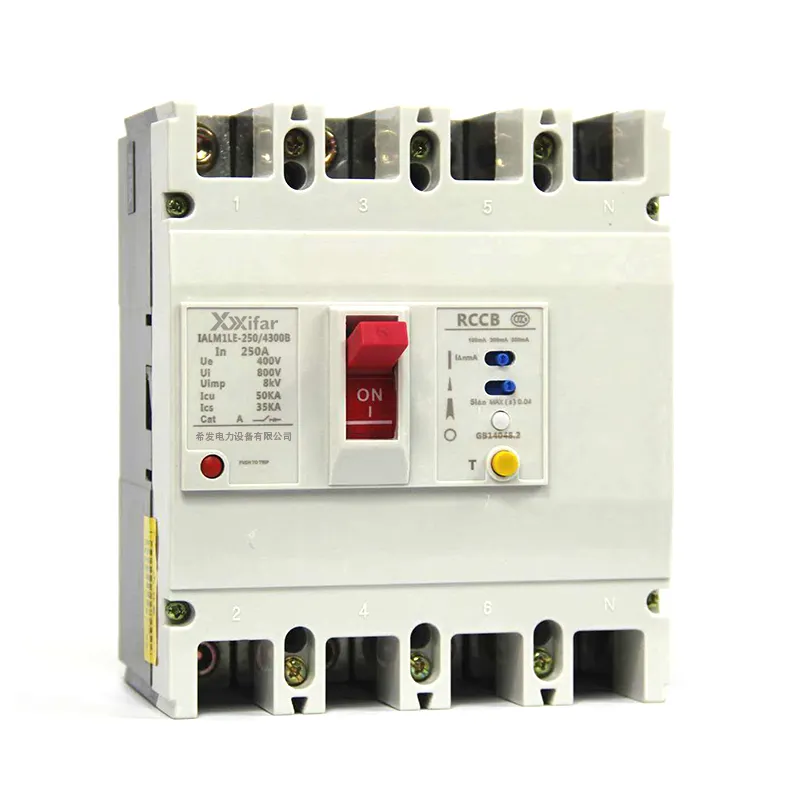

2p 100a tpn mccb with rcd protection is a 100A 2 pole or four pole moulded case circuit breaker with residual current device. It could detect the imbalance of working current to cut off the power supply within milliseconds when the surface of the electrical equipment is electrified.

The 2p 100a mccb with rcd protection is widely applied on single phase electricity, such as residential and commercial circuit, lighting circuit, and small capacity electricity. Aditionally, the 2p means one pole for live wire and another for neutral wire.

The TPN mccb with rcd protection serves on three phase four wire system. Obviously, it is designed for industrial system, photovoltaic inverter output side, and other heavy loading. Compare with 3P mccb, the The TPN mccb with rcd protection could shut down the neutral line with 3 phase live line to supply a safer working environment.

2p 100a Tpn Mccb With Rcd Protection

2p 100a tpn mccb with rcd protection parameter:

Rated Current (A)	100 A
Rated Working Voltage Ue (V)	400V (three phase), 230V (single phase)
Rated insulation Voltage Ui (V)	1000V
Service short circuit breaking capacity Icu	35kA/50kA
Leakage operating current IΔn	30mA (personal protection) 100mA (fireproof) 300mA (system protection)
Action Time	≤300ms/≤30ms
Undervoltage Operate voltage (V)	165 ± 5% for one phase
Overvoltage Operate voltage (V)	275 ± 5% for one phase
Phase Failure Operation Voltage (V)	Default 120 ± 5%

2p 100a Tpn Mccb With Rcd Protection

Product Mode	Pole	Dimension
Product Mode	Pole	L	L1	L2	W	W1	W2	H	H1
M1-63L	2	136	85	117	55	14	25	89	65
	3	136	85	117	78	14	25	89	65
	4	136	86	117	102	14	25	89	65
M1-63M	3	136	85	117	78	14	25	98	74
M1-63M	4	136	86	117	102	14	25	98	74
M1-125L	2	150	88.5	133.5	63	18	30.5	88.5	62
	3	150	88.5	133.5	92	18	30.5	88.5	62
	4	150	88.5	133.5	122	18	30.5	88.5	62
M1-125M	3	150	88.5	133.5	92	17	30.5	105	79
M1-125M	4	150	88.5	133.5	122	17	30.5	105	79
M1-250L	2	165	102	144	74	23	35.5	110	81
	3	165	102	144	107	23	35.5	110	81
	4	165	102	144	142	23	35.5	110	81
M1-250M	3	165	102	144	107	23	35.5	126	99
M1-250M	4	165	102	144	142	23	35.5	126	99
M1-400	3	257	174	225	150	30	48	153	98
M1-400	4	257	174	225	198	30	48	153	98
M1-630	3	270	185	237	180	44	58	160	104
M1-630	4	270	185	237	240	44	58	160	104
M1-800	3	280	205	243	210	46	70.5	155	110
M1-800	4	280	205	243	280	46	70.5	155	110
M1-1250	3	470	265	330	210	46	70	191	137
M1-1250	4	470	265	330	280	46	70	191	137
M1-1600	3	470	265	330	280	46	70	191	137

2p 100a tpn mccb with rcd protection FAQ:

Q1: What does “100A MCCB with RCD protection” mean?

It refers to a moulded case circuit breaker rated at 100A that combines standard overcurrent and short circuit protection with a residual current device. In simple terms, it protects to against short circuit, overload, and earth leakage faults.

Q2: What is the difference between 2P and TPN in MCCB with RCD protection?

A 2P MCCB is designed for single phase systems, where it switches phase and neutral.

TPN is used in three phase four wire systems, where all three phases and the neutral can be isolated. The choice depends on the type of power distribution system.

Q3: What is the benefit to have RCD protection in an 100A MCCB?

The RCD function detects leakage current to earth and disconnects the circuit within milliseconds. It provides additional safety against electric shock and reduces the risk of electrical fires caused by insulation failure or ground faults.
