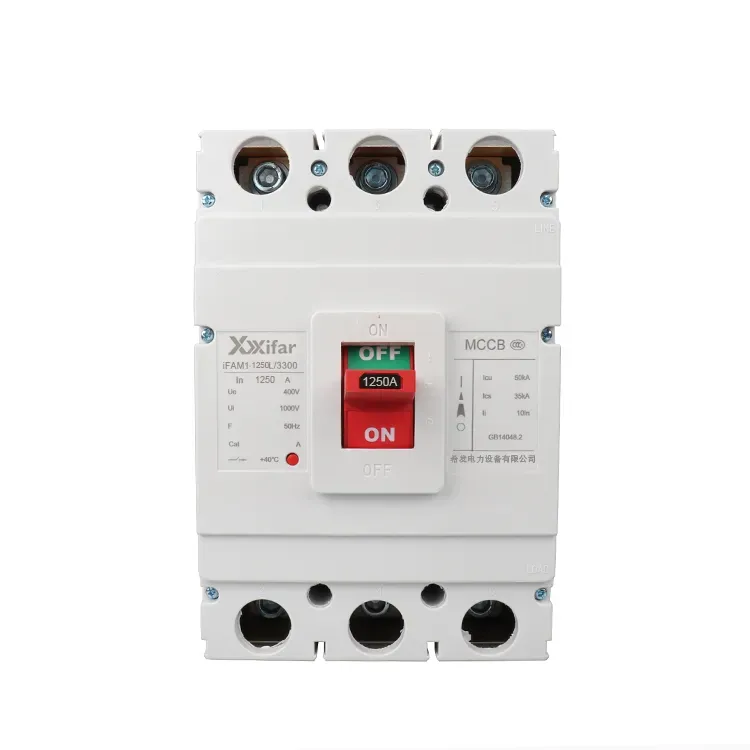

1250a 3pole Tpn 50ka Module Case Circuit Breaker

Thanks to the performance and characteristic, 1250a 3pole tpn 50ka module case circuit breakers are used across a wide range of applications:

1. Industrial power distribution

In factories, 1250a 3pole tpn 50ka module case circuit breakers are commonly installed in workshop distribution panels and motor control centers. 1250A 3 pole and tpn 50kA MCCBs serve as main or feeder breakers, which provide overload and short circuit protection for production lines, large motors, and other industrial equipment.

2. Commercial and public buildings

1250a 3pole 50ka module case circuit breakers are widely applied in office buildings, shopping centers, hotels, hospitals, and schools. Typically, it uses including main distribution feeders, floor level panels, and large lighting circuits, which ensures the safe operation of electrical systems in public facilities.

3. Infrastructure projects

1250a 3pole and tpn 50ka module case circuit breakers are used in the distribution systems of ports, airports, rail transit, and highways. Their reliability and high breaking capacity make 1250a 50ka module case circuit breakers suitable for applications that demand a high level of power continuity and operational safety.

4. Renewable energy and data centers

1250a 3pole and tpn 50ka module case circuit breakers play a key role in photovoltaic plants and wind farms, particularly in power collection and distribution stages. In data centers, 1250a 3pole and tpn 50ka module case circuit breakers are also used in UPS input and output distribution panels to provide essential circuit protection.

5. Residential distribution systems

In residential communities, 1250a 3pole and tpn 50ka module case circuit breakers are typically installed in main distribution rooms or building level panels. MCCBs function as the main incoming switch for buildings or as high capacity incoming breakers for individual units.

1250a 3pole tpn 50ka module case circuit breaker parameter:

Functions of a 1250a 3pole tpn 50ka module case circuit breaker

1. Protection against leakage, short circuit, and overload

1250a 3pole tpn 50ka module case circuit breakers are designed to make, carry, and break current under normal operating conditions. 1250a 3pole tpn 50ka module case circuit breakers can also handle abnormal situations such as overload and short circuit. When the current exceeds the rated value for a certain period, the MCCB module case circuit breaker trips with a time delay to prevent overheating damage. In the case of a short circuit, the 1250A 3P 50kA MCCB module case circuit breaker disconnects the circuit automatically to protect the wiring and connected equipment. Some models are equipped with highly sensitive residual current protection, which provides effective protection against leakage and electric shock. When abnormal conditions exceed safe limits, the MCCB module case circuit breaker interrupts the circuit to prevent damage.

2. Isolation function

The enclosure of a 1250a 3pole tpn 50ka module case circuit breaker is made of insulating material, which separates live conductors from grounded metal parts. All internal components are enclosed within this molded housing, which forms a compact structure. Once the current exceeds the preset trip value, the a 1250a 3pole tpn 50ka module case circuit breaker opens the circuit automatically to ensure both equipment protection and user safety by isolating the faulted section.

3. Current limiting and interruption capability

1250a 3pole tpn 50ka module case circuit breakers are capable of safely interrupting fault currents, including high short circuit currents. 1250a 3pole tpn 50ka module case circuit breakers are characterized by several rated breaking capacities, such as the rated short circuit breaking capacity (Icn), ultimate short circuit breaking capacity (Icu), service short circuit breaking capacity (Ics), and short time withstand current (Icw), which define their ability to handle and clear fault conditions.
