Zero Sequence Ct Current Transformer Donut Type

To produce a solid quality zero sequence ct current transformer donut type, Wenzhou XiFa Electric Power Equipment Co., Ltd adopts raw materials with good quality and competitive price. In the process of winding, Wenzhou XiFa adopts oxygen free copper enameled wire to ensure the electrical conductivity and mechanical strength for each zero sequence ct current transformer donut type. Meanwhile, in the process of core producing, Wenzhou XiFa uses high magnetic permeability silicon steel sheet to keep a excellent performance on sensitive response to tiny zero sequence current.

Send Inquiry

Product Description

A zero sequence ct current transformer is a single turn, through core device used in power systems to monitor zero sequence currents. It serves as a critical component of protective relaying systems, which is primarily employed for detecting ground faults, leakage currents, and insulation monitoring. By sensing the vector sum of three phase currents and the resulting zero sequence current, the zero sequence ct current transformer can trigger protection operations and interface with low current grounding selectors, digital harmonic suppression devices, and relay protection units to provide fault alerts and disconnect power.

Structurally, the zero sequence ct current transformer consists of a toroidal core and secondary winding encapsulated within an epoxy resin or silicone rubber housing, offering moisture resistance and pollution flash over protection. Installation options include solid , which requires pre-passed cables and split core designs, which allow to retrofit without disconnecting cables.

It is compatible with 50 Hz power systems, which provides the sensitivity and linearity required for various neutral point configurations, including grounded and ungrounded systems. Zero sequence ct current transformers are widely applied in smart grids, rail transit, building electrical systems, and industrial equipment monitoring, to provide reliable fault detection and system protection.

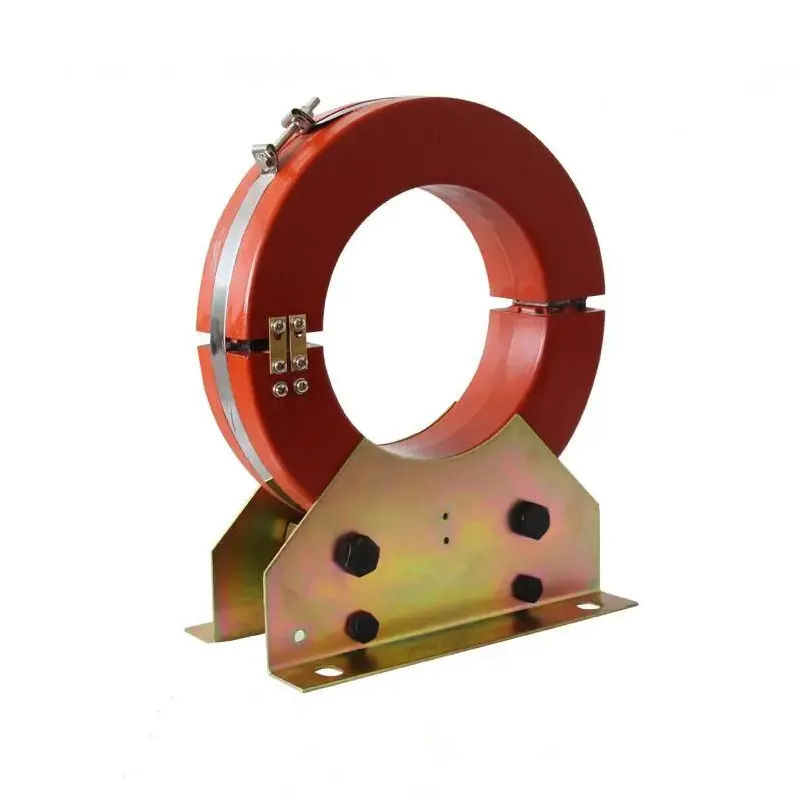

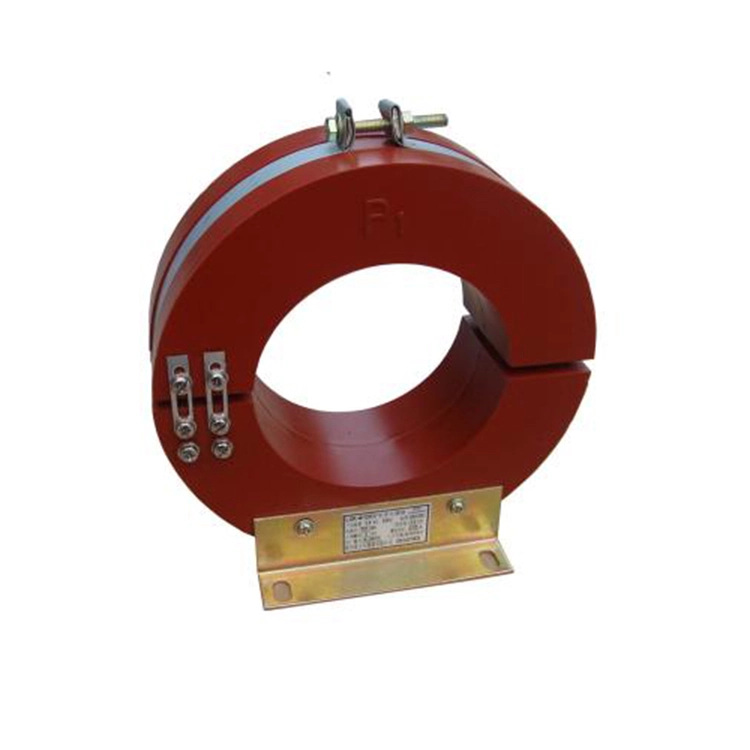

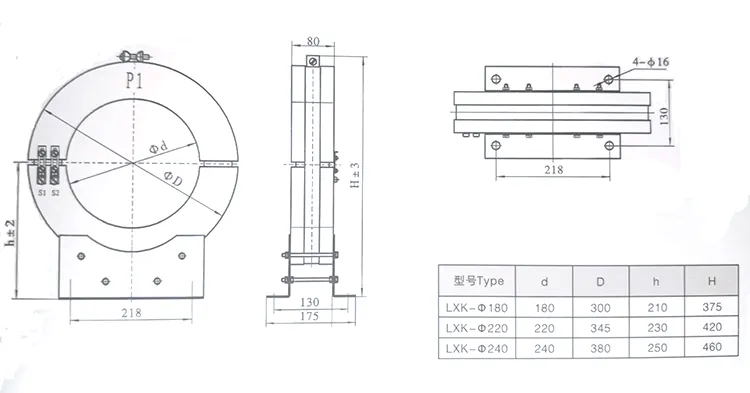

Zero Sequence Ct Current Transformer Donut Type

Type	Type of Relay	Connection Metod	Scale Value	Primary Current	Type	Type of Relay	Connection Metod	Scale Value	Primary Current

LXK-Φ80 LXK-Φ100 LXK-Φ120 LXK-Φ150	DD11/60	Series	15*1	2.4-4.5	LXK-Φ180 LXK-Φ220 LXK-Φ240	DD11/60	Series	15*1	2.4-4.5
			30*1					30*1
		Parallel	15*2	3-5			Parallel	15*2	3-5
			30*2					30*2
	DD1/60	Series	15*1	3-5		DD1/60	Series	15*1	3-5
			30*1					30*1
		Parallel	15*2	3-6			Parallel	15*2	3-6
			30*2					30*2

Zero Sequence Ct Current Transformer Donut Type

Product FAQ:

Q: What is a donut type zero sequence ct current transformer?

A donut type zero sequence CT current transformer is a through core device designed to detect zero sequence currents in three phase systems. Its toroidal core allows the primary conductor to pass through the center, providing non-intrusive monitoring of ground faults, leakage currents, and insulation conditions.

Q: How does the donut type zero sequence ct current transformer output signal?

A: The donut type zero sequence ct current transformer converts zero sequence current into a proportional voltage or secondary current using high precision winding and Rogowski coil technology. This output is compatible with relays, meters, and monitoring systems for fast and accurate fault detection.

Q: What are the typical applications of a donut type zero sequence ct current transformer?

A: a donut type zero sequence ct current transformer is commonly used in:

1.Ground fault protection and leakage current detection;

2.Neutral point monitoring in power distribution systems;

3.Integration with digital protection relays, harmonic suppression devices, and smart grid monitoring systems.

4.Industrial equipment, building electrical networks, and rail transit systems.
