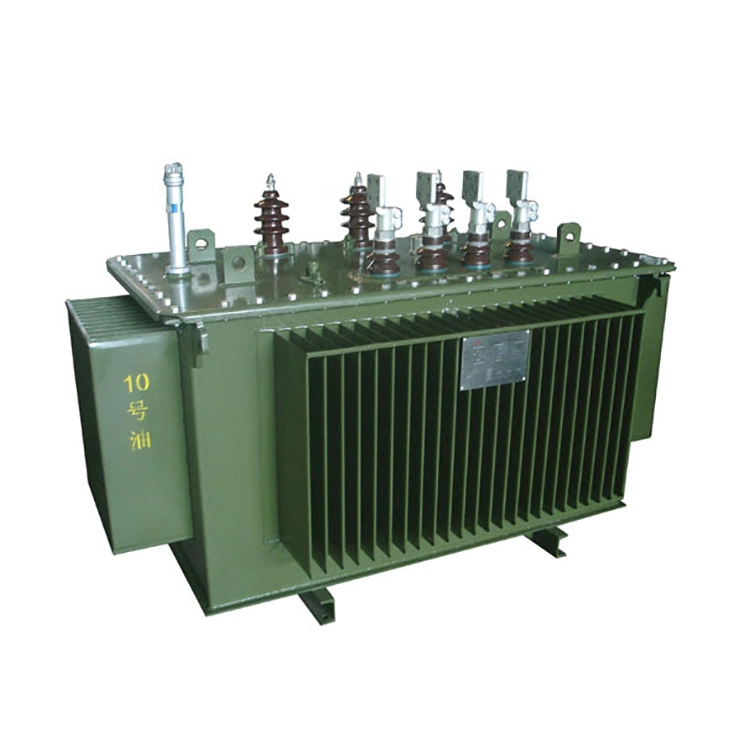

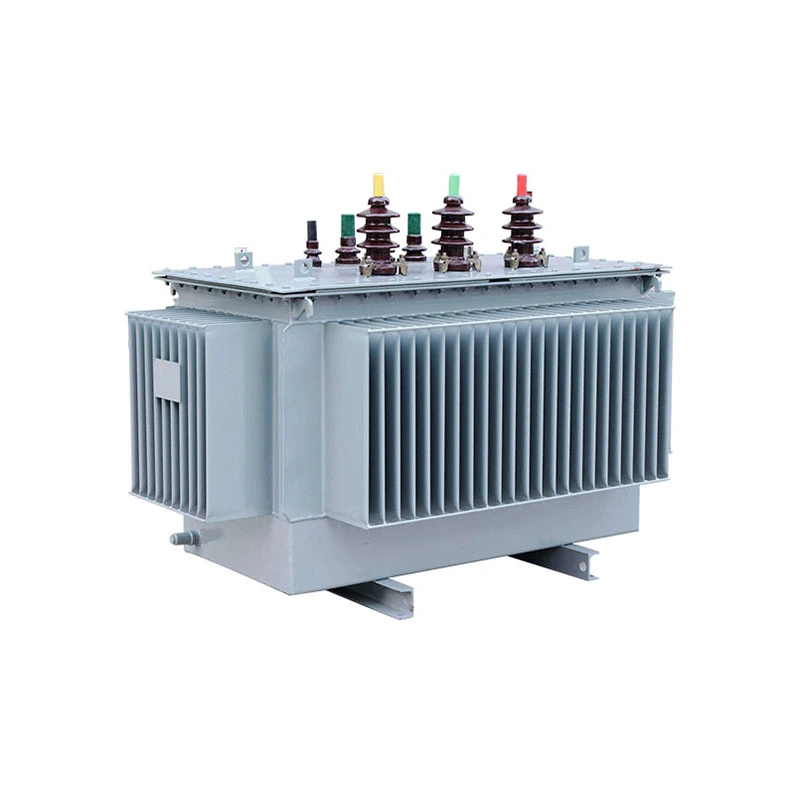

SH15 160 Kva Amorphous Alloy Transformer

Features:

1.Amorphous alloy is a new type of energy saving core material made through the rapid quenching process. Its metal atoms are arranged in an unordered amorphous state, different from the crystalline structure of traditional silicon steel. The magnetization and demagnetization processes are more sensitive, and the magnetic hysteresis loss is significantly reduced. The thickness of this SH15 160 kva amorphous alloy transformer's core is only 0.025mm, less than one tenth of that of ordinary silicon steel sheets. Also the magnetic circuit loss is extremely low. From the material level, this transformer achieves energy saving and consumption reduction .

2.The SH15 160 kva amorphous alloy transformer takes advantage of the superior characteristics of amorphous alloy cores, which features high saturation magnetic flux density, ultra low loss, low excitation current, and excellent temperature stability. Compared with traditional silicon steel transformers of the same capacity, the amorphous alloy transformer's no load loss decreases by more than 70%, and the no load current is only 0.7%. It can effectively reduce the ineffective energy consumption during no load and light load operation of the power grid, and is suitable for the long run light load operation characteristics of distribution transformers. At the same time, it has strong weather resistance and performs stably in the range of -30℃ to 40℃.

3.The SH15 160 kva amorphous alloy transformer adopts a mature three phase five column integrated closed core structure, discarding the traditional splicing core design, eliminating the additional losses and operating noise caused by the splicing gaps. The core is fixed by a high strength forming frame, with a compact and stable structure, which can effectively avoid the incremental loss caused by long term vibration and loosening. The high and low voltage windings adopt a regular rectangular dense winding structure, with uniform force and strong stability, combined with a 4.0% standard short circuit impedance, possessing excellent short circuit resistance and operating safety and reliability.

4.The amorphous alloy transformer adopts a fully sealed corrugated oil tank structure, without the need for a storage tank. By using corrugated plates to adaptively compensate for the thermal expansion and contraction of insulating oil, it can isolate air and moisture, delay insulation aging, prevent oil deterioration, achieve long term maintenance free operation, and significantly reduce the later operation and maintenance costs.

Technical parameter:

Special Precautions for SH15 160 kva amorphous alloy transformer：

1.Handle with care, avoid impact: During maintenance, strictly prohibit colliding or striking the amorphous alloy core with hard objects, because it is extremely sensitive to mechanical stress and may lead to a significant increase in losses.

2.Pay attention to changes in noise: Listen to the sounds during operation. If the noise suddenly increases or there are abnormal noises, stop the SH15 160 kva amorphous alloy transformer immediately and check whether the clamping force of the iron core has failed.

3. Avoid unnecessary disassembly: SH15 160 kva amorphous alloy transformers should not undergo routine disassembly inspections. If disassembly is necessary, it must be carried out strictly within the 8 hours (humidity < 65%) or 4 hours (humidity < 75%) exposure time limit for the transformer body, and contact the manufacturer in advance to prevent damage to the core structure.

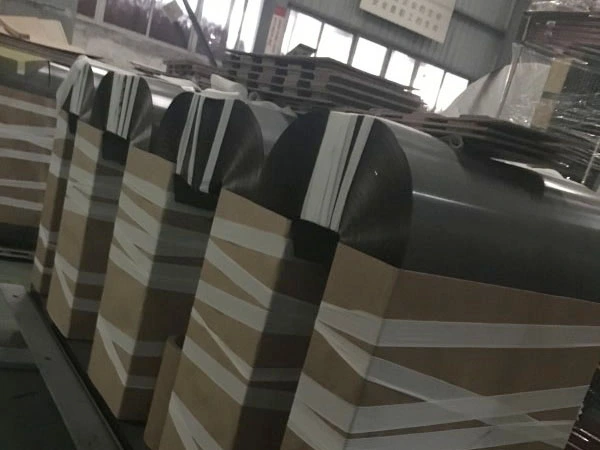

Amorphous Alloy Transformer in Processing

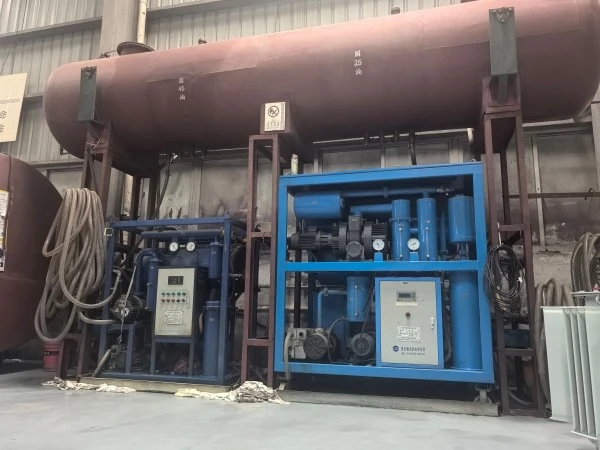

Equipment

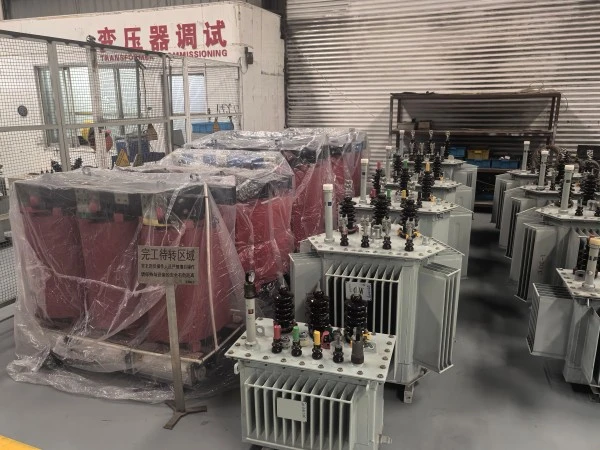

Testing Center
