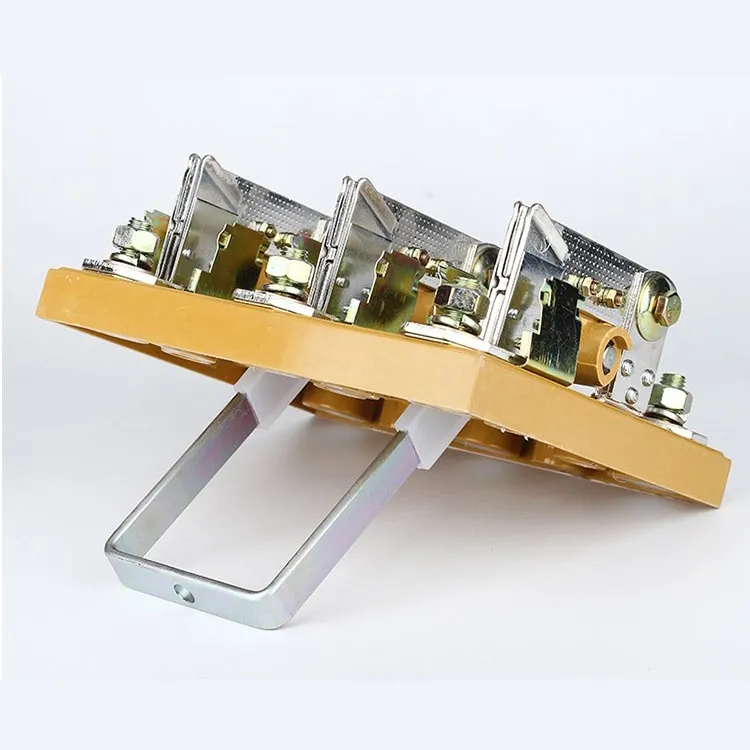

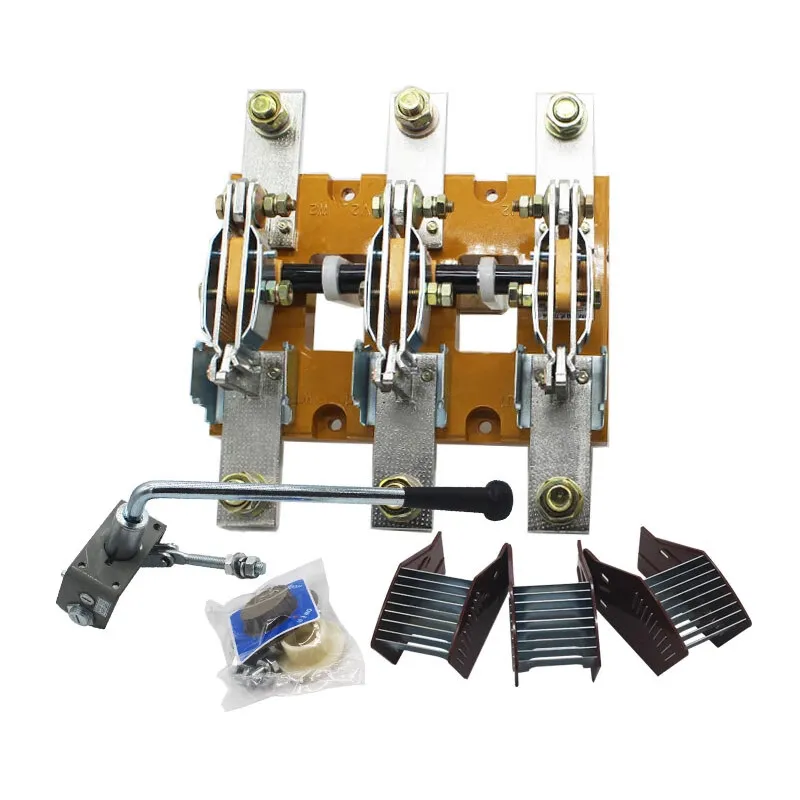

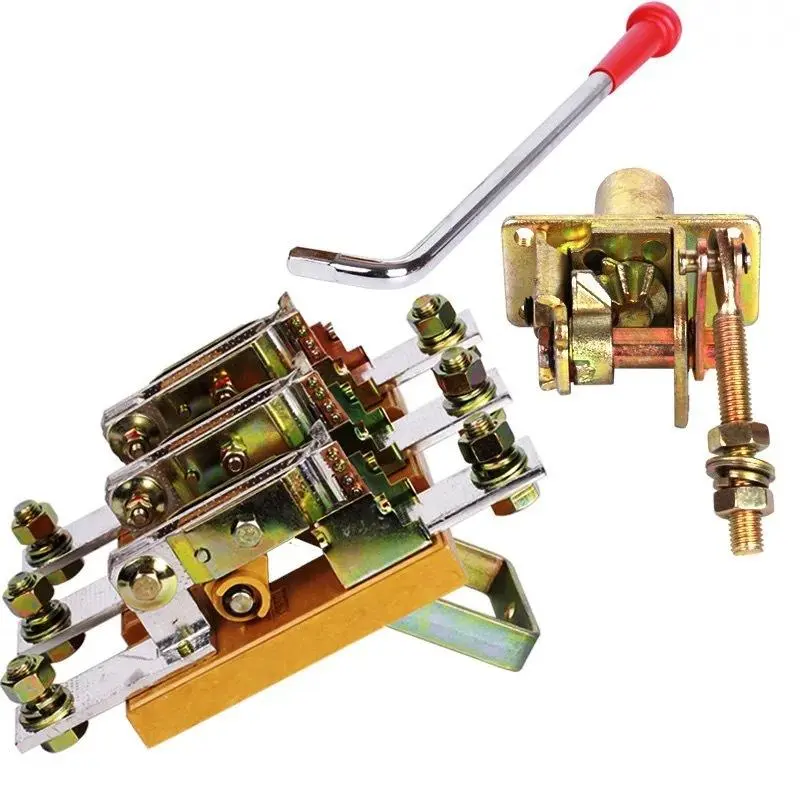

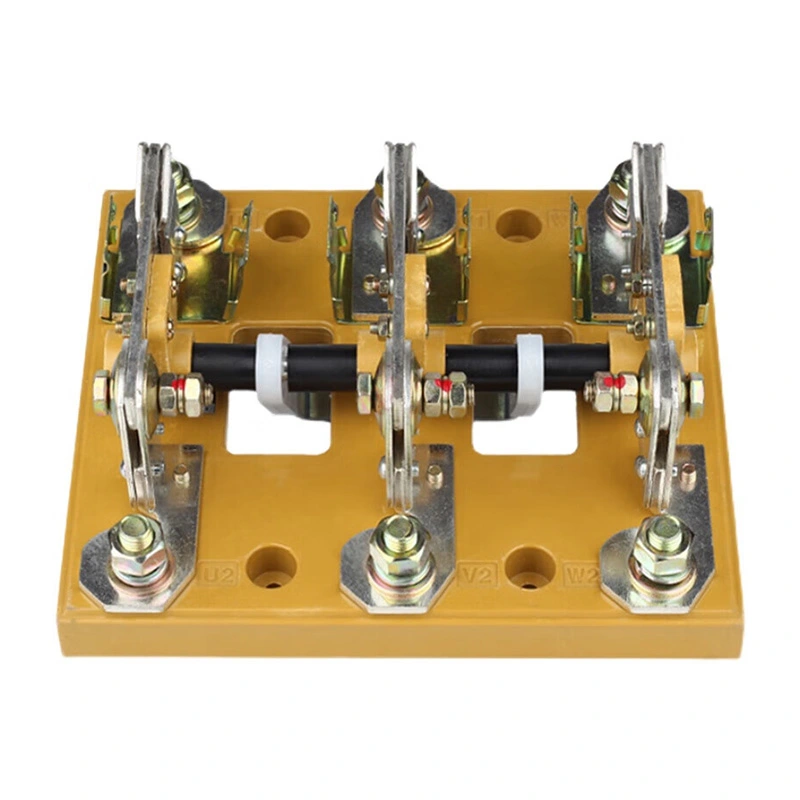

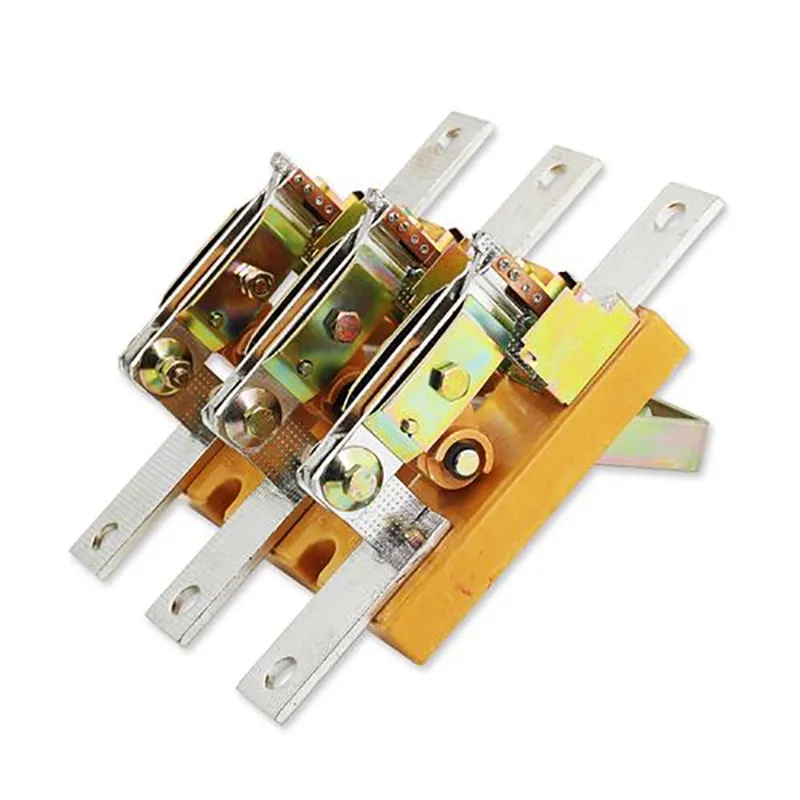

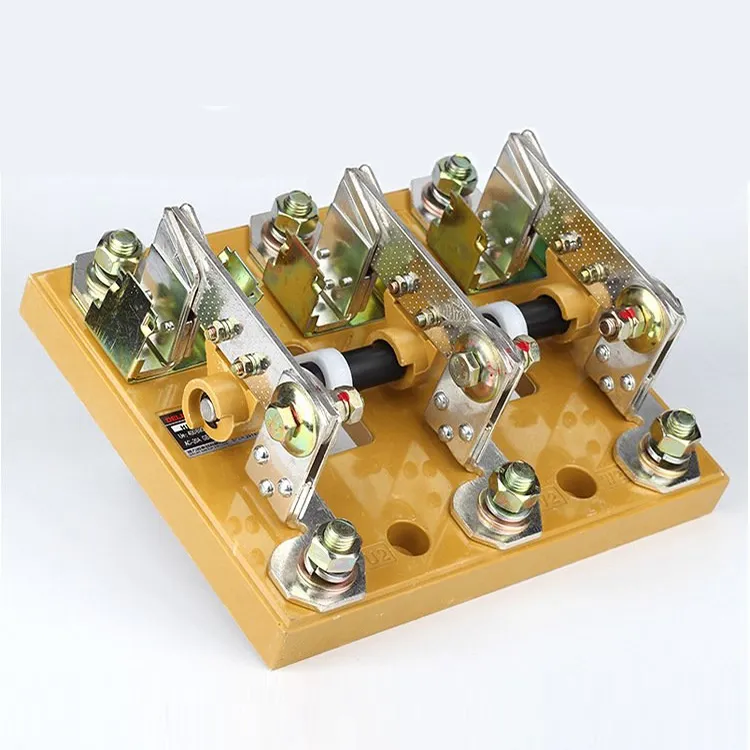

Electrical Cabinet 800 Amp 3 Phase Disconnect Switch

A 800 amp 3 phase disconnect switch is a device primarily used for isolating power sources, performing switching operations, and connecting or disconnecting low current circuits. It does not have arc extinguishing capability. When in the open position, the contacts maintain a specified insulation distance with a clearly visible break; when in the closed position, the switch is capable of carrying normal operating current as well as withstanding abnormal conditions, such as short circuit current, for a defined period of time.

In most cases, 800 amp 3 phase disconnect switch are applied as low voltage isolators, meaning they are rated for voltages below 1 kV. Although their operating principle and construction are relatively simple, they are produced in large quantities, and their reliability is critical. As a result, they play an important role in the design, construction, and safe operation of substations and power plants.

The defining characteristic of a 800 amp 3 phase disconnect switch is that it cannot interrupt load current; it may only be opened or closed when the circuit is free of current. Typical references to 800 amp 3 phase disconnect switch cover their functions, features, classifications, applications, anti-misoperation improvements, maintenance practices, and common issues.

Production Parameter:

Production FAQ:

Q: How do I choose between different handle types (rotary vs. lever)?

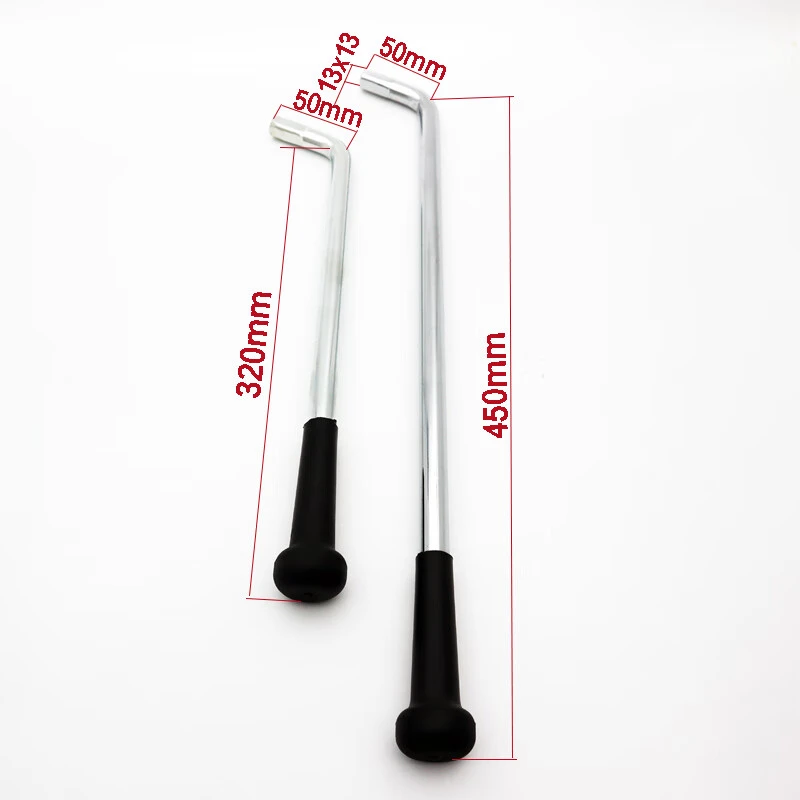

A: Rotary handles: Compact, often used in motor control centers or tight spaces.

Lever handles: Larger and more visible, preferred when clear indication of ON/OFF is needed.

The choice depends on space, safety visibility, and operator preference.

Q: Can a 800 amp 3 phase disconnect switch be mounted in any orientation?

A: Generally, a 800 amp 3 phase disconnect switch should be mounted vertically to meet safety and code requirements. Some designs allow flexibility, but always follow the manufacturer’s instructions and local electrical codes.

Q: Does a 800 amp 3 phase disconnect switch support lockout/tagout (LOTO) procedures?

A: Yes, includes 800 amp 3 phase disconnect switch, most models are equipped with padlockable handles to ensure compliance with OSHA lockout/tagout safety requirements. This allows technicians to safely service equipment without risk of accidental reenergization.
