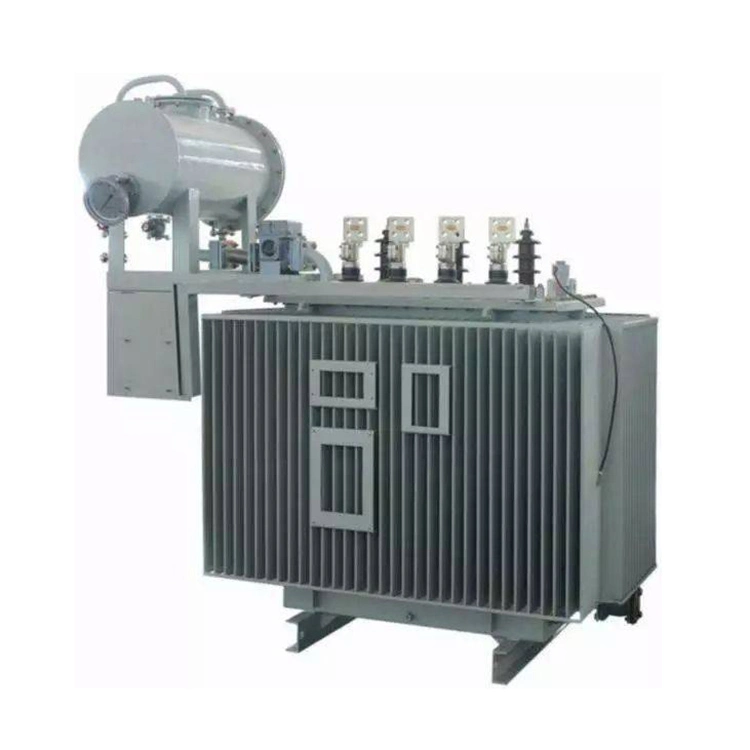

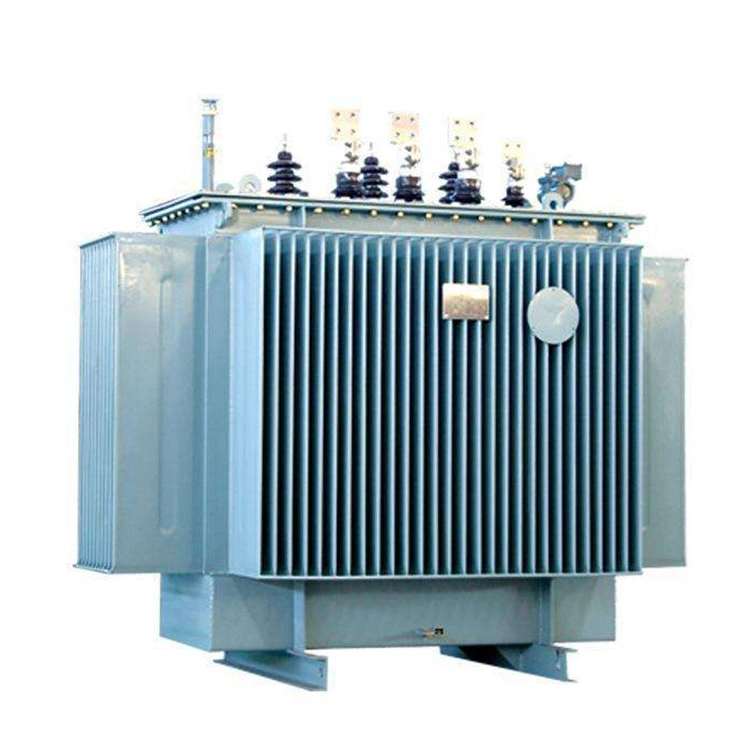

800kva 10kv Step Up Oil Filled Power Transformer

800kva 10kv step up oil filled power transformers are widely used in electrical power systems for voltage transformation and power distribution. By utilizing the principle of electromagnetic induction, they step voltage levels up or down to meet the requirements of different power networks and end users. Owing to their reliable insulation and cooling performance,800kva 10kv step up oil filled power transformers are commonly installed in substations, industrial facilities, commercial developments, and agricultural power systems.

1. Operating Principle and Main Components

The primary components of a 800kva 10kv step up oil filled power transformer are the magnetic core, windings, insulating oil, and tank assembly.

The core is generally manufactured from high quality grain oriented silicon steel laminations or wound core structures to minimize hysteresis and eddy current losses. The windings, which may be made of copper or aluminum conductors depending on the design requirements, consist of high voltage and low voltage coils arranged to achieve the required transformation ratio.

The transformer tank is filled with insulating mineral oil, which serves two essential functions. First, it provides electrical insulation between energized parts and grounded components. Second, it acts as a cooling medium by carrying heat away from the windings and core through natural oil circulation. In standard ONAN cooling systems, heat is transferred from the oil to the tank walls and then dissipated into the surrounding air.

The enclosure is designed to provide protection against accidental contact with live parts and the ingress of foreign objects,which ensures safe and reliable operation under normal service conditions.

2. Performance Characteristics and Typical Applications

800kva 10kv step up oil filled power transformers are available in a wide range of ratings, from small distribution units to large power transformers used in transmission networks. Common distribution transformer ratings range from 100 kVA to2500 kVA, with typical voltage combinations such as 10 kV/0.4 kV, 11 kV/0.415 kV.

Key electrical parameters generally include: Rated power capacity,Primary and secondary voltage ratings,Impedance voltage, no load loss, load loss, frequency.

800kva 10kv oil filled power transformers are designed to operate reliably in ambient temperatures ranging from approximately -25°C to +40°C, to make them suitable for diverse climatic conditions. Their three phase configuration is widely adopted in industrial and utility power systems, while compliance with applicable electromagnetic compatibility standards helps minimize interference with nearby equipment.

3. Advantages and Safety Features

One of the major advantages of 800kva 10kv step up oil filled power transformers is their excellent insulation and cooling capability. Transformer oil possesses a much higher dielectric strength than air,which allows compact designs while maintaining adequate electrical clearances. At the same time, the oil effectively absorbs and transfers heat generated during operation,which contributes to higher efficiency and longer service life.

The oil also provides a protective barrier against moisture,which reduces the risk of insulation deterioration in humid environments.It makes 800kva 10kv step up oil filled power transformers particularly suitable for outdoor installations and locations exposed to varying weather conditions.

To enhance operational safety,800kva 10kv step up oil filled power transformers are equipped with protective devices such as pressure relief valves. In the event of an internal fault that causes excessive pressure buildup inside the tank, the valve automatically releases pressure to prevent mechanical damage. Depending on the transformer rating and application, additional protection systems may include oil level indicators, temperature monitoring devices, Buchholz relays, and gas detection systems.

Wenzhou XiFa Electrical Power Equipment Co., Ltd. can also customize core configurations, winding materials, and mechanical arrangements to accommodate specific installation constraints or operational requirements.

Technical Specification:
