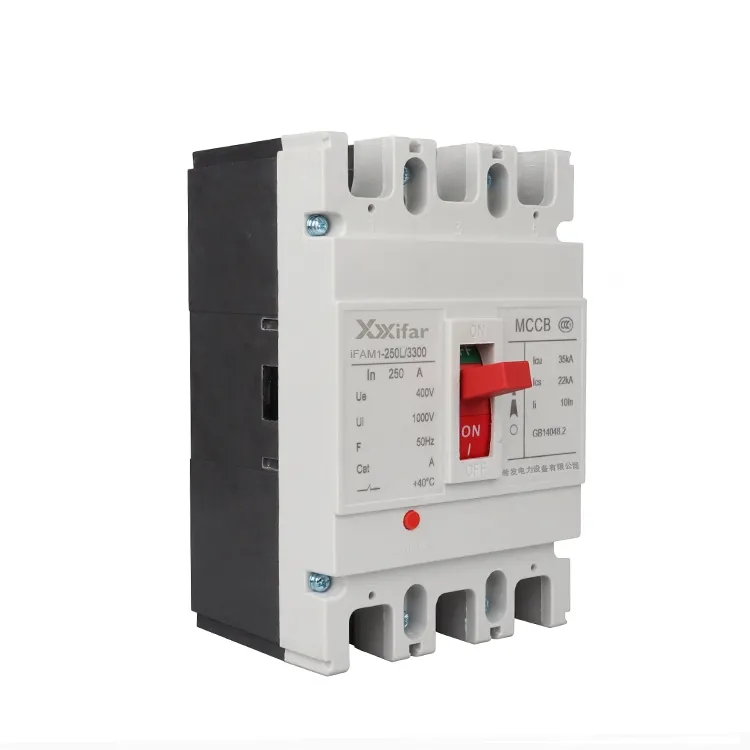

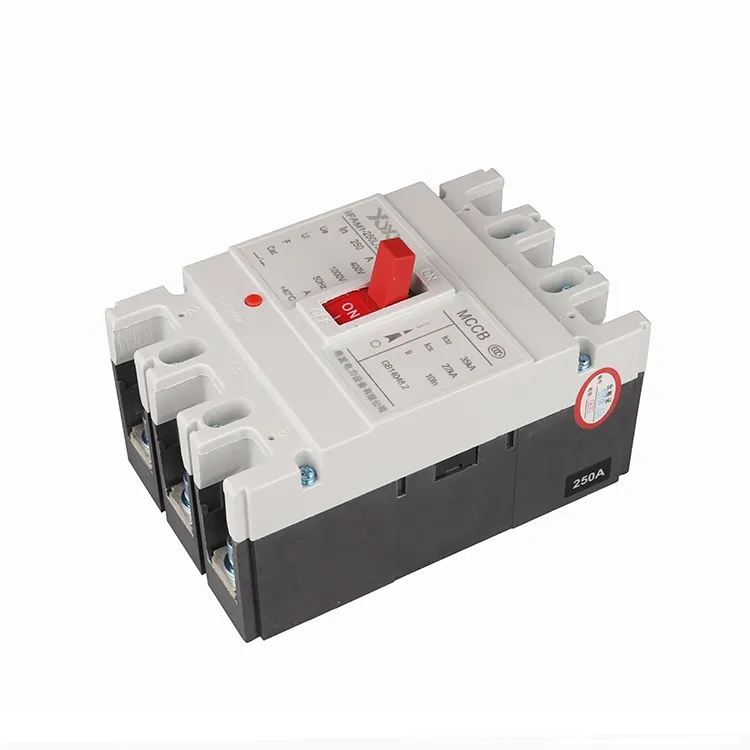

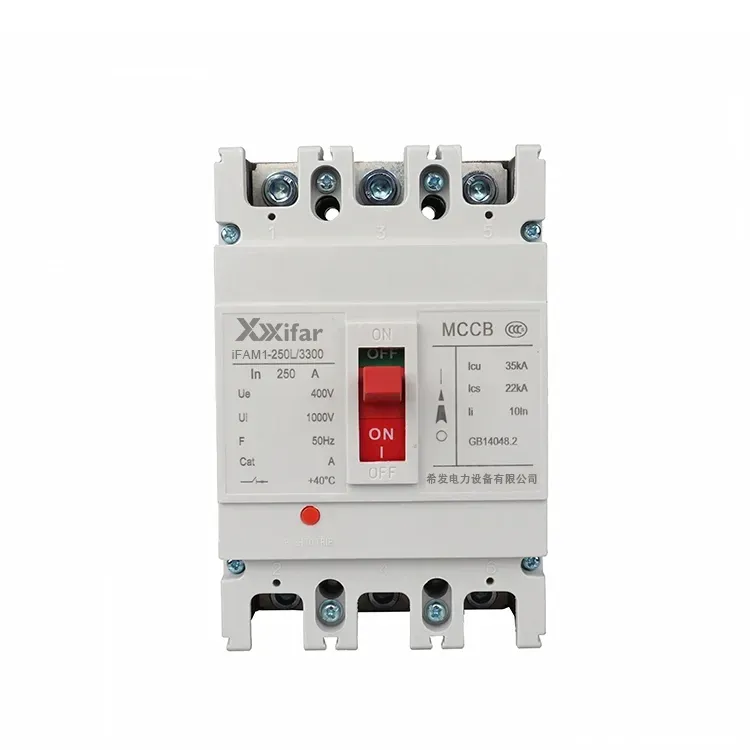

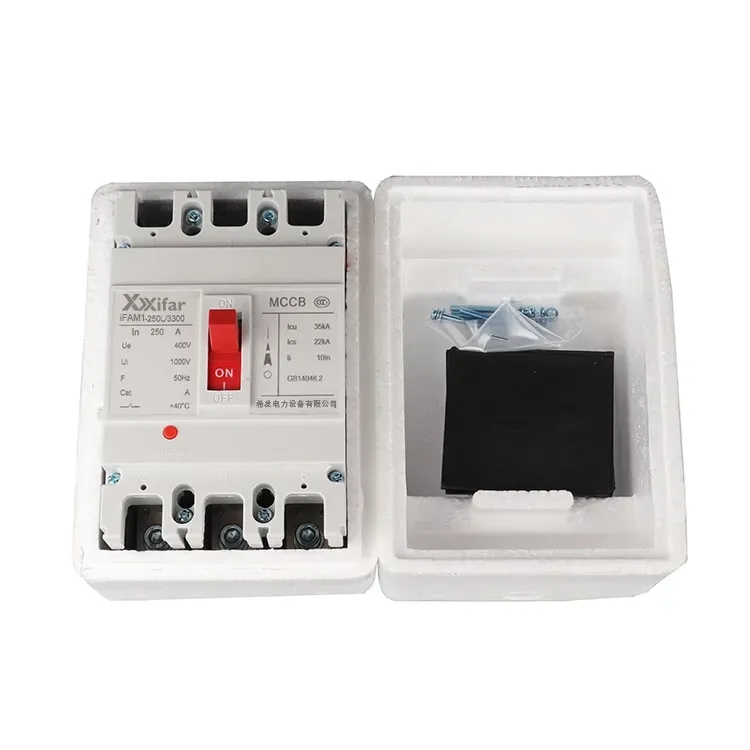

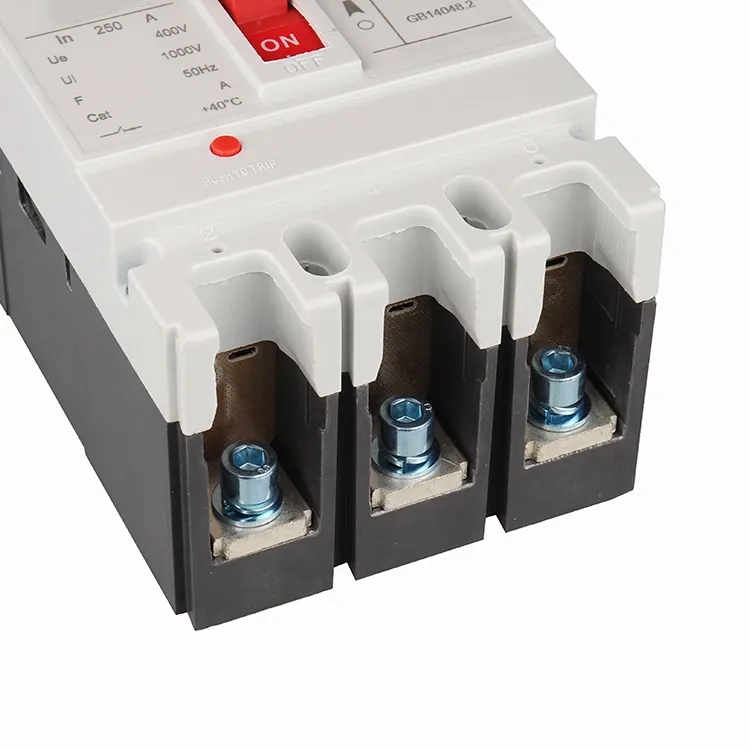

250a 2p Mccb Circuit Breaker Fixed Type

When selecting a mccb circuit breaker MCCB, such as a fixed type 250a 2p mccb circuit breaker, it is important to base the decision on the specific requirements of the application. The following points provide practical guidance for proper selection a MCCB:

1. Determine the rated current of A fixed type 2p mccb circuit breaker

It is the primary parameter. It represents the current the 2p mccb circuit breaker fixed type can carry continuously in working. The selected rating should be equal to or slightly higher than the expected maximum load current of the protected circuit, while also taking ambient temperature into account, as the higher ambient temperature the lower current carrying capacity.

2. Check the breaking capacity of a fixed type 250a 2p mccb circuit breaker

The breaking capacity of a 250a 2p mccb circuit breaker fixed type must be greater than or at least equal to the prospective short circuit current at the installation point. This value is typically estimated based on factors such as transformer capacity and system impedance. The goal is to ensure the fixed type 250a 2p mccb circuit breaker can smoothly interrupt the highest possible fault current.

3. Select the number of poles and wiring configuration to a fixed type 250a mccb circuit breaker

Choose the appropriate number of poles, such as two pole, three pole, or four pole. It depends on whether the system is single phase, three phase three wire, or three phase four wire. It is also necessary to confirm whether the intended line connection matches the product design.

4. Define the trip unit and protection characteristics to a 250A moulded case circuit breaker

Select either a thermal magnetic or an electronic trip unit to a 250a 2p mccb circuit breaker fixed type based on the type of load. For example, motor circuits may require trip characteristics that can withstand high inrush currents during startup. The trip curve, such as B, C, or D type should be matched to the load profile.

5. Consider utilization category and installation conditions

The utilization category, such as category A or B, affects selectivity to a 250a 2p mccb moulded case circuit breaker under short circuit conditions. Environmental factors, including temperature, humidity, altitude, and mounting orientation, can impact the performance of a fixed type 250a 2p mccb moulded case circuit breaker and should be verified against the  specifications from manufacturer.

6. Evaluate accessories and auxiliary functions

Depending on monitoring and control needs, additional components such as shunt trip units, undervoltage releases, auxiliary contacts, and alarm contacts can be selected on a 250a 2p mccb moulded case circuit breaker. These accessories could expand functions for a MCCB, such as remote tripping, status indication, and system integration.

250a 2p mccb circuit breaker fixed type parameter:
