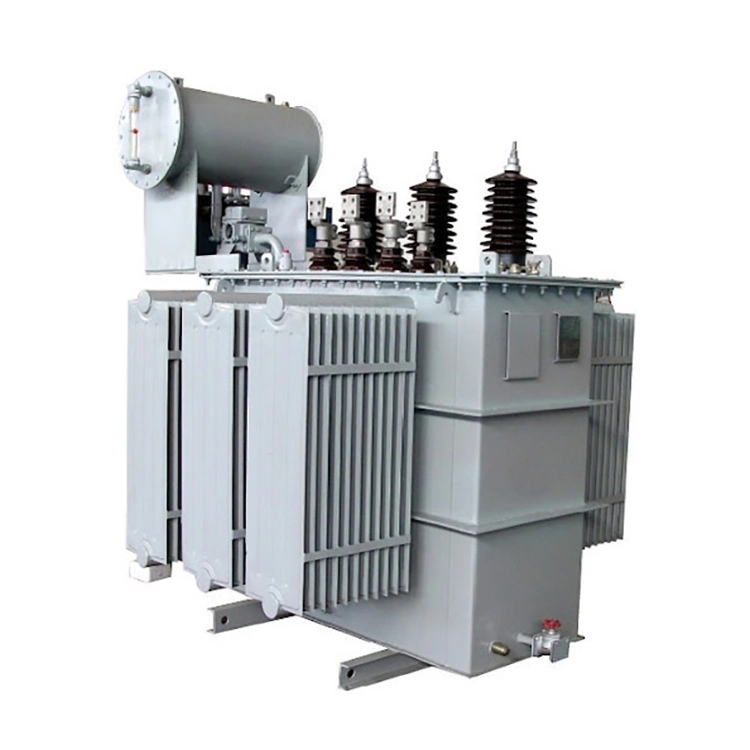

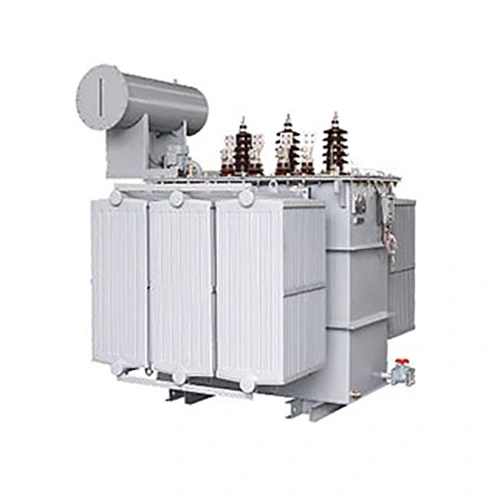

2500 Kva 35 0.4kv Oil Immersed Alloy Core Distribution Transformer

Amorphous Alloy Transformers vs Conventional Transformers:

The main difference between a 2500 kva 35 0.4kv oil immersed alloy core distribution transformer and a conventional 2500 kva 35 0.4kv oil immersed transformer lies in the core material. Amorphous alloy transformers use an advanced amorphous metal core that offers higher magnetic permeability and significantly lower core losses. As a result, they deliver much higher energy efficiency and can reduce no load losses by approximately 60 percent to 80 percent compared with traditional silicon steel transformers. Although the initial investment is higher, they often provide greater long term economic benefits. The detailed information is showed as the below:

1. Different Core Materials

Amorphous Alloy Transformers:2500 kva 35 0.4kv oil immersed alloy core transformers use an amorphous alloy core made from special metal ribbons. The atomic structure of this material is irregular, which allows magnetic flux to pass through the core more easily. This characteristic greatly reduces energy losses during magnetization and demagnetization.

Conventional Transformers: Traditional 2500 kva 35 0.4kv oil immersed transformers use silicon steel laminations as the core material. Silicon steel has been widely used for decades because of its mature manufacturing process and ease of fabrication. However, its magnetic performance is generally lower than that of amorphous alloy materials.

2. Significant Energy Savings

Lower No Load Losses: One of the most important advantages of 2500 kva 35 0.4kv amorphous alloy transformers is their exceptionally low no load loss. Compared with conventional transformers of the same capacity, no load losses can be reduced by as much as 60 percent to 80 percent. In addition, no load current can be reduced by around 85 percent, resulting in substantial energy savings.

Improved Reliability: Because energy losses and operating temperatures are lower, insulation systems experience less thermal stress and age more slowly. This contributes to a longer service life and more reliable operation.2500 kva 35 0.4kv oil immersed amorphous alloy transformers also demonstrate better tolerance to power quality disturbances and waveform distortion.

3. Cost and Return on Investment

Higher Initial Investment: The purchase price of a 2500 kva 35 0.4kv oil immersed amorphous alloy transformer is generally higher than that of a 2500 kva 35 0.4kv conventional transformer. This is mainly due to the higher cost of the core material and the more demanding manufacturing process.

Faster Long Term Payback: Although the initial cost is greater, the reduction in energy consumption can quickly offset the additional investment. In many applications, the extra cost can be recovered within two to four years through electricity savings. After the payback period, the lower operating cost continues to generate financial benefits.

Best Applications: Amorphous alloy transformers are particularly suitable for power distribution systems that operate at low load levels for extended periods. Typical applications include rural power networks, public infrastructure, residential communities, and utility distribution systems where no load losses represent a significant portion of total energy consumption.

Technical Specification:

Product Features:

1. Efficient Cooling Performance

125kva 35kv 400v oil immersed transformers use insulating oil as the primary cooling medium in modern electricity system. As the oil circulates naturally within the transformer, it transfers heat away from the windings and core,which allows excess thermal energy to dissipate effectively. This efficient cooling process helps maintain stable operating temperatures during continuous service and contributes to a longer equipment lifespan, compare with dry type transformers.

2. Excellent Insulation Capability

In addition to its cooling function, insulating oil provides a high level of electrical insulation.In a 125kva 35kv 400v oil immersed transformers, it creates a reliable barrier between high voltage and low voltage components,which reduces the risk of electrical faults, flash overs, and short circuits. The oil also helps distribute electrical stress more evenly with in oil immersed transformer to protect internal insulation systems and to improve overall operational safety.

3. Compact and Robust Construction

The design of a 125kva 35kv 400v oil immersed transformer allows key components to be integrated into a relatively compact structure,which helps to reduce installation space requirements. The sealed steel tank protects the internal assembly from moisture, dust, and other environmental influences to ensure dependable performance under a wide range of operating conditions.

4. Easy Maintenance and Serviceability

Maintenance procedures are generally straightforward due to the practical tank design. When inspection, servicing, or component replacement is required, technicians can access the internal parts through the tank opening. The presence of insulating oil also helps preserve internal components by minimizing contamination and simplifying routine maintenance activities.

5. Energy Efficiency and Environmental Benefits

125kva 35kv 400v oil immersed transformers are designed to operate with low energy losses,which helps users to reduce power consumption and operating costs. Optimized oil circulation and heat dissipation contribute to quieter operation by minimizing noise and vibration levels. As a result,125kva 35kv 400v oil immersed transformers provide an efficient and environmentally responsible solution for modern power distribution systems.

Technical Specification:

Market Prospects for Oil Immersed Transformers:

According to the latest report from Global Market Insights Inc., the global oil immersed power transformer market is expected to reach USD 25.1 billion by 2034. Compared with USD 14.1 billion in 2024 and an estimated USD 15.1 billion in 2025, the market is projected to grow at a compound annual growth rate of 5.8 percent. The steady growth of the oil immersed transformer market is mainly driven by three factors:

1. Grid Modernization Projects

Many countries are upgrading and expanding their power networks, creating strong demand for new transformers. In 2023, the United States Department of Energy allocated USD 18 million to support the development of more durable and energy efficient oil immersed transformers.

2. Rapid Growth of Renewable Energy

The expansion of wind and solar power is accelerating transformer demand worldwide. Meanwhile,Europe plans to invest USD 555.5 billion in grid upgrades by 2040 to support the integration of offshore wind projects. Ever More, the Asia Pacific region also offers significant growth potential. By 2030, renewable energy is expected to account for around 25 percent of global power generation capacity.

3. Rising Electricity Consumption

Global electricity demand continues to increase as economies grow and industries expand.

In China, electricity consumption exceeded one trillion kilowatt hours in a single month for the first time, roughly equivalent to Japan's annual power consumption. In April 2024, Brazil signed contracts worth USD 4.06 billion for new transmission lines and substations. Across Africa, electricity demand is growing by about 4 percent annually, driven by industrial development and cross border grid connections.

These trends are creating long term opportunities for oil immersed transformers and supporting sustained market growth worldwide.
