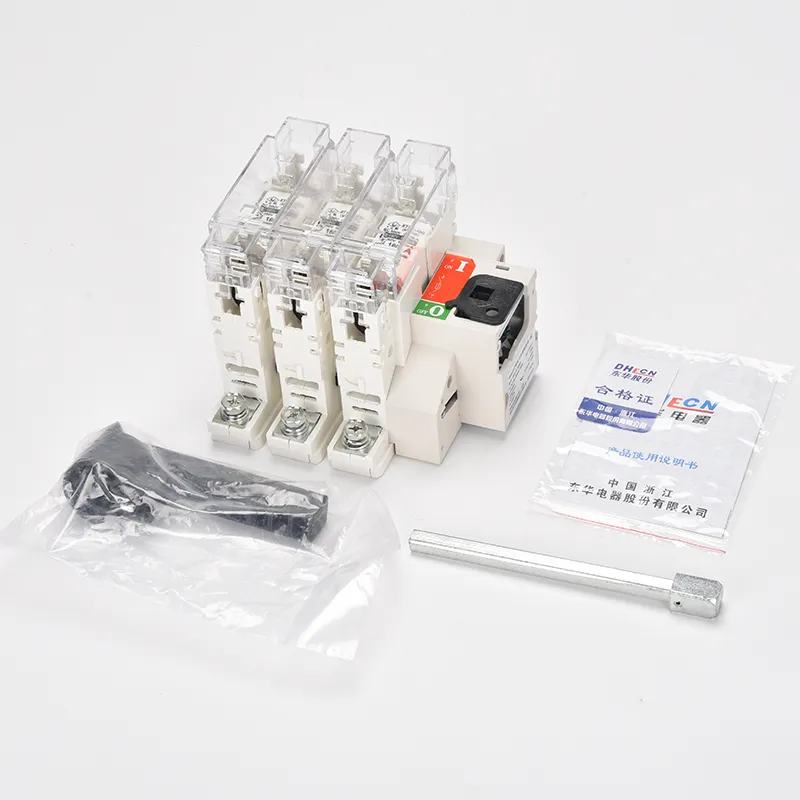

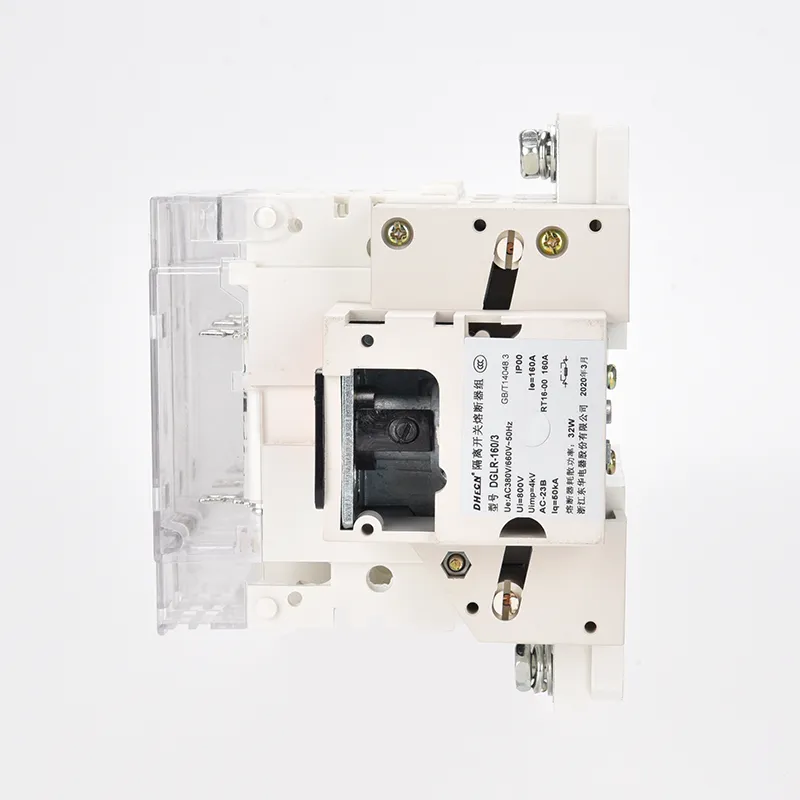

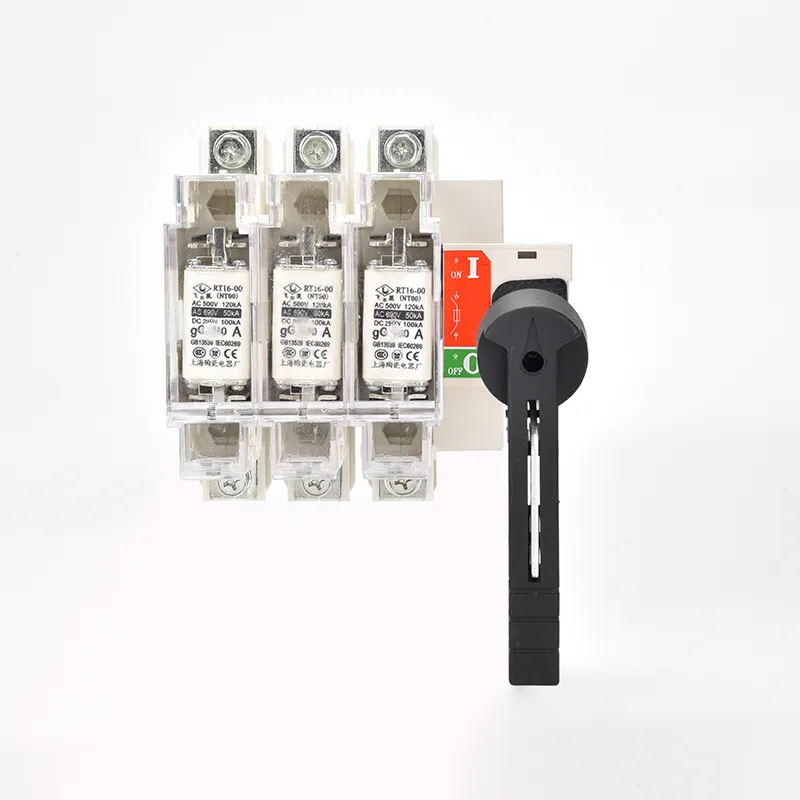

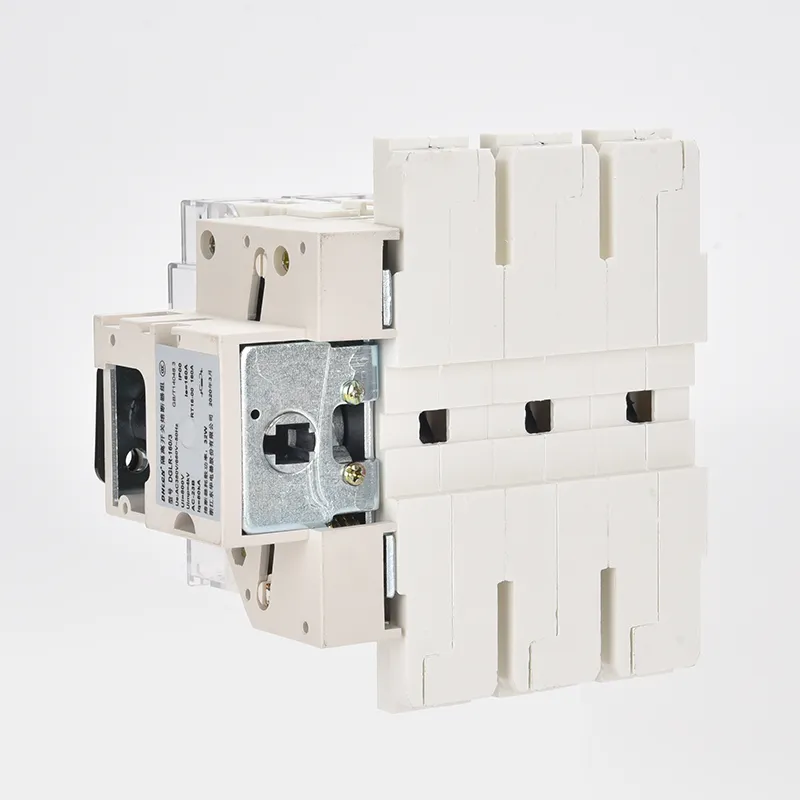

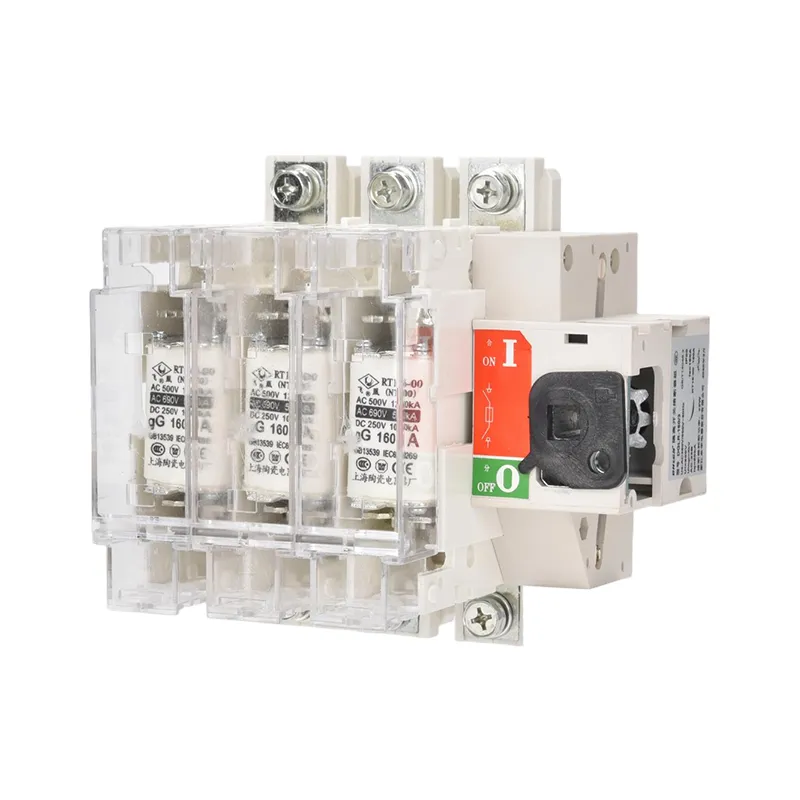

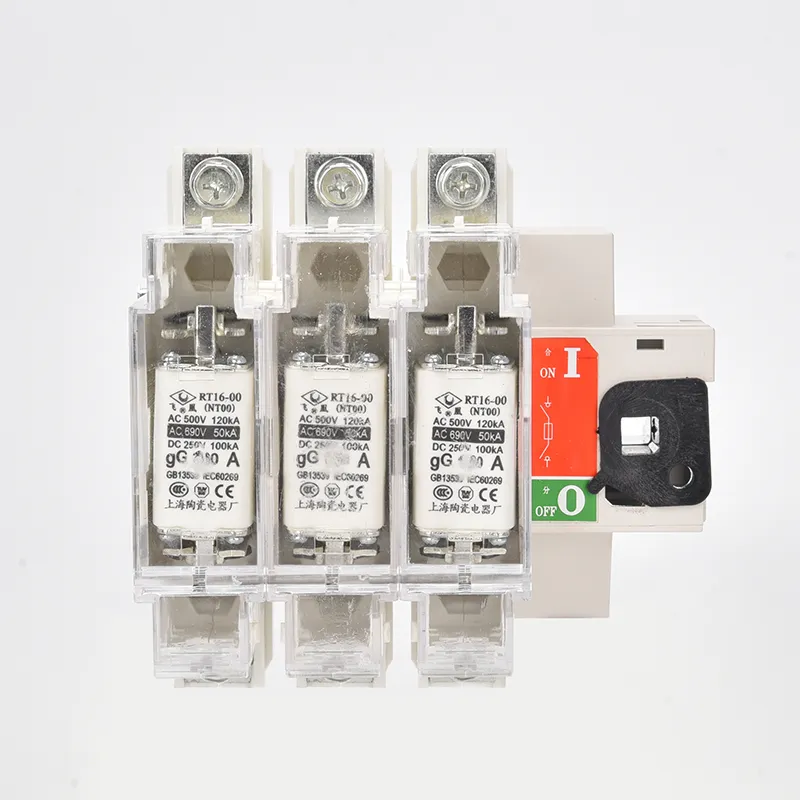

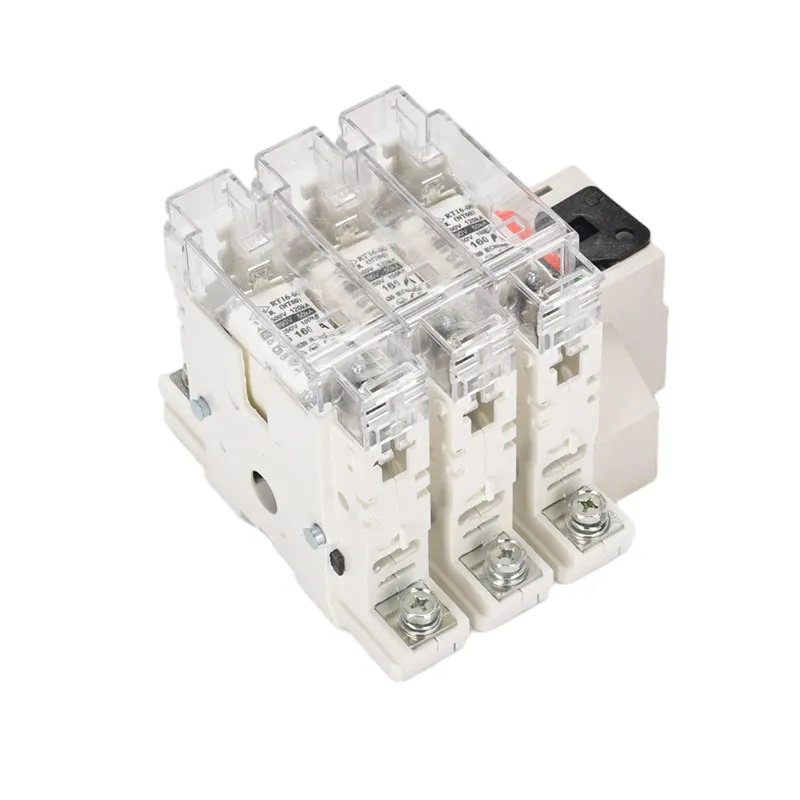

100a Triple Pole 3 Phase Fused Isolator Switch

To bring a smooth user experience, Wenzhou XiFa Electric Power Equipment Co., Ltd not only use premium raw material on each 100a triple pole 3 phase fused isolator switch such as to adopts flame retardant engineering plastics on hosing to make a better performance on mechanical strength and insulation protection, but also undergo necessary factory tests for each 100a triple pole 3 phase fused isolator switch such as insulation resistance measurement to confirm dielectric performance and operation consistency and interlock test to verify safe and reliable mechanism performance.

Send Inquiry

Product Description

Functions of a 100a triple pole 3 phase fused isolator switch

1.Power Isolation: When electrical wiring requires inspection or maintenance, the 100a triple pole 3 phase fused isolator switch disconnects the power supply to ensure worker safety.

2.Power Control: It allows switching the circuit on or off, maintaining normal and reliable system operation.

3.Fault Interruption: In the event of a short circuit or overload, the fuse element melts, cutting off the current and protecting motors and other connected equipment from electrical damage.

4.Circuit and Equipment Protection: By safeguarding against abnormal conditions, the switch helps maintain circuit stability and prolongs the service life of cables and equipment.

Features of a 100a triple pole 3 phase fused isolator switch

1.Integrated Design: Combines the functions of a fuse and an isolator in one device, delivering high reliability.

2.Compact Construction: Small in size, easy to install, and space saving.

3.Easy Fuse Replacement: The switch and fuse are separate components, making fuse replacement quick and convenient.

4.Wide Applicability: Suitable for use across various low voltage circuits.

100a Triple Pole 3 Phase Fused Isolator Switch

Product Parameter:

Frame Current A	Rated Current of Fuse (A)	Mode of Fuse
63	10、20、30、40、50、63	00C
160	63、80、100、125、160	0
250	160	0
250	200、250	1
400	300、315、400	2
630	400、500、630	3

the Front Type

Type	Size of Fuse	Frame Size and Installation Size
GLR-63～400A		A	B	D	E	F	H	H1	I	J	K	L	M	P	R	T	φX	Y
63A/3	0～00C	152	118	20～30	117				159	145	106	5.4	62.5	32
63A/4	0～00C	184	118	20～30	117				159	145	106	5.4	62.5	32
160A/3	0～00	164	162	28～30	126	44	108	53	141	189	127	5.4	65	36	20	2.5	8.5	19.5
160A/4	0～00	200	162	28～30	126	44	144	53	141	189	127	5.4	65	36	20	2.5	8.5	19.5
250/3	1	236	195	28～30	146	65	180	75	185	251	162	6.4	90.5	60	32	2.5	11	19.5
250/4	1	296	195	28～30	146	65	240	75	185	251	162	6.4	90.5	60	32	2.5	11	19.5
400/3	2	278	205	28～30	149	65	192	75	200	260	172	6.4	121	66	50	3	11	20
400/4	2	344	205	28～30	149	65	258	75	200	260	172	6.4	121	66	50	3	11	20

Type	Size of Fuse	Frame Size and Installation Size
GLR-400～630A		A	A1	B	B1	C	E	H	H1	H2	J	J2	J1	K	M	N	P	R	S	S1	T	V	U	W	φL	Y
400A/3	2	414	285	238	115	307	221	190	71	79	210	70	65	180	32.5	162	65	32	35	43	5	40.5	208	39.5	7	69
400A/4	2	474	345	238	115	307	221	255	71	79	210	70	65	180	32.5	162	65	32	35	43	5	24.5	208	39.5	7	69
630A/3	3	470	345	300	150	348	268	235	85	85	250	100	76	250	38.5	162	80	50	50	50	7	45.5	260	44.5	9	72
630A/4	3	550	425	300	150	348	268	315	85	85	250	100	76	250	38.5	162	80	50	50	50	7	34.5	260	445	9	72

the Aside Type

Type	Size of Fuse	Frame Size and Installation Size
GLR-63～400A		A	B	C	E	F	H	H1	I	J	K	L	M	P	R	T	φX	Y
63A/3	0～00C	133	118	134	126.5		116.5		159	145	106	5.4	36	32
63A/4	0～00C	164	118	117	126.5		116.5		159	145	106	5.4	36	32
160A/3	0～00	150	162	173	126.5	44	108	53	141	189	127	5.4	38	36	20	2.5	8.5	19.5
160A/4	0～00	186	162	173	126.5	44	144	53	141	189	127	5.4	38	36	20	2.5	8.5	19.5
250/3	1	253	195	173	146	65	180	75	185	251	162	6.4	81	60	32	2.5	11	19.5
250/4	1	313	195	173	146	65	240	75	185	251	162	6.4	81	60	32	2.5	11	19.5
400/3	2	271	205	173	149	65	192	75	200	260	172	6.4	86	66	50	3	11	20
400/4	2	337	205	173	149	65	250	75	200	260	172	6.4	86	66	50	3	11	20

Type	Size of Fuse	Frame Size and Installation Size
GLR-400～630A		A	A1	B	B1	E	H	H1	H2	J	J2	J1	K	M	N	P	R	S	S1	T	V	U	W	φL	Y
400A/3	2	500	285	238	115	221	190	70	79	210	70	65	180	32.5	119	65	32	30	43	5	40.5	208	39.5	7	69
400A/4	2	560	345	238	115	221	255	70	79	210	70	65	180	32.5	119	65	32	30	43	5	24.5	208	39.5	7	69
630A/3	3	550	345	300	150	268	235	100	85	250	100	76	250	38.5	119	80	50	50	50	7	45.5	260	44.5	9	72
630A/4	3	630	425	300	150	268	315	100	85	250	100	76	250	38.5	119	80	50	50	50	7	34.5	260	445	9	72

100a Triple Pole 3 Phase Fused Isolator Switch

Product FAQ:

Q: What type of fuses are used in the 100a triple pole 3 phase fused isolator switch?

A: High breaking capacity (HBC) fuse links, typically rated for low-voltage applications, are used. These fuses are designed to interrupt fault currents quickly and reliably, ensuring protection for downstream equipment.

Q: What are the main materials used in the construction of a 100a triple pole 3 phase fused isolator switch?

A: The housing is usually made of flame retardant thermoplastic or sheet steel, the contacts are copper or silver-plated copper for better conductivity, and the fuse bodies are made of ceramic or reinforced composite insulation. The operating handle is often metal with a protective plastic cover.

Q: Is the 100a triple pole 3 phase fused isolator switch suitable for outdoor installation?

A: Yes, but it must be installed in an enclosure with an appropriate IP rating (such as IP65 or higher) to withstand dust, moisture, and outdoor conditions.
