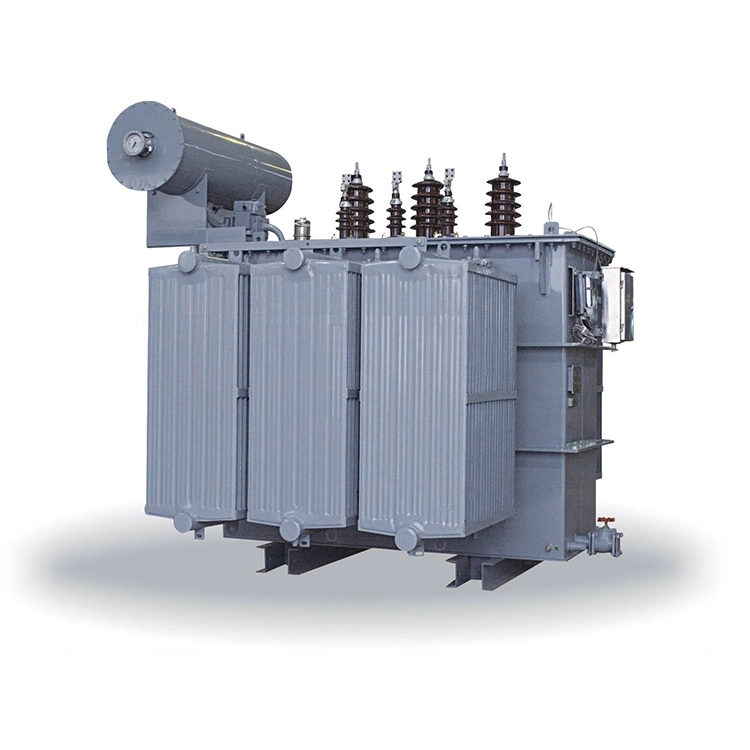

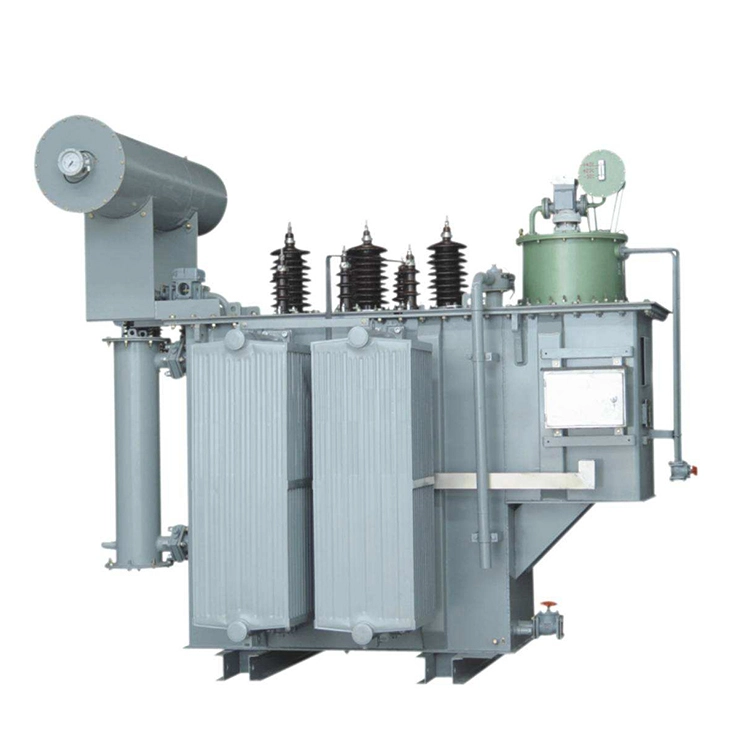

5mva Hermitically Oil Type Power Transformer

In a wide range of industrial and power distribution applications,5 mva hermitically oil type power transformers play a vital role in electricity transmission. Their technical characteristics have a direct impact on the stability and efficiency of electrical systems. As an essential component of power infrastructure,5mva hermitically oil type power transformers are designed to perform effectively under demanding operating conditions.

One of the defining features of a 5mva hermitically oil immersed power transformer is the use of insulating oil for both cooling and insulation purposes. This design helps maintain appropriate operating temperatures during continuous service. The insulating oil efficiently transfers heat away from internal components while also providing enhanced electrical insulation between the windings and the core. For facilities that require a dependable and uninterrupted power supply, a well designed 5mva hermitically oil immersed power transformer serves as a fundamental element of the electrical network.

From a technical perspective,5 mva hermitically oil type power transformers incorporate several important design features. The core is typically manufactured from high quality silicon steel laminations, contributing to reduced no load losses and improved operating efficiency. The windings are produced from highly conductive materials and processed through carefully controlled manufacturing procedures,which enables the 5mva hermitically oil type power transformer to maintain stable voltage performance under varying load conditions. In addition, the tank structure is engineered to provide effective sealing and heat dissipation,which creates a secure and consistent operating environment for the internal components throughout the service life of the transformer.

Technical Specification:

Storage Conditions of An Oil Immersed Transformer

The length of storage is not the only factor that affects an oil immersed transformer's condition. Proper maintenance plays an equally important role. When stored and maintained correctly, an oil immersed transformer can remain in standby service for five to eight years.

A clean, dry, and well ventilated indoor location is the preferred storage environment. Relative humidity should remain below 70 percent, while the ambient temperature should be kept within the recommended range. If outdoor storage is unavoidable, the5mva hermitically oil type power transformer should be protected from rain and moisture, and positioned on a raised foundation to prevent contact with standing water. For oil immersed transformers, oil levels should be checked regularly.

To Store a 5mva hermitically oil type power transformer well, it also has three essential maintenance practices:

1. Regular Inspection

Carry out a visual inspection at least once every three months to check for corrosion, structural damage, or signs of animal activity.

2. Performance Testing

For transformers stored longer than six months, winding resistance should be measured. Insulation resistance testing should be performed annually to verify the condition of the insulation system.

3. Protective Maintenance

Replace sealing components every two years. The silica gel in the breather should be serviced when more than 70 percent of the material has changed color,which ensures continued moisture protection.

Product Features:

1. Efficient Cooling Performance

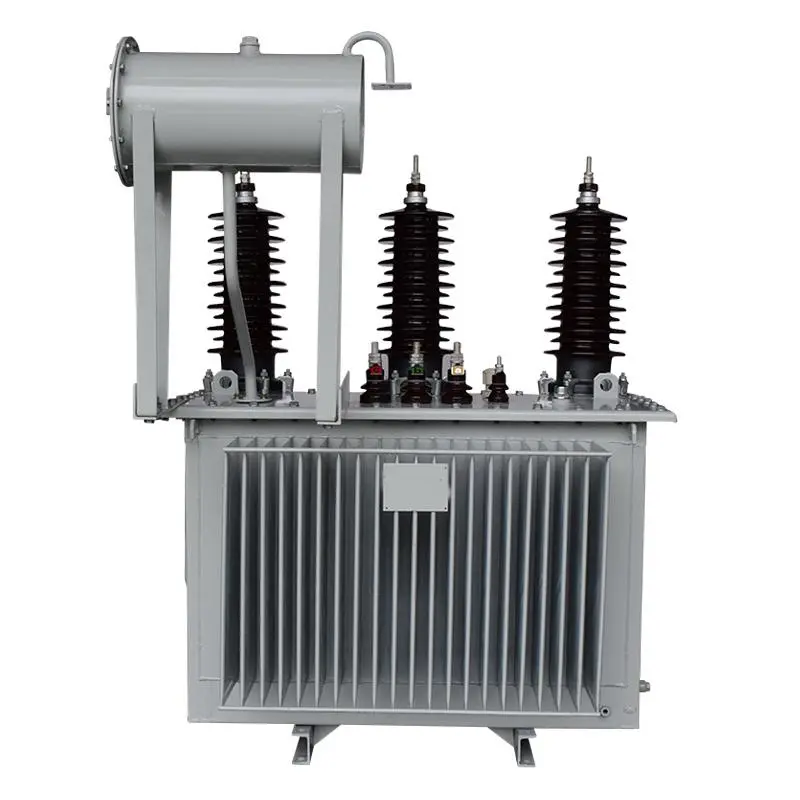

125kva 35kv 400v oil immersed transformers use insulating oil as the primary cooling medium in modern electricity system. As the oil circulates naturally within the transformer, it transfers heat away from the windings and core,which allows excess thermal energy to dissipate effectively. This efficient cooling process helps maintain stable operating temperatures during continuous service and contributes to a longer equipment lifespan, compare with dry type transformers.

2. Excellent Insulation Capability

In addition to its cooling function, insulating oil provides a high level of electrical insulation.In a 125kva 35kv 400v oil immersed transformers, it creates a reliable barrier between high voltage and low voltage components,which reduces the risk of electrical faults, flash overs, and short circuits. The oil also helps distribute electrical stress more evenly within oil immersed transformer to protect internal insulation systems and to improve overall operational safety.

3. Compact and Robust Construction

The design of a 125kva 35kv 400v oil immersed transformer allows key components to be integrated into a relatively compact structure,which helps to reduce installation space requirements. The sealed steel tank protects the internal assembly from moisture, dust, and other environmental influences to ensure dependable performance under a wide range of operating conditions.

4. Easy Maintenance and Serviceability

Maintenance procedures are generally straightforward due to the practical tank design. When inspection, servicing, or component replacement is required, technicians can access the internal parts through the tank opening. The presence of insulating oil also helps preserve internal components by minimizing contamination and simplifying routine maintenance activities.

5. Energy Efficiency and Environmental Benefits

125kva 35kv 400v oil immersed transformers are designed to operate with low energy losses,which helps users to reduce power consumption and operating costs. Optimized oil circulation and heat dissipation contribute to quieter operation by minimizing noise and vibration levels. As a result,125kva 35kv 400v oil immersed transformers provide an efficient and environmentally responsible solution for modern power distribution systems.

Technical Specification:

Market Prospects for Oil Immersed Transformers:

According to the latest report from Global Market Insights Inc., the global oil immersed power transformer market is expected to reach USD 25.1 billion by 2034. Compared with USD 14.1 billion in 2024 and an estimated USD 15.1 billion in 2025, the market is projected to grow at a compound annual growth rate of 5.8 percent. The steady growth of the oil immersed transformer market is mainly driven by three factors:

1. Grid Modernization Projects

Many countries are upgrading and expanding their power networks, creating strong demand for new transformers. In 2023, the United States Department of Energy allocated USD 18 million to support the development of more durable and energy efficient oil immersed transformers.

2. Rapid Growth of Renewable Energy

The expansion of wind and solar power is accelerating transformer demand worldwide. Meanwhile,Europe plans to invest USD 555.5 billion in grid upgrades by 2040 to support the integration of offshore wind projects. Ever More, the Asia Pacific region also offers significant growth potential. By 2030, renewable energy is expected to account for around 25 percent of global power generation capacity.

3. Rising Electricity Consumption

Global electricity demand continues to increase as economies grow and industries expand.

In China, electricity consumption exceeded one trillion kilowatt hours in a single month for the first time, roughly equivalent to Japan's annual power consumption. In April 2024, Brazil signed contracts worth USD 4.06 billion for new transmission lines and substations. Across Africa, electricity demand is growing by about 4 percent annually, driven by industrial development and cross border grid connections.

These trends are creating long term opportunities for oil immersed transformers and supporting sustained market growth worldwide.
