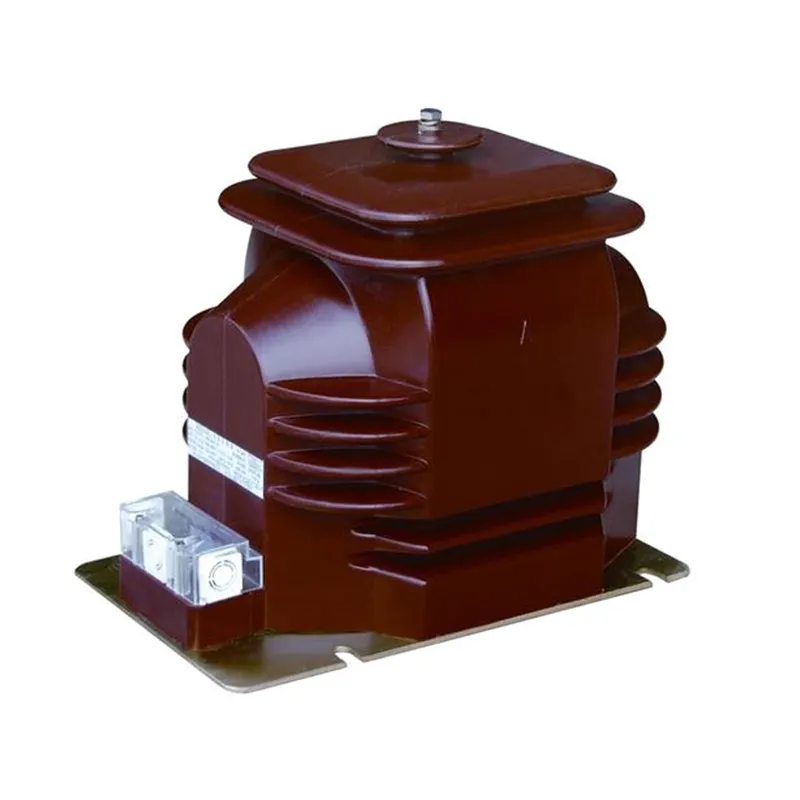

25 Kv Instrument Electromagnetic Pt Potential Transformer

Tips after purchasing a potential transformer:

1.Before commissioning, a 25 kv instrument electromagnetic pt potential transformer must undergo all tests and inspections as required by relevant standards and procedures. These typically include AC dielectric test, insulation resistance test, ratio test, and visual inspection.

2.Proper wiring of the 25 kv instrument electromagnetic pt potential transformer is essential. The primary winding should be connected in parallel with the measured circuit, while the secondary winding must be connected in parallel with the voltage coils of measuring instruments, protective relays, or automatic devices. Meanwhile, attention must be paid to maintaining correct polarity.

3.The load connected to the 25 kv potential transformer secondary must be within its rated capacity. Exceeding the rated secondary load can create increased measurement errors, even impact the accuracy of readings.

4.Short circuiting the 25 kv potential transformer secondary is strictly prohibited. Because the PT has very low internal impedance, a secondary short circuit can generate extremely high currents, potentially damaging secondary equipment and posing a serious safety hazard. To prevent such damage, fuses are necessary to be installed on the PT secondary. If it is feasible, primary side fuses should also be used to protect the high voltage network in case of faults in the primary winding or leads.

5.For the safety of personnel handling measuring instruments or relays, the PT secondary winding must be grounded at one point. It can prevent personal safety from high voltage appearing in instruments and relays when the insulation damaged between primary and secondary windings after the grounding.

6.Under no circumstances should the PT secondary circuit be short circuited.

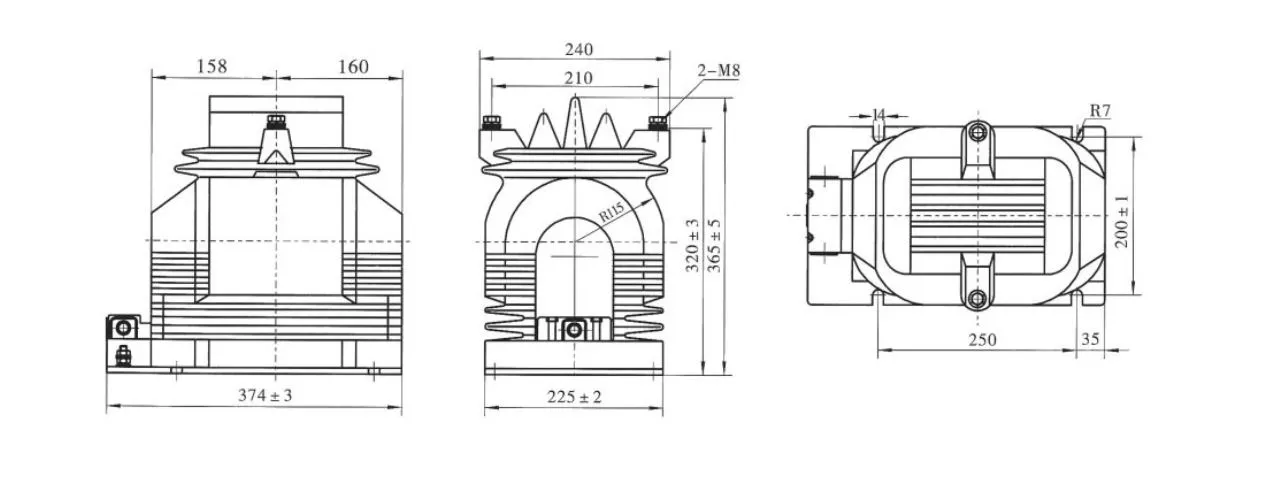

Technical Specification:

Product FAQ:

Q: What is the standard secondary voltage rating for a 25 kV instrument electromagnetic pt potential transformer?

A: The standard secondary voltage for a 25 kV instrument electromagnetic pt potential transformer is typically 110 V. This standardization ensures compatibility with metering and protection equipment, to allow for accurate voltage measurement and safe operation within the electrical power system.

Q: Can a 25 kV instrument electromagnetic pt potential transformer operate continuously at 115% of its rated voltage?

A: Yes, a 25 kV potential transformer is able to operate continuously at 115% of its rated voltage, as long as the secondary burden does not exceed the transformer's thermal rating. This capability allows for temporary over voltage conditions without to impact the integrity of PTs.

Q: What is the typical insulation class for a 25 kV instrument electromagnetic pt potential transformer?

A: A 25 kV potential transformer typically has an insulation class that allows it to withstand voltages up to 25 kV. The insulation system is designed to handle the electrical stresses encountered during normal and fault conditions, ensuring reliable operation and safety.
